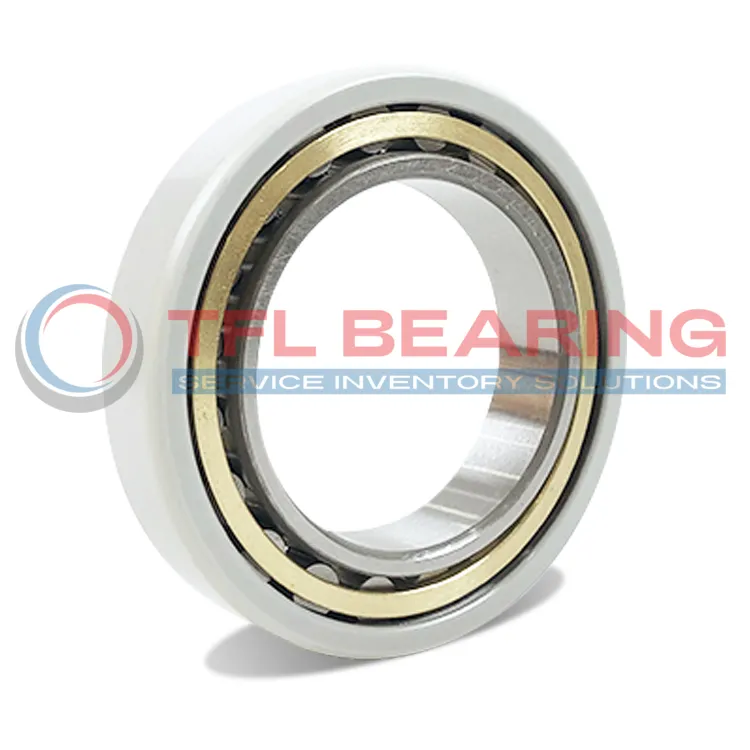

The SKF INSOCOAT cylindrical roller bearing is a compact unit measuring 100mm by 150mm by 24mm, with a robust construction that includes a machined brass cage. It supports substantial loads, with a dynamic rating of 134 kN and a static rating of 183 kN, and can operate at speeds up to 4000 RPM.
Its key feature is an insulating coating on the outer ring, which provides protection against electrical currents and helps prevent damage. This coating offers a breakdown voltage from 1000 to 3000 VDC and maintains high electrical resistance.
Designed with C3 radial internal clearance, it accommodates thermal expansion for reliable performance. Weighing 1.48 kg, it is compliant with RoHS and REACH standards, ensuring safe and durable use in various settings.
This bearing is well-suited for electric motors and industrial machinery where electrical insulation is necessary to avoid fluting and extend service life.
"*" indicates required fields
How Is NU 1020 M/C3VL0241 Bearing Engineered for Reliability?
NU 1020 M/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical damage in demanding applications.
This coating provides breakdown voltage protection from 1000 to 3000 VDC, ensuring reliable operation in electrically hazardous environments.
The machined brass cage maintains proper roller alignment, reducing wear and extending service life.
With a basic dynamic load rating of 134 kN, NU 1020 M/C3VL0241 Bearing handles heavy radial loads while maintaining consistent performance.
How Does NU 1020 M/C3VL0241 Bearing Improve Performance?
NU 1020 M/C3VL0241 Bearing works well in industrial equipment like large pumps and conveyor systems where electrical currents could cause damage. Its special insulation coating protects against electrical erosion, extending service life in demanding conditions.
In automotive applications, NU 1020 M/C3VL0241 Bearing handles high radial loads in electric vehicle motors and transmission systems. The brass cage provides excellent stability at higher operating temperatures common in modern vehicles.
For medical imaging devices and laboratory equipment, NU 1020 M/C3VL0241 Bearing offers reliable performance where electrical insulation is necessary. The consistent operation helps maintain precision in sensitive diagnostic machinery.
Within automation systems, NU 1020 M/C3VL0241 Bearing supports robotic arms and precision positioning equipment. The C3 clearance ensures proper operation despite temperature variations in automated environments.
