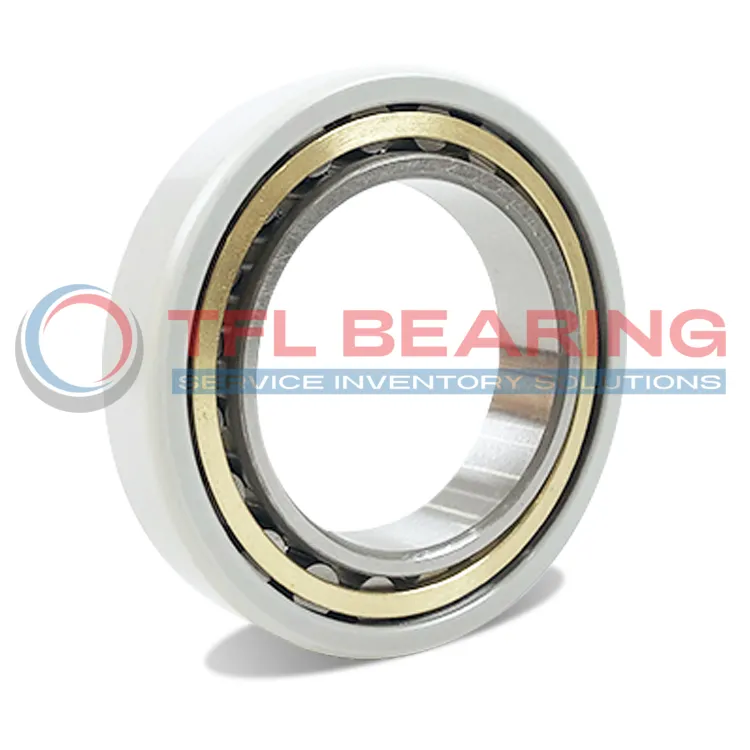

This SKF INSOCOAT cylindrical roller bearing measures 90mm in bore, 140mm outside, and 24mm wide, with a robust insulating coating on its outer ring. It handles dynamic loads up to 146 kN and spins smoothly at reference speeds of 4800 RPM.
The insulation coating provides protection against electrical currents, with a breakdown voltage from 1000 to 3000 VDC, reducing damage risks in electrical environments. Its machined brass cage offers durability and reliable performance under various conditions.
With a C3 radial internal clearance, it accommodates thermal expansion effectively. Weighing 1.35 kg, it’s compliant with RoHS and REACH standards, making it suitable for electric motors and industrial machinery where electrical insulation is essential.
"*" indicates required fields
How Does NU 1018 M/C3VL0241 Bearing Prevent Electrical Damage?
NU 1018 M/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical currents that can damage machinery.
This special coating provides breakdown voltage protection from 1000 to 3000 VDC, making it ideal for electric motor applications.
The bearing’s C3 radial internal clearance allows for thermal expansion, maintaining performance in varying temperature conditions.
With a basic dynamic load rating of 146 kN, it delivers reliable operation under substantial radial loads.
Common Applications of NU 1018 M/C3VL0241 Bearing
NU 1018 M/C3VL0241 Bearing works well in industrial equipment like large conveyor systems, where its cylindrical roller design handles substantial radial loads efficiently.
The insulation coating helps prevent electrical damage in machinery exposed to stray currents, extending service life in demanding settings.
In automotive applications, NU 1018 M/C3VL0241 Bearing fits into electric motor systems, supporting smooth rotation in components like transmission shafts.
Its C3 clearance accommodates thermal expansion during prolonged operation, maintaining performance across various driving conditions.
For medical imaging devices, NU 1018 M/C3VL0241 Bearing’s brass cage and insulated outer ring provide reliable operation in sensitive diagnostic equipment.
The consistent electrical resistance minimises interference risks, which is important for maintaining accurate readings in clinical environments.
Within automation systems, NU 1018 M/C3VL0241 Bearing supports robotic arm joints, where its dimensional stability ensures precise movement control.
The high dynamic load rating allows it to withstand repeated motion cycles in automated production lines.
