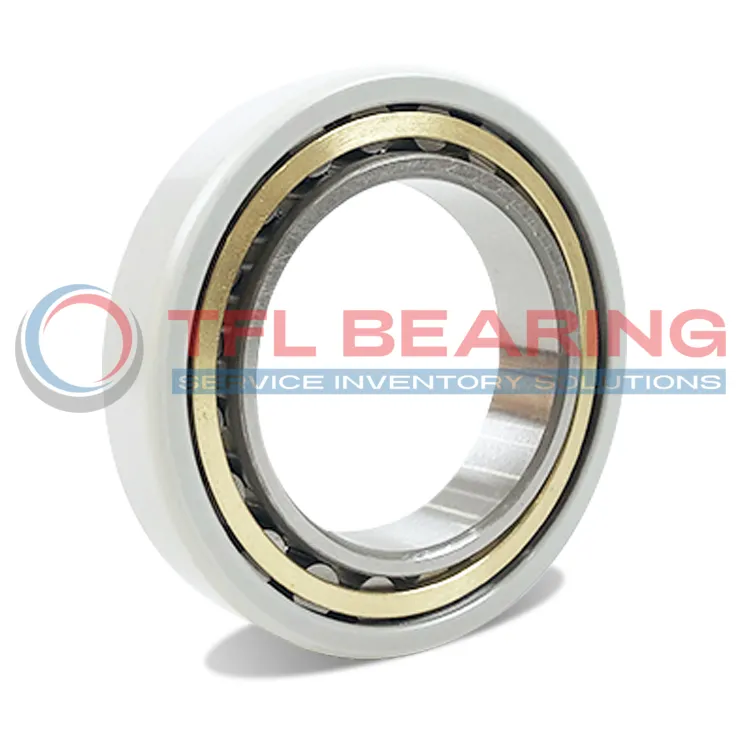

The SKF INSOCOAT NU 1017 M/C3VL0241 is a cylindrical roller bearing with dimensions of 100mm bore, 215mm outer diameter, and 47mm width. It features an insulating coating on the outer ring to prevent electrical damage.
With a dynamic load rating of 450kN and static load rating of 440kN, it handles heavy radial loads smoothly. The machined brass cage ensures durability, while the C3 clearance allows for thermal expansion.
The insulation coating provides breakdown voltage protection up to 3000VDC, making it ideal for electric motors or generators. Its reference speed of 3800r/min suits high-speed applications.
Weighing 1.1kg, this RoHS and REACH compliant bearing offers reliable performance in electrically challenging environments. Perfect for industries where electrical currents could damage standard bearings.
"*" indicates required fields
Performance Features of NU 1017 M/C3VL0241 Bearing
NU 1017 M/C3VL0241 Bearing is designed with an insulating coating on the outer ring, preventing electrical erosion in high-voltage environments.
The coating provides a breakdown voltage of 1000-3000 VDC, ensuring reliable operation in electrically charged applications.
With a basic dynamic load rating of 450 kN, NU 1017 M/C3VL0241 Bearing handles heavy radial loads efficiently.
Its machined brass cage enhances durability and maintains proper roller alignment under stress.
The C3 radial internal clearance allows for thermal expansion, making NU 1017 M/C3VL0241 Bearing suitable for high-speed applications up to 3800 r/min.
This design ensures smooth performance even in demanding industrial settings.
NU 1017 M/C3VL0241 Bearing’s insulation coating has a minimum electrical resistance of 50MΩ, reducing the risk of current passage.
This feature makes it ideal for use in electric motors and generators.

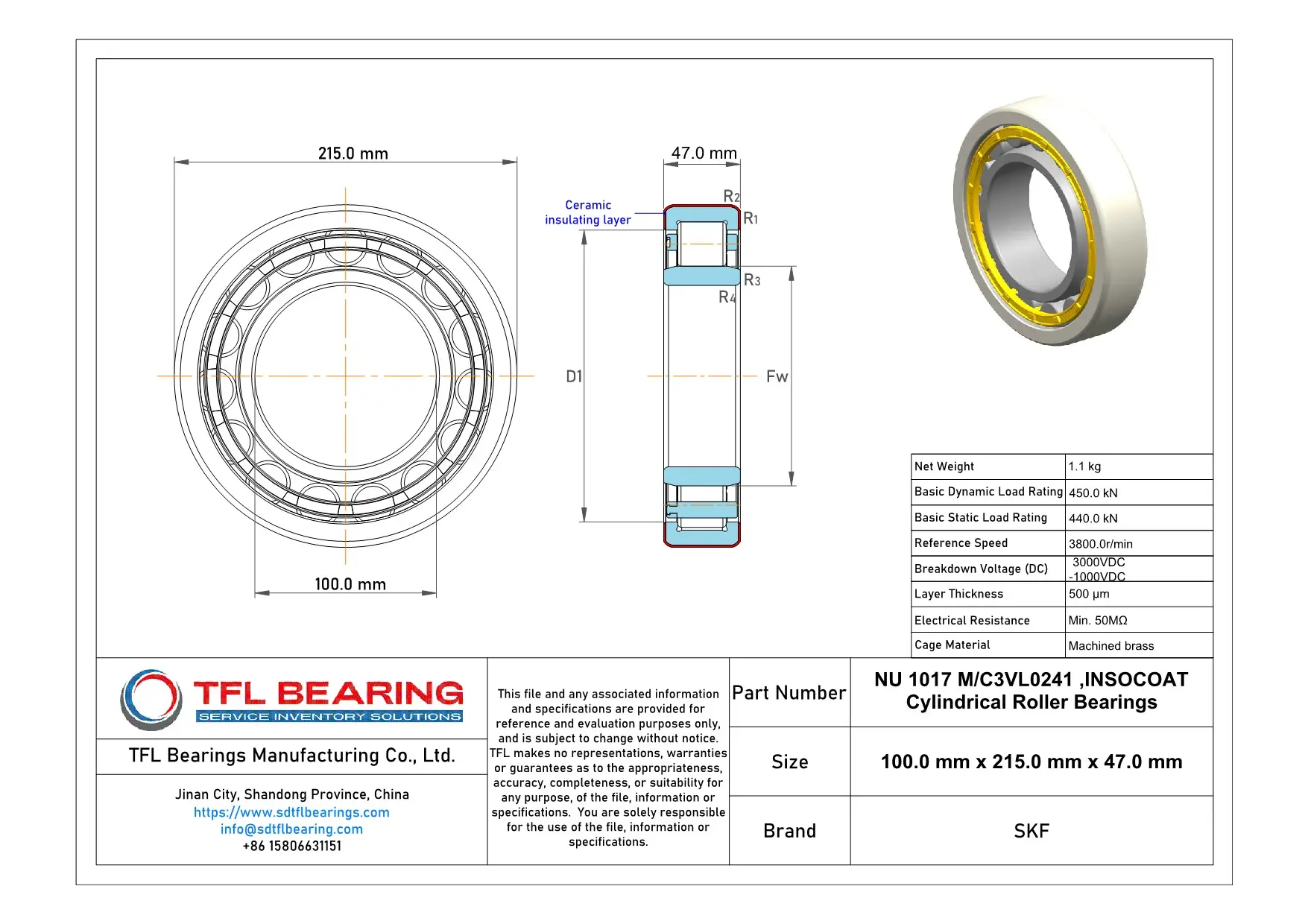

The bearing’s dimensions (100x215x47 mm) and weight (1.1 kg) provide a balance between strength and compact design.
Its compliance with ROHS and REACH standards ensures environmental and safety regulations are met.
Industrial Uses of NU 1017 M/C3VL0241 Bearing
NU 1017 M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even under high radial loads.
In conveyor systems, NU 1017 M/C3VL0241 Bearing handles heavy loads efficiently, thanks to its C3 clearance and robust construction. Its 1000 VDC breakdown voltage makes it suitable for industrial environments with electrical interference.
For wind turbine applications, NU 1017 M/C3VL0241 Bearing’s high dynamic load rating of 450 kN ensures reliability in demanding conditions. The insulation coating also protects against electrical pitting, extending service life.
Where Is NU 1017 M/C3VL0241 Bearing Used?
NU 1017 M/C3VL0241 Bearing is ideal for railway traction motors, where its insulation properties prevent damage from electrical currents. The machined brass cage provides excellent durability in high-vibration environments.
In mining equipment, NU 1017 M/C3VL0241 Bearing’s high static load rating of 440 kN supports heavy machinery components. Its C3 clearance accommodates thermal expansion, ensuring consistent performance.
Perfect Fit for Automation: NU 1017 M/C3VL0241 Bearing
NU 1017 M/C3VL0241 Bearing works well in robotic arms, where its precision and insulation properties are crucial. The cylindrical roller design ensures smooth movement under varying loads.
For printing machinery, NU 1017 M/C3VL0241 Bearing’s high reference speed of 3800 r/min maintains accuracy during fast operations. The insulation coating also protects against static electricity buildup.
Medical vs Industrial: Where NU 1017 M/C3VL0241 Bearing Excels
NU 1017 M/C3VL0241 Bearing is suitable for industrial MRI machines, where electrical insulation is essential. Its high resistance of 50MΩ prevents interference with sensitive medical imaging.
In food processing equipment, NU 1017 M/C3VL0241 Bearing’s robust design handles wet and corrosive environments. The brass cage resists wear, even with frequent cleaning cycles.
