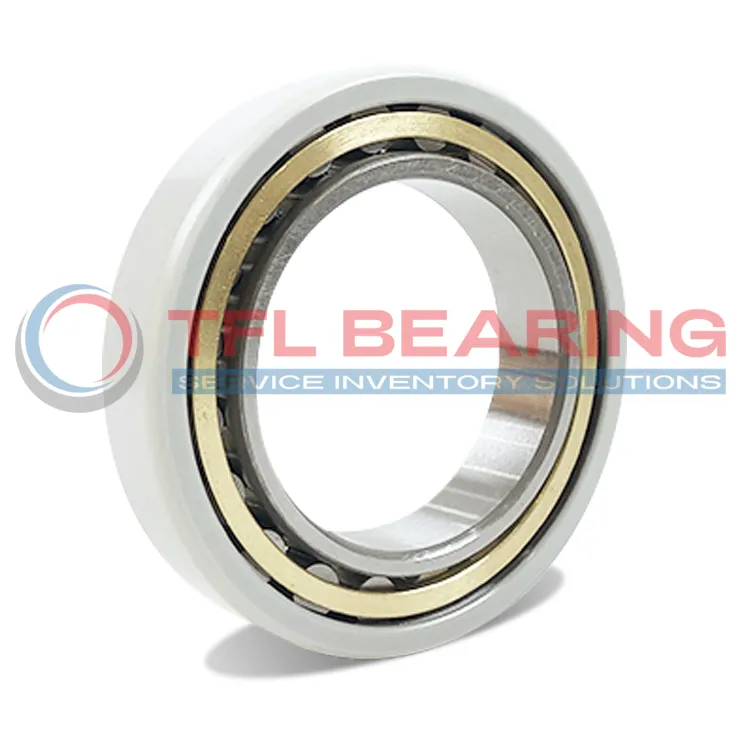

The SKF INSOCOAT cylindrical roller bearing measures 75mm by 115mm by 20mm, with a robust construction and an insulating coating on the outer ring. It handles dynamic loads up to 255 kN and static loads up to 265 kN.
This bearing spins smoothly at reference speeds up to 4800 RPM. Its C3 radial internal clearance allows for thermal expansion, making it reliable in varying conditions.
The insulation coating protects against electric currents, with a breakdown voltage from 1000 to 3000 VDC. This helps prevent damage in electrically noisy environments.
Ideal for electric motors or generators, it suits applications where electrical insulation is needed. Weighing 0.75kg, it’s compliant with RoHS and REACH standards.
"*" indicates required fields
How Does NU 1015 M/C3VL0241 Bearing Resist Wear?
NU 1015 M/C3VL0241 Bearing features a machined brass cage that maintains proper roller alignment during operation.
This construction significantly reduces internal friction and prevents premature wear.
The bearing’s C3 radial internal clearance accommodates thermal expansion in various operating conditions.
This design feature ensures consistent performance while extending service life.
With a basic dynamic load rating of 255 kN, NU 1015 M/C3VL0241 Bearing handles substantial radial loads effectively.
Its robust construction maintains reliability across numerous industrial applications.
The insulation coating provides electrical resistance while the brass cage offers excellent durability.
These combined features make maintenance straightforward and cost-effective.
Common Applications of NU 1015 M/C3VL0241 Bearing
NU 1015 M/C3VL0241 Bearing works well in industrial machinery like machine tools and conveyor systems, where its cylindrical roller design handles radial loads effectively.
The insulation coating helps prevent electrical damage in motors or generators, making NU 1015 M/C3VL0241 Bearing suitable for electrically noisy environments.
How Does NU 1015 M/C3VL0241 Bearing Support High-Speed Operations?
In automotive applications such as gearboxes or electric motors, NU 1015 M/C3VL0241 Bearing maintains stability at high speeds due to its C3 clearance.
The machined brass cage reduces friction, which helps extend the service life in demanding conditions.
Built for Heavy-Duty Use: NU 1015 M/C3VL0241 Bearing
NU 1015 M/C3VL0241 Bearing is often used in automation equipment like robotic arms, where precise movement is needed.
Its insulation properties make it a good fit for medical imaging devices, ensuring reliable performance without electrical interference.
Light-Duty vs Heavy-Duty: Best Uses for NU 1015 M/C3VL0241 Bearing
For consumer appliances such as printers or fans, NU 1015 M/C3VL0241 Bearing offers quiet operation and durability.
In heavier industrial settings, the high dynamic load rating allows NU 1015 M/C3VL0241 Bearing to handle continuous use without issue.
