SKF INSOCOAT Cylindrical Roller Bearings NU 1014 ECM/C3VL0241
SKF INSOCOAT Cylindrical Roller Bearings NU 1014 ECM/C3VL0241

SKF INSOCOAT Cylindrical Roller Bearings NU 1014 ECM/C3VL0241

The SKF INSOCOAT NU 1014 ECM/C3VL0241 is a cylindrical roller bearing with a 90mm bore and 190mm outer diameter, designed for heavy-duty applications. Its outer ring features an insulating coating to prevent electrical damage, making it ideal for electric motors.

With a dynamic load rating of 365 kN and a static load rating of 360 kN, it handles high loads efficiently. The bearing can reach speeds up to 4500 RPM, ensuring smooth operation in demanding conditions.

The machined brass cage enhances durability, while the C3 radial clearance allows for thermal expansion. The insulation coating provides a breakdown voltage of 1000-3000 VDC and a minimum resistance of 50MΩ.

This bearing is perfect for use in electric motors, generators, or other equipment where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications. Weighing 0.69kg, it balances strength and practicality.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

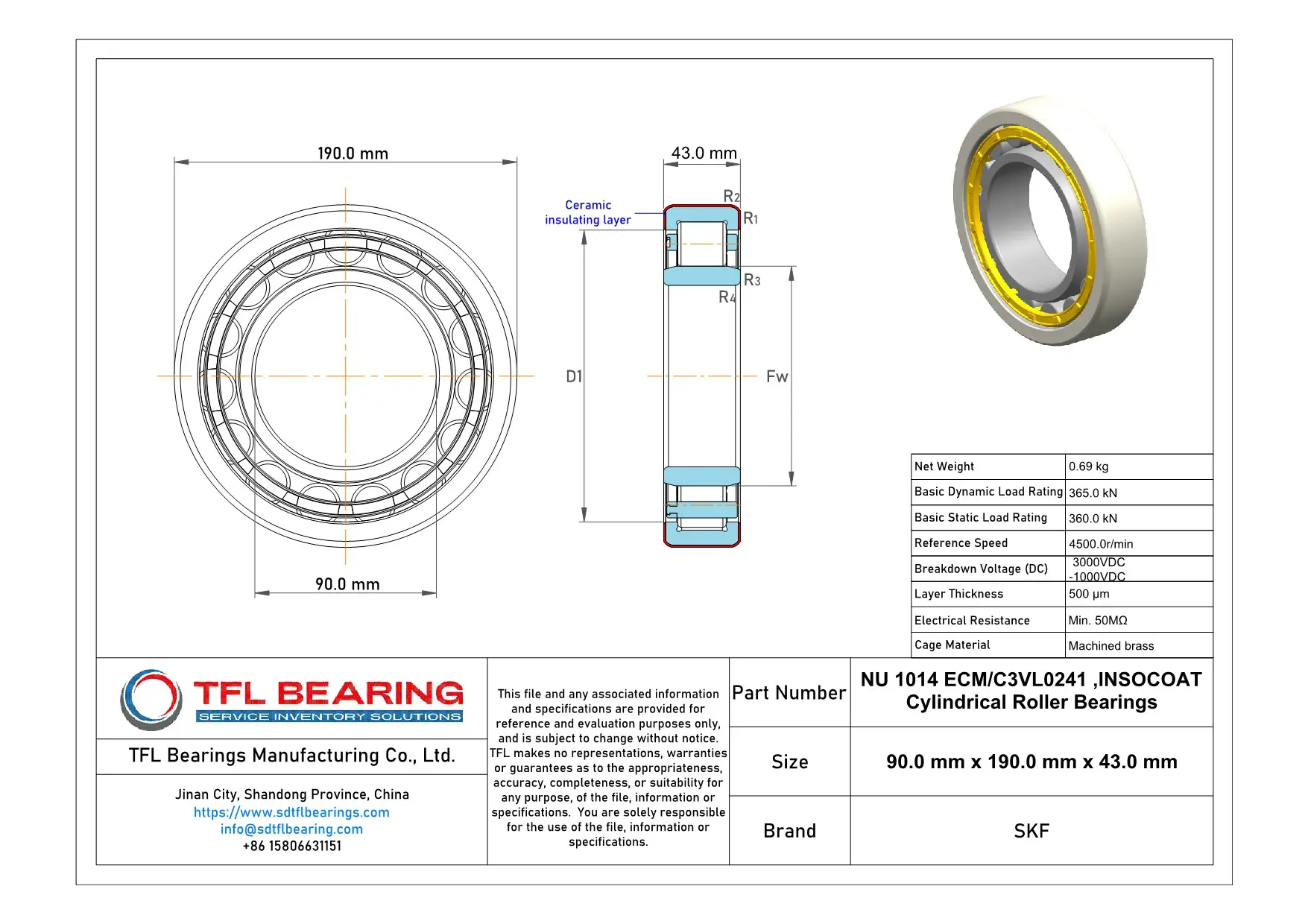

Product Parameters

  • Model NU 1014 ECM/C3VL0241
  • Product Category INSOCOAT Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 90.0 mm
  • Outside Diameter 190.0 mm
  • Width 43.0 mm
  • Net Weight 0.69 kg
  • Basic Dynamic Load Rating 365.0 kN
  • Basic Static Load Rating 360.0 kN
  • Reference Speed 4500.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Machined brass
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

Features

How Does NU 1014 ECM/C3VL0241 Bearing Resist Wear?

NU 1014 ECM/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical damage.
The machined brass cage enhances durability, ensuring smooth operation under heavy loads.

With a basic dynamic load rating of 365.0 kN, it handles high-stress applications effectively.
Its breakdown voltage ranges from 1000 VDC to 3000 VDC, making it suitable for electrically demanding environments.

The C3 radial internal clearance allows for thermal expansion, maintaining performance in varying conditions.
NU 1014 ECM/C3VL0241 Bearing’s design ensures long service life with minimal maintenance.

Application

Industrial Uses of NU 1014 ECM/C3VL0241 Bearing
NU 1014 ECM/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends service life. The machined brass cage ensures smooth operation even under high radial loads.

In automation systems, NU 1014 ECM/C3VL0241 Bearing supports conveyor rollers and robotic arms, thanks to its C3 clearance for thermal expansion. Its high dynamic load rating makes it reliable for continuous operation.

For wind turbine applications, NU 1014 ECM/C3VL0241 Bearing’s insulation coating protects against stray currents, while its robust design handles variable loads. The breakdown voltage rating ensures safety in high-voltage environments.

Where Is NU 1014 ECM/C3VL0241 Bearing Used?
NU 1014 ECM/C3VL0241 Bearing fits well in industrial pumps, where its cylindrical rollers manage heavy radial forces. The VL0241 coating suffix indicates superior insulation for electrical applications.

In railway traction motors, NU 1014 ECM/C3VL0241 Bearing’s durability and insulation properties are key. Its 360 kN static load rating ensures stability under demanding conditions.

Built for Heavy-Duty Use: NU 1014 ECM/C3VL0241 Bearing
NU 1014 ECM/C3VL0241 Bearing excels in steel mill equipment, withstanding high temperatures and heavy loads. The brass cage material resists wear in harsh environments.

For mining machinery, NU 1014 ECM/C3VL0241 Bearing’s C3 clearance accommodates shaft misalignment. Its 4500 r/min reference speed suits high-speed applications.

Automotive vs Aerospace: Applications of NU 1014 ECM/C3VL0241 Bearing
In automotive drivetrains, NU 1014 ECM/C3VL0241 Bearing handles radial loads in gearboxes. Its insulation coating is less critical here but adds durability.

For aerospace actuators, NU 1014 ECM/C3VL0241 Bearing’s precision and insulation are vital. The 500 µm coating thickness ensures reliable performance in avionics.
