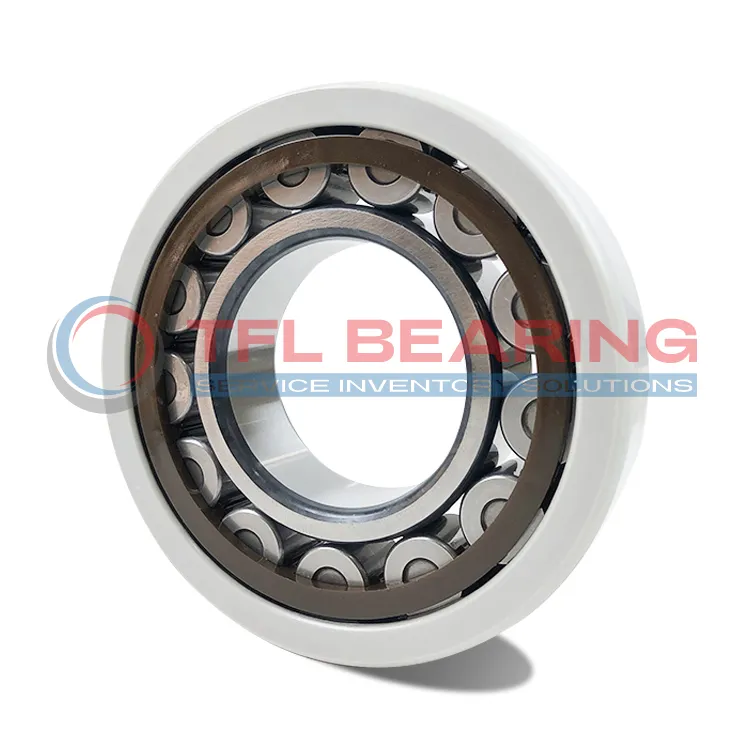

The SKF INSOCOAT NU 1013 ECP/C3VL0241 is a cylindrical roller bearing with a 90mm bore and 140mm outer diameter, featuring an insulating coating on the outer ring. It handles dynamic loads up to 80.9 kN and spins smoothly at speeds up to 5600 RPM.
The nylon cage reduces friction and noise, while the C3 radial clearance allows for thermal expansion in demanding conditions. The insulation coating prevents electrical arcing, with a breakdown voltage of 1000-3000 VDC.
This bearing is ideal for electric motors or generators where electrical insulation is needed. Its compact 24mm width and 0.45kg weight make it easy to fit in tight spaces.
Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications requiring both mechanical and electrical performance.
"*" indicates required fields
How Does NU 1013 ECP/C3VL0241 Bearing Resist Electrical Currents?
NU 1013 ECP/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical currents from damaging the bearing.
The coating provides a breakdown voltage of up to 3000 VDC, ensuring reliable performance in electrically active environments.
Its nylon cage enhances durability while maintaining smooth operation under high speeds.
With a basic dynamic load rating of 80.9 kN, it handles heavy radial loads efficiently.
Engineered for Precision: NU 1013 ECP/C3VL0241 Bearing
NU 1013 ECP/C3VL0241 Bearing is designed for high-speed applications, with a reference speed of 5600 r/min.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varying operating conditions.
Its insulation coating ensures minimal electrical resistance, protecting against stray currents.
The lightweight design at 0.45 kg makes it easy to handle without compromising strength.
What Makes NU 1013 ECP/C3VL0241 Bearing Suitable for High-Temperature Applications?
NU 1013 ECP/C3VL0241 Bearing’s insulation coating withstands high temperatures, maintaining performance in demanding environments.
The nylon cage material resists heat, ensuring stability even under continuous operation.
With a basic static load rating of 104.0 kN, it provides reliable support for heavy machinery.
Its compact width of 24.0 mm allows for easy integration into various industrial setups.
Industrial Uses of NU 1013 ECP/C3VL0241 Bearing
NU 1013 ECP/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The C3 clearance ensures reliable performance even under thermal expansion.
In automation systems, NU 1013 ECP/C3VL0241 Bearing supports high-speed operations in robotic arms and conveyor belts. Its nylon cage reduces friction, making it energy-efficient for continuous use.
For wind turbine applications, NU 1013 ECP/C3VL0241 Bearing handles heavy radial loads while maintaining electrical insulation. The VL0241 coating provides consistent protection against voltage spikes in harsh environments.
NU 1013 ECP/C3VL0241 Bearing is also found in medical imaging devices, where smooth rotation and electrical safety are critical. The 1000-3000 VDC breakdown voltage ensures patient and equipment safety.
In industrial pumps, NU 1013 ECP/C3VL0241 Bearing offers durability and resistance to electrical arcing. Its 80.9 kN dynamic load rating makes it suitable for demanding fluid handling systems.
