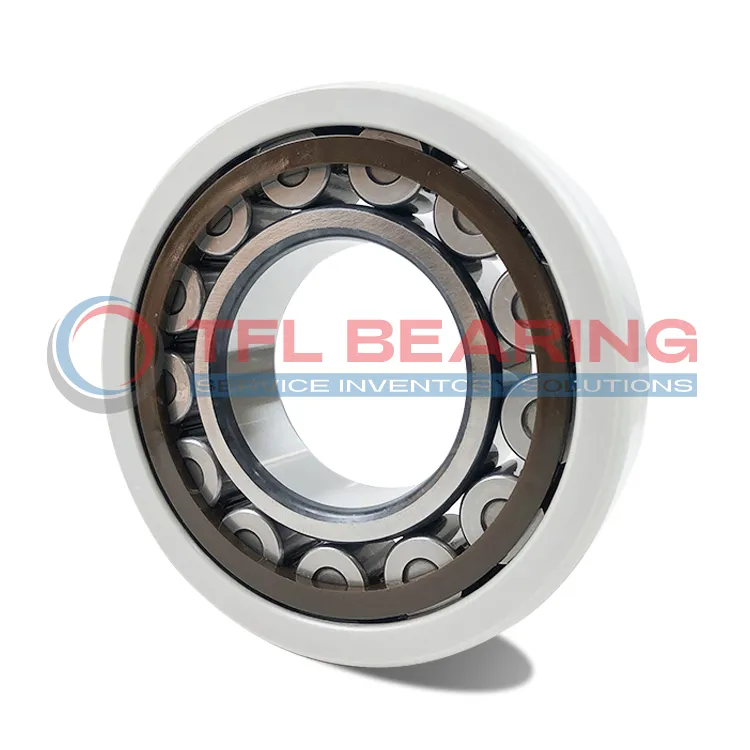

The SKF INSOCOAT NU 1010 ECP/C3VL0241 is a cylindrical roller bearing with a 75mm bore and 160mm outer diameter, designed for heavy-duty applications. Its outer ring features an insulating coating to prevent electrical damage, making it ideal for electric motors.
With a dynamic load rating of 280kN and a static load rating of 265kN, it handles high loads efficiently. The bearing can reach speeds up to 5300 RPM, ensuring smooth operation in demanding conditions.
The nylon cage reduces friction and wear, while the C3 radial clearance allows for thermal expansion. The insulation coating provides a breakdown voltage of 1000-3000 VDC and a minimum resistance of 50MΩ.
This bearing is perfect for use in electric motors, generators, or other equipment where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications. Weighing just 0.27kg, it’s lightweight yet durable.
"*" indicates required fields
How Is NU 1010 ECP/C3VL0241 Bearing Engineered for Reliability?
NU 1010 ECP/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
Its breakdown voltage ranges from 1000 to 3000 VDC, making it suitable for electric motor applications.
The nylon cage ensures smooth operation and reduces friction, enhancing performance.
With a basic dynamic load rating of 280 kN, it handles heavy loads efficiently.
What Makes NU 1010 ECP/C3VL0241 Bearing Suitable for High-Temperature Applications?
NU 1010 ECP/C3VL0241 Bearing’s insulation coating withstands high temperatures, maintaining performance in demanding conditions.
The C3 radial internal clearance allows for thermal expansion, ensuring reliable operation.
Its reference speed of 5300 r/min makes it ideal for high-speed applications.
The bearing’s robust design and materials ensure durability even under stress.
Built for Reliability: NU 1010 ECP/C3VL0241 Bearing
NU 1010 ECP/C3VL0241 Bearing is designed with a nylon cage, reducing noise and vibration.
Its insulation coating provides electrical resistance, preventing damage from stray currents.
The bearing’s basic static load rating of 265 kN ensures stability under heavy loads.
With a layer thickness of 500 µm, it offers long-lasting protection and performance.
Steel vs Ceramic Bearings: Strengths of NU 1010 ECP/C3VL0241 Bearing
NU 1010 ECP/C3VL0241 Bearing uses high-quality materials, including an insulated outer ring for electrical protection.
Its nylon cage reduces friction and wear, enhancing longevity.
The bearing’s dynamic load rating of 280 kN ensures reliable performance in various applications.
With compliance to ROHS and REACH standards, it meets environmental and safety requirements.
Industrial Uses of NU 1010 ECP/C3VL0241 Bearing
NU 1010 ECP/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The C3 clearance ensures reliable performance even under thermal expansion.
In automation systems, NU 1010 ECP/C3VL0241 Bearing supports high-speed conveyor belts and robotic arms, thanks to its nylon cage reducing friction. Its breakdown voltage rating makes it safe for electrically noisy environments.
For wind turbine applications, NU 1010 ECP/C3VL0241 Bearing handles radial loads efficiently while resisting electrical corrosion. The 280 kN dynamic load rating ensures durability in these demanding conditions.
What Makes NU 1010 ECP/C3VL0241 Bearing a Preferred Choice?
NU 1010 ECP/C3VL0241 Bearing works well in industrial pumps, where its insulation protects against shaft currents. The 5300 r/min reference speed allows for smooth operation in continuous duty cycles.
In railway traction motors, NU 1010 ECP/C3VL0241 Bearing’s robust design copes with vibration and variable loads. The VL0241 coating provides consistent insulation throughout the bearing’s service life.
Built for Heavy-Duty Use: NU 1010 ECP/C3VL0241 Bearing
NU 1010 ECP/C3VL0241 Bearing fits perfectly in steel mill equipment, where high temperatures and heavy loads are common. Its 265 kN static load rating ensures stability during sudden load changes.
For food processing machinery, NU 1010 ECP/C3VL0241 Bearing offers reliable performance while meeting hygiene standards. The nylon cage material is resistant to cleaning chemicals and moisture.
Light-Duty vs Heavy-Duty: Best Uses for NU 1010 ECP/C3VL0241 Bearing
NU 1010 ECP/C3VL0241 Bearing serves well in both light-duty HVAC fans and heavy-duty compressor applications. The insulation works equally effectively in both scenarios.
In printing machinery, NU 1010 ECP/C3VL0241 Bearing maintains precision at various speeds. Its 37mm width provides the necessary stability for rotating cylinders.
