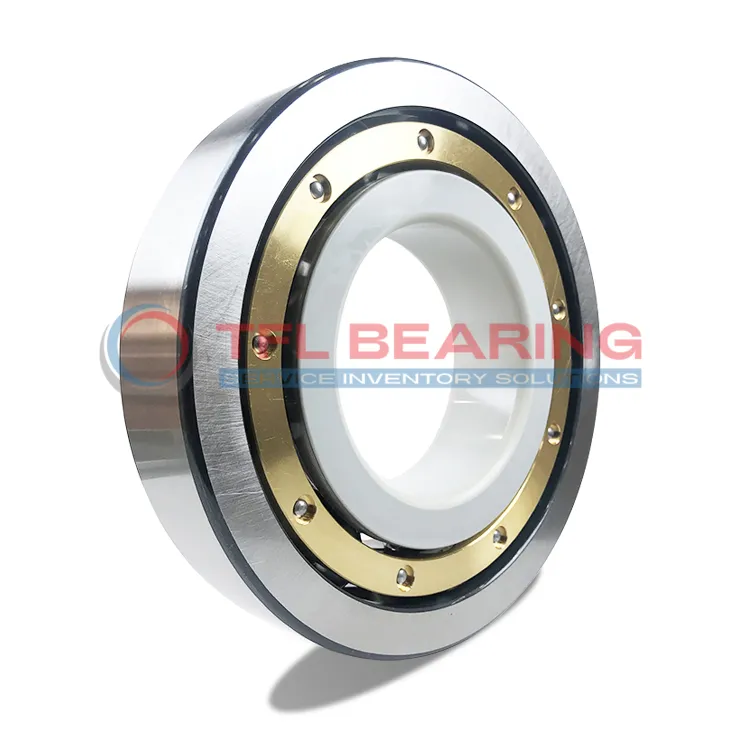

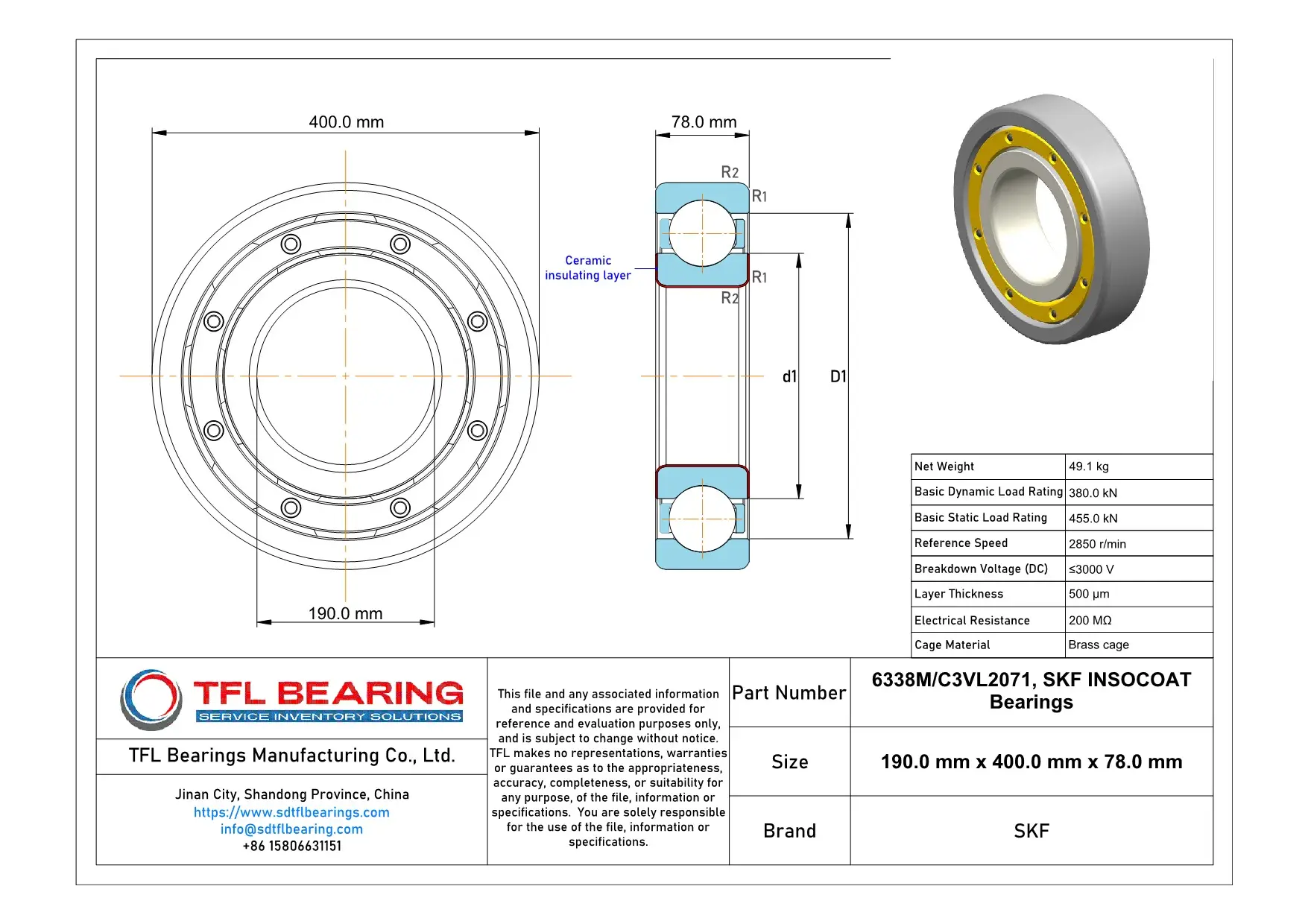

The SKF INSOCOAT bearing 6338M/C3VL2071 is a robust unit with a 190mm bore and 400mm outer diameter, designed for heavy-duty applications. Its inner ring features a 500µm insulating coating, providing protection against electrical currents.
With a dynamic load rating of 380kN and static load rating of 455kN, it handles substantial weights while maintaining smooth operation. The brass cage ensures durability, and it can reach speeds up to 2850 RPM.
The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. Its insulation can withstand up to 3000V, ideal for electric motors or generators.
Weighing 49.1kg, this bearing is built for industrial machinery where electrical insulation and heavy loads are key concerns. It meets ROHS standards for environmental safety.
"*" indicates required fields
How Is 6338M/C3VL2071 Bearing Engineered for Reliability?
6338M/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
The brass cage ensures smooth operation and reduces friction, even at high speeds up to 2850 r/min.
With a basic dynamic load rating of 380 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, enhancing durability.
Its breakdown voltage of ≤3000 V makes it suitable for electrically demanding environments.
The coating thickness of 500 µm ensures long-term insulation performance.
Industrial Uses of 6338M/C3VL2071 Bearing
The 6338M/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical arcing. This makes it a reliable choice for industries dealing with high-voltage equipment.
In wind turbine applications, 6338M/C3VL2071 Bearing handles heavy radial loads while maintaining electrical insulation. Its brass cage ensures smooth operation even in demanding environmental conditions.
For railway traction systems, 6338M/C3VL2071 Bearing offers durability and electrical resistance, crucial for preventing current-induced damage. The C3 radial clearance allows for thermal expansion during prolonged use.
Where Is 6338M/C3VL2071 Bearing Used?
You’ll often find 6338M/C3VL2071 Bearing in industrial pumps, where its insulation properties protect against stray currents. The high dynamic load rating ensures long service life in continuous operation.
In metal processing machinery, 6338M/C3VL2071 Bearing withstands both heavy loads and electrical challenges. Its 500 µm coating thickness provides consistent insulation performance over time.
Built for Heavy-Duty Use: 6338M/C3VL2071 Bearing
The 6338M/C3VL2071 Bearing excels in mining equipment, where dust and moisture are common. Its VL2071 coating maintains electrical resistance even in harsh conditions.
For paper mill machinery, 6338M/C3VL2071 Bearing resists both mechanical stress and electrical corrosion. The 400 mm outer diameter provides stable support for large rotating components.
Automotive vs Aerospace: Applications of 6338M/C3VL2071 Bearing
In electric vehicle drivetrains, 6338M/C3VL2071 Bearing prevents motor current leakage while handling road vibrations. Its 2850 r/min speed rating suits high-performance applications.
For aircraft ground power units, 6338M/C3VL2071 Bearing offers electrical safety alongside mechanical reliability. The 455 kN static load rating ensures safety in critical systems.
