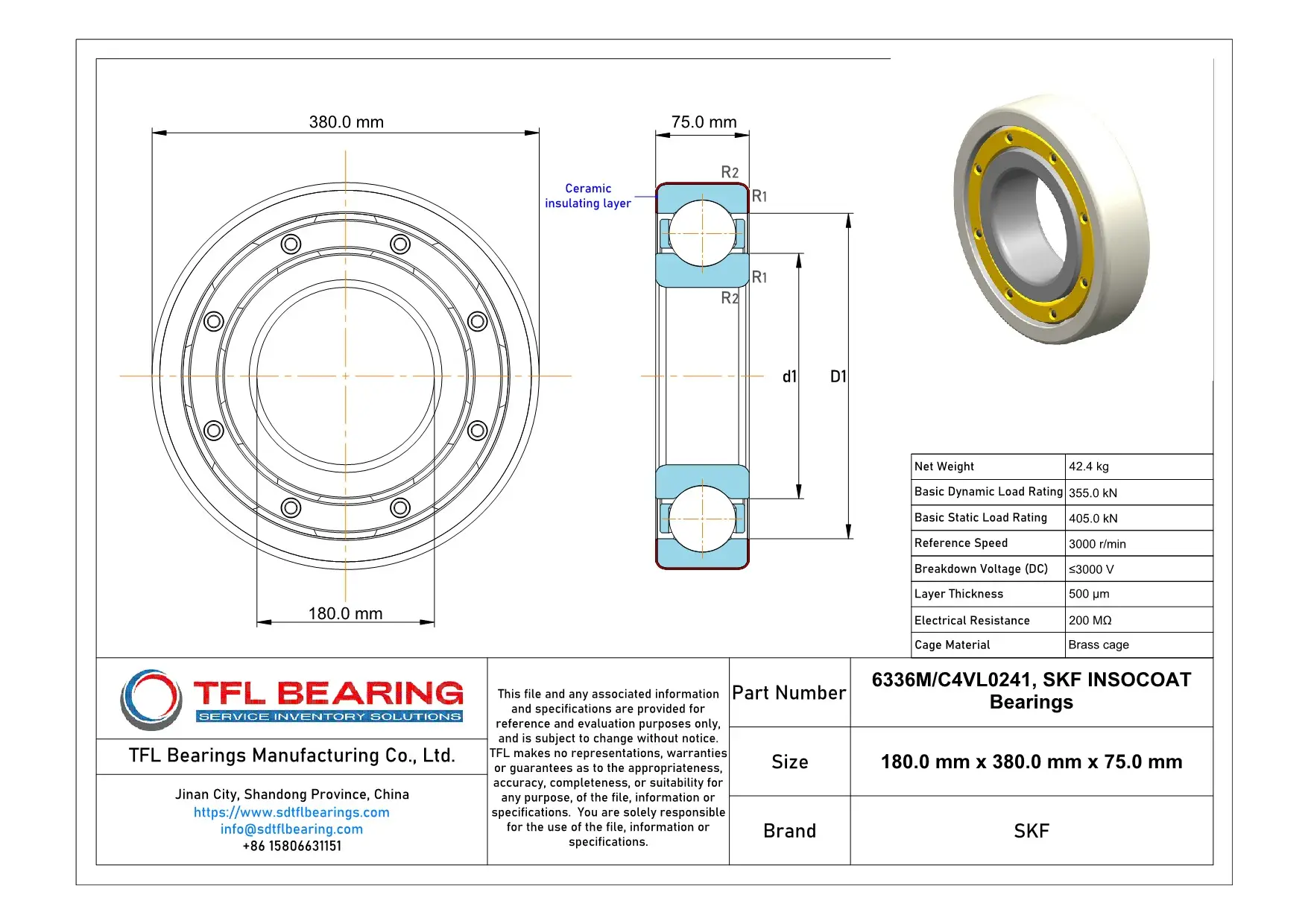

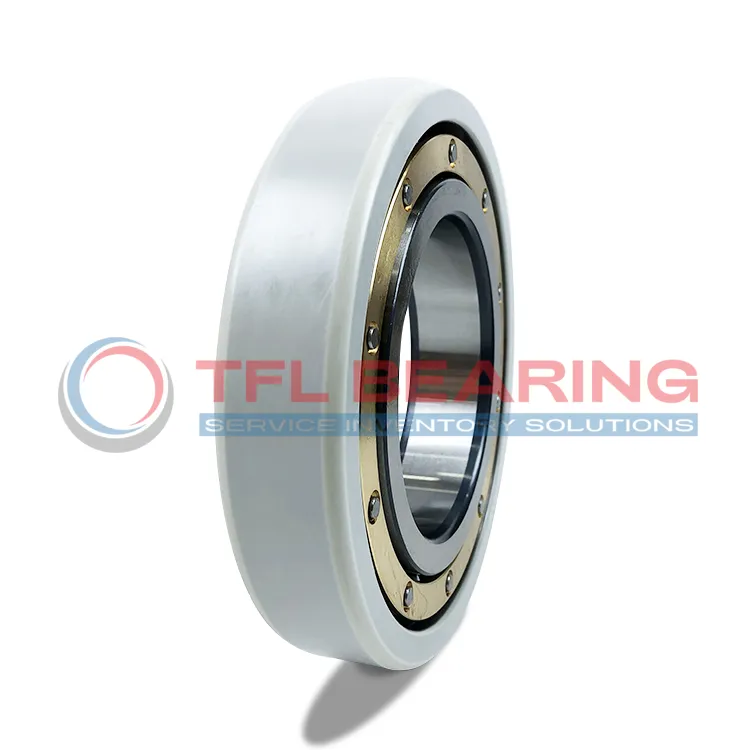

The SKF INSOCOAT bearing 6336M/C4VL0241 is a robust unit measuring 180mm by 380mm by 75mm, designed for heavy-duty applications. It features an insulating coating on the outer ring, providing protection against electrical currents.
With a dynamic load rating of 355 kN and a static load rating of 405 kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 3000 RPM.
The insulation coating offers a breakdown voltage of up to 3000 V and an electrical resistance of 200 MΩ, making it ideal for electric motors or generators. Its C4 radial internal clearance allows for thermal expansion in demanding conditions.
Weighing 42.4 kg, this bearing is both sturdy and reliable. It complies with ROHS standards, ensuring safe use in various industrial settings. Perfect for applications where electrical insulation is crucial.
"*" indicates required fields
Performance Features of 6336M/C4VL0241 Bearing
6336M/C4VL0241 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
Its breakdown voltage of up to 3000 V ensures reliable operation in electrically demanding applications.
The brass cage design enhances durability and maintains smooth performance under high loads.
With a basic dynamic load rating of 355 kN, it handles heavy-duty applications with ease.
6336M/C4VL0241 Bearing’s C4 radial internal clearance allows for thermal expansion in high-speed operations.
Its reference speed of 3000 r/min makes it suitable for fast-moving machinery.
The insulation coating provides an electrical resistance of 200 MΩ, reducing the risk of current passage.
This makes 6336M/C4VL0241 Bearing ideal for use in electric motors and generators.
Key Fields for 6336M/C4VL0241 Bearing
In industrial settings, 6336M/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage. The brass cage ensures smooth rotation even under heavy loads.
Where Is 6336M/C4VL0241 Bearing Used?
You’ll often find 6336M/C4VL0241 Bearing in wind turbines, where its high dynamic load rating handles the demanding conditions. The C4 clearance makes it suitable for applications with thermal expansion.
Built for Heavy-Duty Use: 6336M/C4VL0241 Bearing
This bearing works well in large pumps and compressors, thanks to its robust construction. The insulation coating adds an extra layer of protection against electrical currents.
Automotive vs Aerospace: Applications of 6336M/C4VL0241 Bearing
While not typically used in cars, 6336M/C4VL0241 Bearing excels in aerospace ground support equipment. Its high reference speed suits applications requiring rapid movement.
Perfect Fit for Automation: 6336M/C4VL0241 Bearing
In automated production lines, 6336M/C4VL0241 Bearing’s reliability keeps systems running smoothly. The 500 µm coating thickness provides consistent insulation over time.
