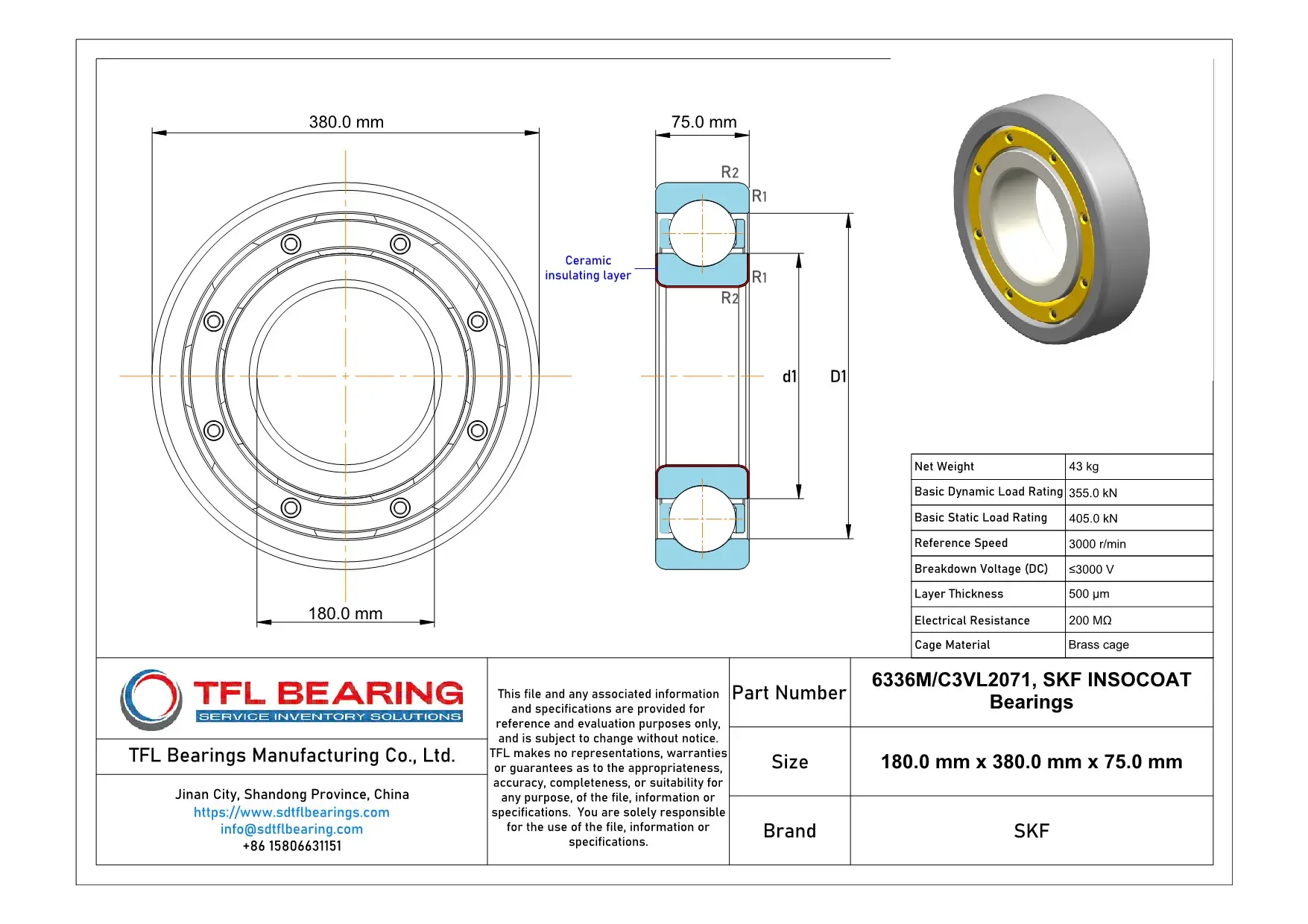

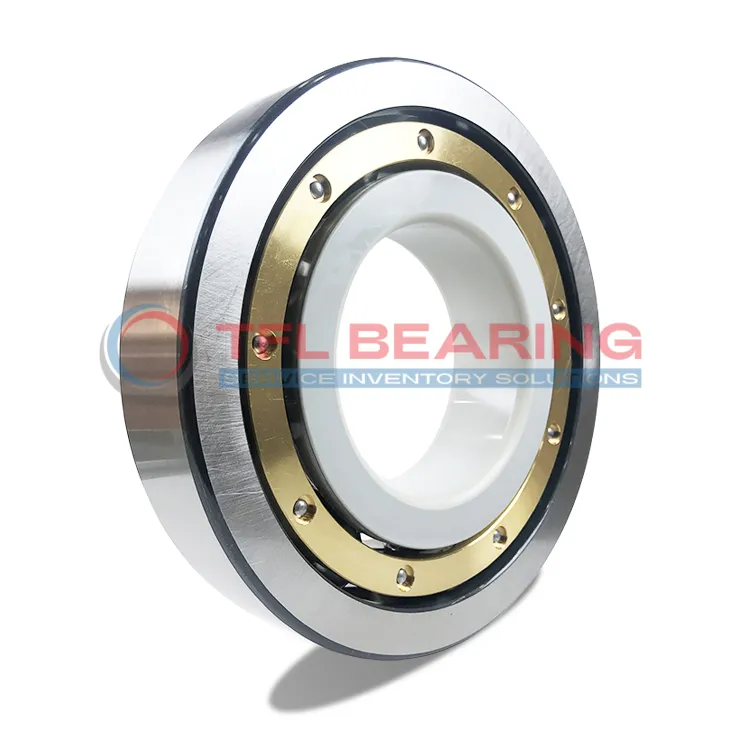

The SKF INSOCOAT 6336M/C3VL2071 is a robust bearing with a 180mm bore and 380mm outer diameter, designed for heavy-duty applications. Its inner ring features a 500µm insulating coating, providing electrical resistance up to 200 MΩ.
With a dynamic load rating of 355 kN and a static load rating of 405 kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 3000 r/min.
The C3 radial clearance allows for thermal expansion, making it suitable for variable temperatures. The VL2071 coating prevents electrical arcing, ideal for electric motors or generators.
Weighing 43 kg, this RoHS-compliant bearing is a reliable choice for industrial machinery requiring insulation against electric currents.
"*" indicates required fields
Performance Features of 6336M/C3VL2071 Bearing
6336M/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.
The brass cage enhances durability and maintains ball alignment under high-speed conditions.
With a basic dynamic load rating of 355.0 kN, it handles heavy loads efficiently.
6336M/C3VL2071 Bearing’s C3 radial internal clearance allows for thermal expansion in demanding applications.
Its breakdown voltage of ≤3000 V makes it suitable for electrically challenging environments.
The coating thickness of 500 µm ensures long-lasting insulation performance.
This bearing is ideal for applications requiring both mechanical strength and electrical insulation.
Industrial Uses of 6336M/C3VL2071 Bearing
6336M/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical arcing. The brass cage ensures smooth operation even under high-speed conditions.
In wind turbine applications, 6336M/C3VL2071 Bearing handles heavy radial loads while maintaining electrical insulation. Its C3 clearance allows for thermal expansion, making it suitable for variable operating temperatures.
For industrial pumps, 6336M/C3VL2071 Bearing’s high dynamic load rating ensures reliability in continuous operation. The VL2071 coating provides added protection against stray currents, extending service life.
Where Is 6336M/C3VL2071 Bearing Used?
6336M/C3VL2071 Bearing is ideal for railway traction motors, where electrical insulation is critical. Its breakdown voltage of ≤3000 V makes it a safe choice for high-voltage environments.
In mining equipment, 6336M/C3VL2071 Bearing withstands harsh conditions while maintaining performance. The 43 kg weight reflects its robust construction for heavy-duty applications.
Built for Heavy-Duty Use: 6336M/C3VL2071 Bearing
6336M/C3VL2071 Bearing excels in steel mill machinery, where its 405 kN static load rating handles extreme forces. The 500 µm coating thickness ensures long-term insulation integrity.
For paper processing machines, 6336M/C3VL2071 Bearing’s 3000 r/min reference speed supports high-speed rollers. The 200 MΩ electrical resistance minimizes energy loss in critical systems.
