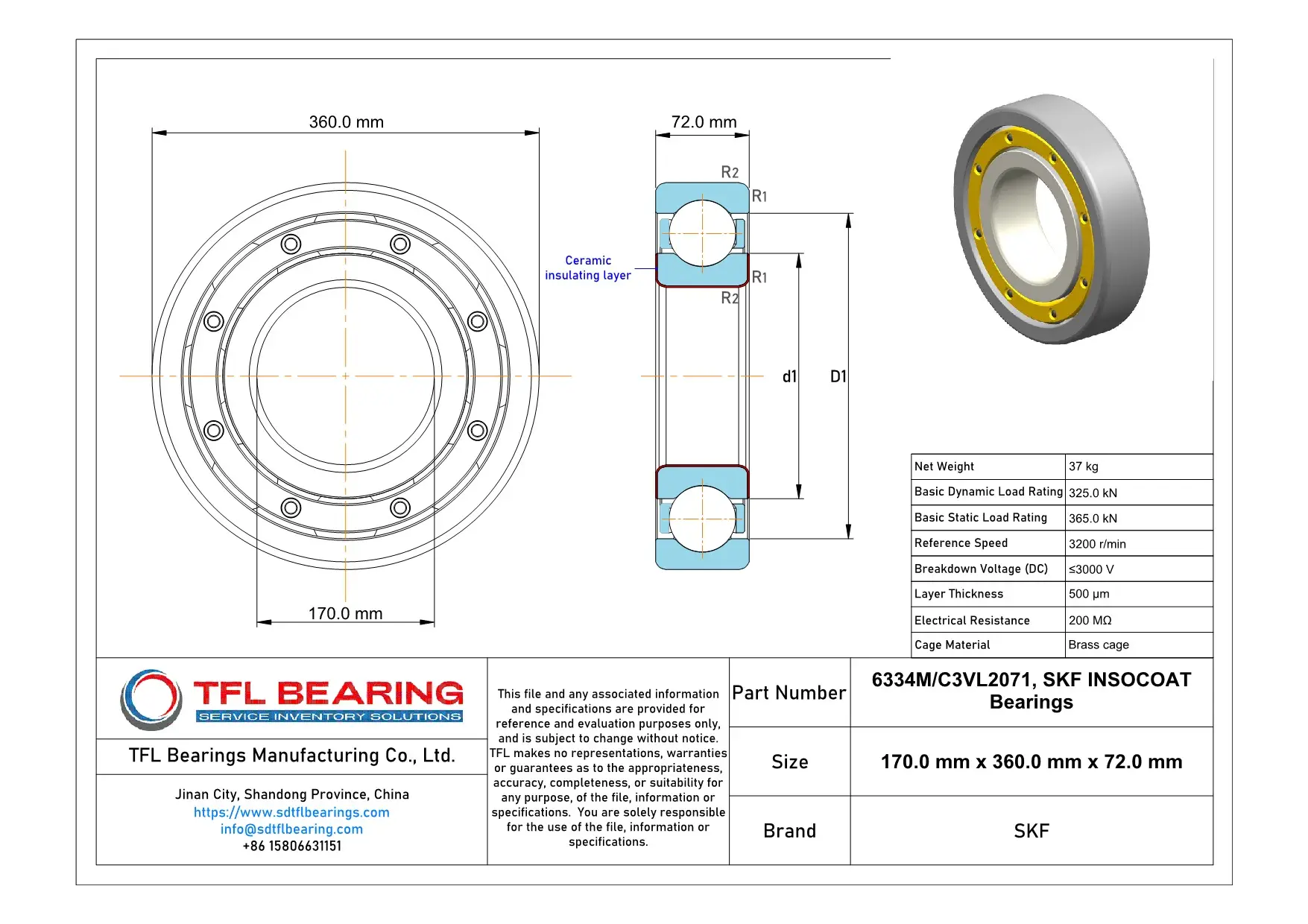

The SKF INSOCOAT bearing 6334M/C3VL2071 is a robust unit measuring 170mm by 360mm by 72mm, with a brass cage for added durability. It handles dynamic loads up to 325 kN and static loads up to 365 kN, suitable for high-performance applications.
Its inner ring features an insulating coating (VL2071) with a breakdown voltage of up to 3000V, ideal for preventing electrical damage in motors or generators. The C3 radial clearance ensures smooth operation under varying temperatures.
With a reference speed of 3200 r/min, this bearing is built for demanding environments. The coating provides an electrical resistance of 200 MΩ, reducing current leakage risks.
Weighing 37kg, it’s designed for heavy-duty machinery where electrical insulation is crucial. Compliant with RoHS standards, it’s a reliable choice for industrial and energy sectors.
"*" indicates required fields
How Is 6334M/C3VL2071 Bearing Engineered for Reliability?
6334M/C3VL2071 Bearing features an inner ring insulation coating, protecting it from electrical currents that can cause damage.
The brass cage ensures smooth operation and reduces friction, even at high speeds up to 3200 r/min.
With a basic dynamic load rating of 325.0 kN, it handles heavy loads reliably.
Its breakdown voltage of ≤3000 V makes it suitable for applications with electrical interference.
Why Choose 6334M/C3VL2071 Bearing for Precision Tasks?
6334M/C3VL2071 Bearing’s C3 radial internal clearance allows for precise performance in varying temperatures.
The 500 µm insulating layer thickness provides consistent protection against electrical arcing.
Its electrical resistance of 200 MΩ ensures minimal energy loss in sensitive applications.
The robust design with a static load rating of 365.0 kN guarantees long-term durability.
Designed for Durability: 6334M/C3VL2071 Bearing
6334M/C3VL2071 Bearing’s chrome steel construction resists wear, even under continuous use.
The VL2071 coating suffix indicates specialised insulation for demanding environments.
Weighing 37 kg, it maintains stability in heavy industrial applications.
Its 360.0 mm outside diameter and 72.0 mm width provide a balanced load distribution.
Steel vs Ceramic Bearings: Strengths of 6334M/C3VL2071 Bearing
6334M/C3VL2071 Bearing uses high-quality chrome steel for superior strength and longevity.
Unlike ceramic options, its brass cage offers better heat dissipation and shock absorption.
The insulation coating prevents electrical damage, a feature not found in standard steel bearings.
With a reference speed of 3200 r/min, it outperforms many alternatives in high-speed scenarios.
Industrial Uses of 6334M/C3VL2071 Bearing
6334M/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends service life. The brass cage ensures smooth operation even under high-speed conditions.
In wind turbine applications, 6334M/C3VL2071 Bearing handles heavy radial loads while maintaining electrical insulation. Its C3 clearance allows for thermal expansion, making it suitable for variable operating temperatures.
For industrial pumps, 6334M/C3VL2071 Bearing’s high dynamic load rating ensures reliability in continuous operation. The VL2071 coating also resists corrosion in humid environments.
Where Is 6334M/C3VL2071 Bearing Used?
6334M/C3VL2071 Bearing is ideal for railway traction motors, where electrical insulation is critical to prevent damage from stray currents. Its robust design handles the vibrations and shocks common in rail environments.
In mining equipment, 6334M/C3VL2071 Bearing’s high static load rating supports heavy machinery components. The brass cage reduces friction, even in dusty or abrasive conditions.
Built for Heavy-Duty Use: 6334M/C3VL2071 Bearing
6334M/C3VL2071 Bearing excels in steel mill applications, where its insulation coating protects against induced currents. The 360mm outer diameter provides stability under extreme loads.
For paper manufacturing machinery, 6334M/C3VL2071 Bearing’s corrosion resistance ensures longevity in wet conditions. The C3 clearance accommodates shaft misalignment during high-speed operation.
Medical vs Industrial: Where 6334M/C3VL2071 Bearing Excels
6334M/C3VL2071 Bearing is suited for MRI machines, where electrical insulation prevents interference with sensitive imaging. Its precision construction ensures quiet, vibration-free performance.
In food processing equipment, 6334M/C3VL2071 Bearing’s brass cage resists contamination from cleaning chemicals. The insulating coating also prevents electrical faults in washdown environments.
