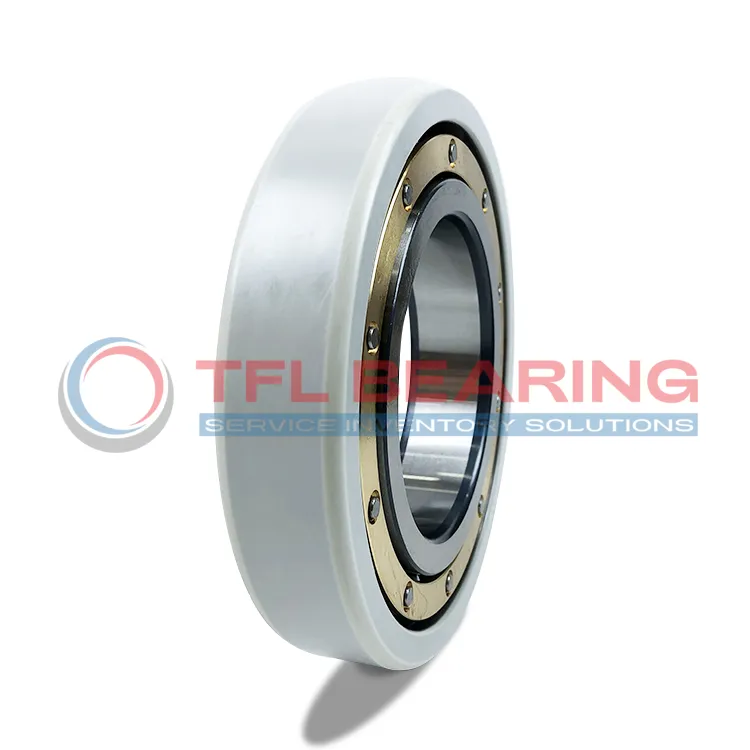

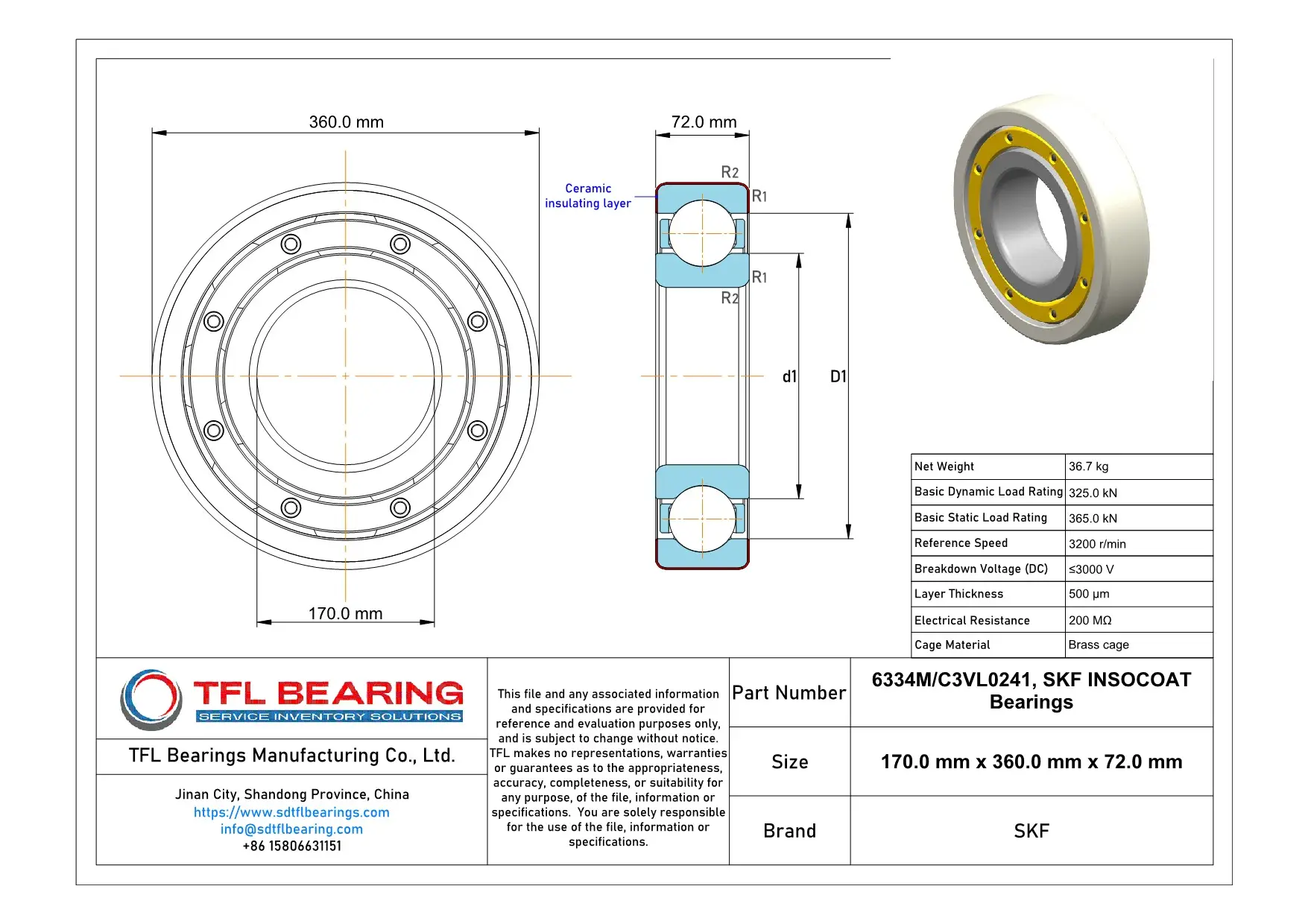

The SKF 6334M/C3VL0241 is a robust bearing with a 170mm bore and 360mm outer diameter, designed for heavy-duty applications. Its insulating coating on the outer ring prevents electrical damage, making it ideal for electric motors.
With a dynamic load rating of 325kN and a static load rating of 365kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 3200 r/min.
The C3 radial clearance allows for thermal expansion, while the 500µm insulating layer offers reliable protection. It’s compliant with ROHS standards for environmental safety.
Perfect for industrial machinery and electric motors, this bearing combines durability with electrical insulation. Weighing 36.7kg, it’s built to last in demanding conditions.
"*" indicates required fields
Performance Features of 6334M/C3VL0241 Bearing
6334M/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
The brass cage ensures smooth operation and reduces friction, enhancing overall performance.
With a basic dynamic load rating of 325.0 kN, it handles heavy loads efficiently.
Its reference speed of 3200 r/min makes it suitable for high-speed applications.
The coating offers a breakdown voltage of ≤3000 V, ensuring safety in electrically demanding environments.
6334M/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion under heavy loads.
Industrial Uses of 6334M/C3VL0241 Bearing
6334M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends service life. The brass cage ensures smooth operation even under high rotational speeds.
In wind turbine applications, 6334M/C3VL0241 Bearing handles heavy radial loads while its insulation protects against stray currents. The C3 clearance allows for thermal expansion in variable temperature conditions.
For industrial pumps and compressors, 6334M/C3VL0241 Bearing’s robust design withstands continuous operation. The VL0241 coating provides reliable insulation in environments with electrical interference.
Where Is 6334M/C3VL0241 Bearing Used?
You’ll find 6334M/C3VL0241 Bearing in railway traction motors, where electrical insulation is crucial for safety. Its high dynamic load rating makes it suitable for demanding transport applications.
The bearing also works well in large industrial fans, offering stability during prolonged use. The 500µm coating thickness ensures consistent insulation performance over time.
Built for Heavy-Duty Use: 6334M/C3VL0241 Bearing
6334M/C3VL0241 Bearing performs reliably in steel mill equipment, handling both heavy loads and electrical challenges. The 360mm outer diameter provides excellent load distribution.
In mining machinery, this bearing’s combination of strength and insulation proves particularly valuable. The 200 MΩ resistance prevents current damage in harsh operating conditions.
