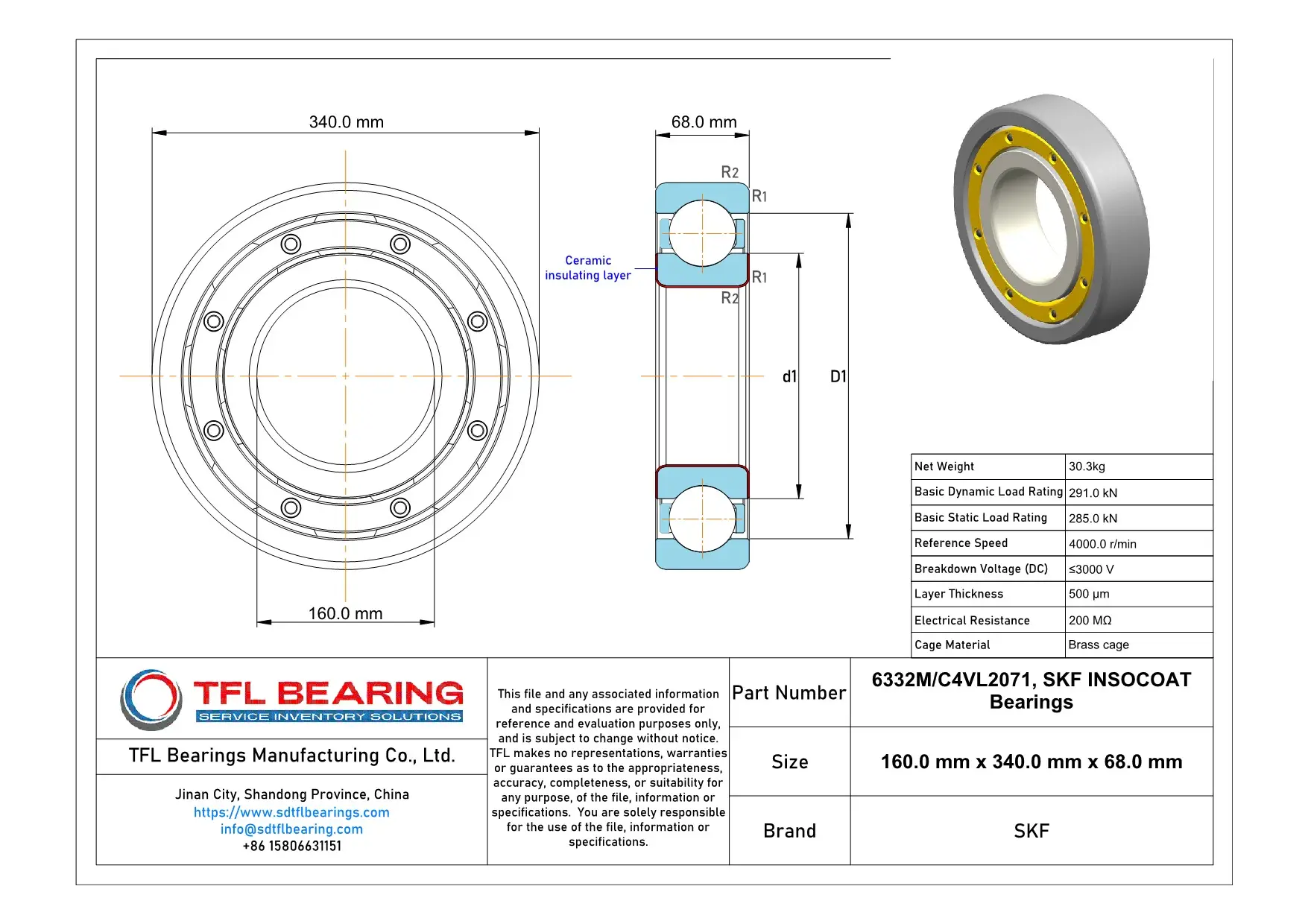

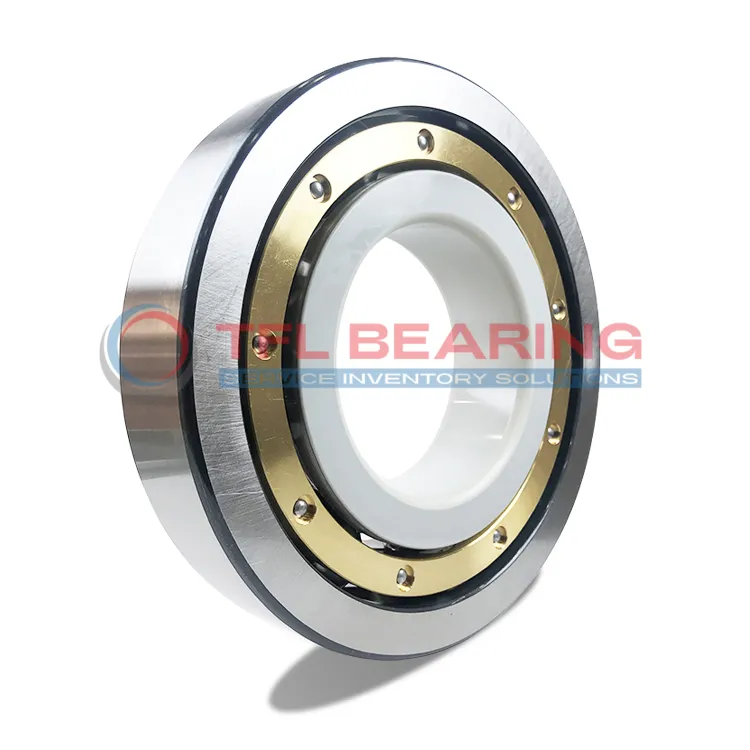

The SKF INSOCOAT bearing 6332M/C4VL2071 is a robust unit measuring 160mm by 340mm by 68mm, with a brass cage for added durability. It handles dynamic loads up to 291 kN and static loads up to 285 kN, making it suitable for heavy-duty applications.
Its inner ring insulation coating provides electrical resistance up to 200 MΩ, preventing current damage in electric motors. The C4 radial clearance ensures smooth operation even under thermal expansion.
With a reference speed of 4000 RPM, it’s ideal for high-speed industrial machinery. The coating withstands voltages up to 3000V, offering reliable insulation.
Weighing 30.3kg, this bearing is designed for demanding environments. It’s ROHS compliant, ensuring safe and eco-friendly use. Perfect for applications like generators or large motors where electrical insulation is crucial.
"*" indicates required fields
How Is 6332M/C4VL2071 Bearing Engineered for Reliability?
6332M/C4VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.
The brass cage enhances durability and maintains ball alignment under high-speed conditions.
With a reference speed of 4,000 r/min, it delivers consistent performance in demanding applications.
Its basic dynamic load rating of 291 kN makes it suitable for heavy-duty industrial use.
The C4 radial internal clearance allows for thermal expansion, ensuring long service life.
Key Fields for 6332M/C4VL2071 Bearing
6332M/C4VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from damaging the bearing. The brass cage adds durability, making it suitable for high-speed applications.
In wind turbines, 6332M/C4VL2071 Bearing handles heavy loads while maintaining smooth rotation, thanks to its C4 radial clearance. The insulation coating also protects against stray currents, which are common in renewable energy systems.
For industrial pumps, 6332M/C4VL2071 Bearing’s high dynamic load rating ensures reliable performance under constant use. Its breakdown voltage of up to 3000 V makes it a safe choice for electrically demanding environments.
In railway applications, 6332M/C4VL2071 Bearing’s robust design withstands vibrations and shocks. The insulation coating further enhances its longevity in electrified rail systems.
