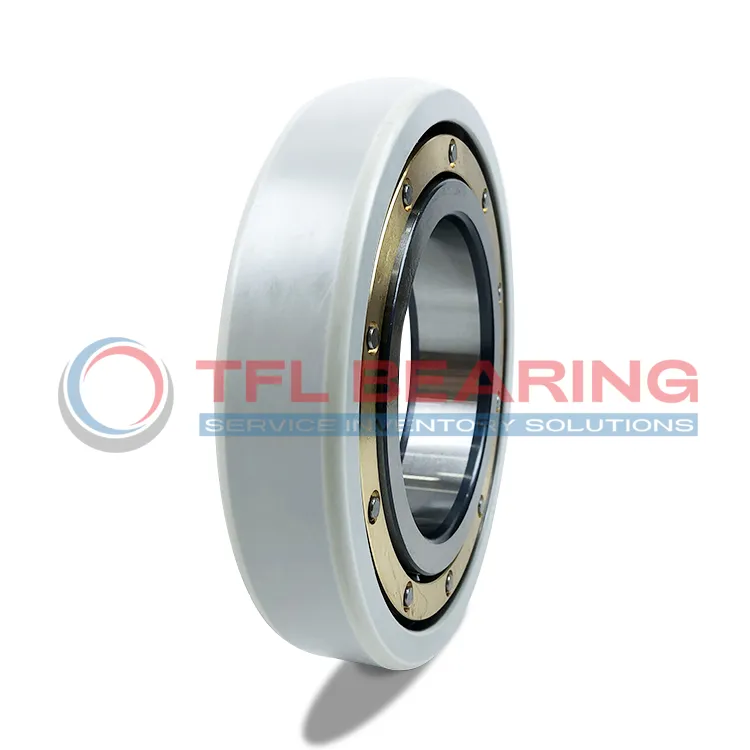

The SKF INSOCOAT bearing 6328M/C3VL0241 measures 140mm in bore diameter and 300mm outside, with a width of 62mm. Its outer ring features a 500µm insulation coating, providing protection against electrical currents.
With a dynamic load rating of 265kN and static load rating of 245kN, it handles heavy loads smoothly. The brass cage ensures durability, while the C3 clearance allows for thermal expansion.
This bearing can reach speeds up to 4800 RPM and resists breakdown voltages up to 3000V. Its 200 MΩ electrical resistance makes it ideal for electric motors or generators.
Weighing 21.3kg, it’s robust yet compliant with RoHS standards. Perfect for industrial applications where electrical insulation is needed.
"*" indicates required fields
How Is 6328M/C3VL0241 Bearing Engineered for Reliability?
6328M/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical damage in high-voltage environments.
The brass cage ensures smooth operation and reduces friction, even at high speeds up to 4,800 r/min.
With a basic dynamic load rating of 265 kN, 6328M/C3VL0241 Bearing handles heavy loads reliably.
Its C3 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.
The insulation coating provides a breakdown voltage of up to 3,000 V, protecting against electrical currents.
This makes 6328M/C3VL0241 Bearing suitable for applications where electrical insulation is crucial.
Industrial Uses of 6328M/C3VL0241 Bearing
The 6328M/C3VL0241 Bearing is commonly used in industrial motors and generators, where its insulating coating prevents electrical damage from stray currents.
Its brass cage and C3 clearance make it suitable for high-speed applications, ensuring reliable performance in demanding environments.
Where Is 6328M/C3VL0241 Bearing Used?
You’ll often find the 6328M/C3VL0241 Bearing in wind turbines, where its insulation coating protects against electrical arcing.
The high dynamic load rating also makes it a solid choice for heavy machinery like crushers and conveyors.
Optimized for Performance: 6328M/C3VL0241 Bearing
In automation systems, the 6328M/C3VL0241 Bearing handles high speeds smoothly, thanks to its balanced design and brass cage.
The insulation coating adds an extra layer of reliability, especially in environments with variable electrical currents.
Automotive vs Aerospace: Applications of 6328M/C3VL0241 Bearing
In automotive testing equipment, the 6328M/C3VL0241 Bearing’s insulation helps avoid electrical interference during precision measurements.
For aerospace applications, its high-speed capability and durability make it useful in auxiliary power units and ground support systems.
