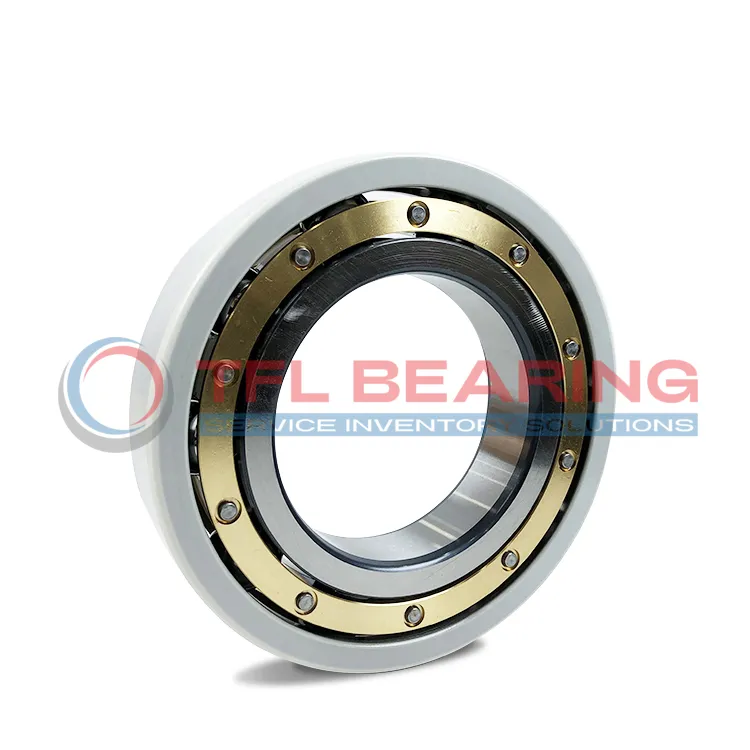

The SKF INSOCOAT 6326M/C3VL0241 is a robust bearing with a 130mm bore and 280mm outer diameter, designed for heavy-duty applications. Its outer ring features a 500µm insulation coating, providing protection against electrical currents.
With a dynamic load rating of 229kN and a static load rating of 216kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 5000 RPM, making it suitable for demanding environments.
The C3 radial internal clearance allows for thermal expansion, while the insulation coating prevents electrical damage. This bearing is ideal for use in electric motors or generators where electrical currents are a concern.
Weighing 17.3kg, it’s built for durability and long-term performance. Compliant with ROHS standards, it’s a reliable choice for industrial applications.
"*" indicates required fields
How Is 6326M/C3VL0241 Bearing Engineered for Reliability?
6326M/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
Its brass cage ensures smooth operation, even at high speeds up to 5,000 r/min.
With a basic dynamic load rating of 229 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, enhancing durability in varied conditions.
Why Choose 6326M/C3VL0241 Bearing for Precision Tasks?
6326M/C3VL0241 Bearing offers a breakdown voltage of ≤3000 V, ideal for electric motor applications.
The insulation coating provides an electrical resistance of 200 MΩ, preventing current damage.
Its robust design includes a brass cage, ensuring stability under high-speed rotation.
With a static load rating of 216 kN, it delivers consistent performance in demanding environments.
Designed for Durability: 6326M/C3VL0241 Bearing
6326M/C3VL0241 Bearing’s insulation coating is 500 µm thick, offering long-term protection.
The brass cage minimises friction, extending the bearing’s service life.
It operates efficiently within a wide speed range, up to 5,000 r/min.
The C3 clearance accommodates thermal expansion, ensuring reliable performance under load.
Steel vs Ceramic Bearings: Strengths of 6326M/C3VL0241 Bearing
6326M/C3VL0241 Bearing uses a brass cage for reduced wear and smooth operation.
Its insulation coating prevents electrical arcing, making it suitable for motor applications.
With a dynamic load rating of 229 kN, it outperforms many standard bearings.
The C3 clearance ensures adaptability to temperature changes, enhancing reliability.
Industrial Uses of 6326M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds.
Where Is 6326M/C3VL0241 Bearing Used?
You’ll find it in wind turbines and industrial pumps, handling heavy loads with ease. Its C3 clearance allows for thermal expansion, making it reliable in variable temperatures.
Built for Heavy-Duty Use: 6326M/C3VL0241 Bearing
Perfect for conveyor systems and compressors, this bearing’s dynamic load rating of 229 kN ensures long-lasting performance. The insulation coating adds an extra layer of protection in electrically noisy environments.
Automotive vs Aerospace: Applications of 6326M/C3VL0241 Bearing
In automotive applications, it supports large drivetrain components, while in aerospace, its lightweight design and insulation make it suitable for avionics. The high breakdown voltage is a key feature in both fields.
Practical Applications of 6326M/C3VL0241 Bearing
For medical imaging devices, this bearing offers precision and reliability. The insulation coating ensures no interference with sensitive electronic components, making it ideal for MRI machines.
