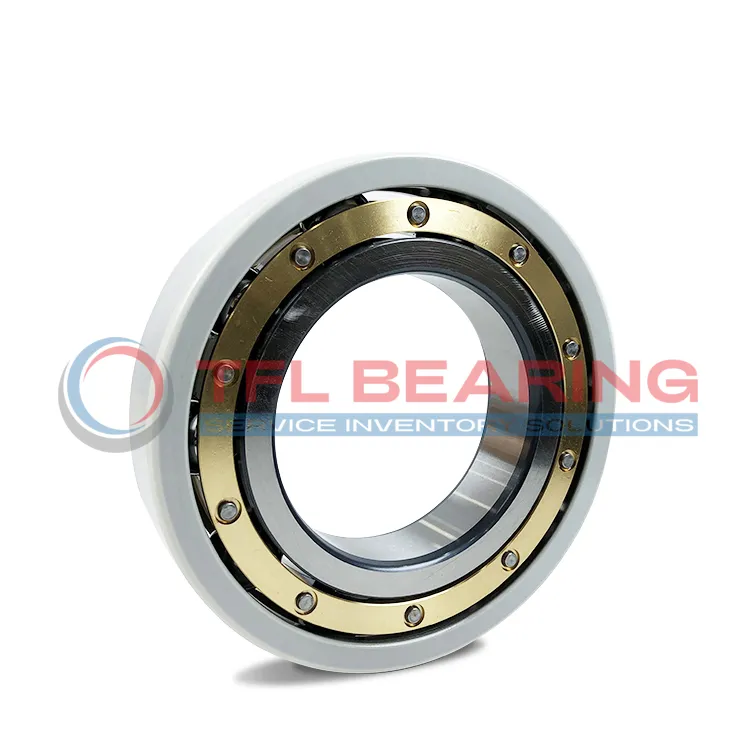

The SKF 6324M/C3VL0241 is an INSOCOAT bearing with a 120mm bore and 260mm outer diameter, featuring an insulating coating on the outer ring. It handles dynamic loads up to 216 kN and spins smoothly at speeds up to 5600 RPM.
Its brass cage ensures durability, while the C3 radial clearance allows for thermal expansion. The insulation coating provides protection against electrical currents, with a breakdown voltage of up to 3000V.
This bearing is ideal for electric motors or generators where electrical insulation is needed. Weighing 14.1kg, it’s robust yet manageable for industrial use.
Compliant with ROHS standards, it’s a reliable choice for applications requiring both mechanical performance and electrical safety.
"*" indicates required fields
How Is 6324M/C3VL0241 Bearing Engineered for Reliability?
6324M/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.
The brass cage enhances durability and maintains ball alignment under high-speed conditions.
With a basic dynamic load rating of 216.0 kN, it handles heavy loads efficiently.
What Makes 6324M/C3VL0241 Bearing Suitable for High-Temperature Applications?
6324M/C3VL0241 Bearing’s insulation coating withstands high temperatures, ensuring consistent performance.
The C3 radial internal clearance allows for thermal expansion, reducing stress during operation.
Its reference speed of 5600.0 r/min makes it suitable for high-speed applications.
The brass cage material further enhances its resistance to heat and wear.
Designed for Durability: 6324M/C3VL0241 Bearing
6324M/C3VL0241 Bearing is built with a robust brass cage, ensuring long-lasting performance.
The insulation coating provides an electrical resistance of 200 MΩ, preventing damage from stray currents.
Its basic static load rating of 186.0 kN ensures stability under heavy loads.
The 500 µm layer thickness offers additional protection against electrical and mechanical stress.
Steel vs Ceramic Bearings: Strengths of 6324M/C3VL0241 Bearing
6324M/C3VL0241 Bearing uses high-quality materials like brass for the cage, ensuring durability.
The insulation coating on the outer ring sets it apart from standard steel bearings.
With a breakdown voltage of ≤3000 V, it is ideal for electrically demanding environments.
Its dynamic load rating of 216.0 kN makes it a reliable choice for heavy-duty applications.
Industrial Uses of 6324M/C3VL0241 Bearing
6324M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth operation even at high speeds, making it reliable for industrial applications.
In wind turbines, 6324M/C3VL0241 Bearing handles heavy radial loads while its insulation protects against electrical erosion. The C3 clearance allows for thermal expansion, which is essential in variable temperature environments.
For railway traction systems, 6324M/C3VL0241 Bearing’s high dynamic load rating ensures durability under constant vibration. The insulating coating also extends service life by preventing current-induced wear.
Where Is 6324M/C3VL0241 Bearing Used?
You’ll often find 6324M/C3VL0241 Bearing in HVAC systems, where its insulation resists electrical corrosion from variable frequency drives. The high reference speed makes it suitable for fans and blowers.
In industrial pumps, 6324M/C3VL0241 Bearing’s robust design handles both radial and axial loads efficiently. The brass cage reduces friction, ensuring quieter operation in continuous-use scenarios.
Built for Heavy-Duty Use: 6324M/C3VL0241 Bearing
6324M/C3VL0241 Bearing excels in mining equipment, where its insulation coating withstands harsh electrical environments. The C3 clearance accommodates misalignment and heavy loads common in this sector.
For compressors, 6324M/C3VL0241 Bearing’s high breakdown voltage ensures reliability in electrically noisy settings. Its 14.1kg weight reflects a sturdy construction built for long-term performance.
