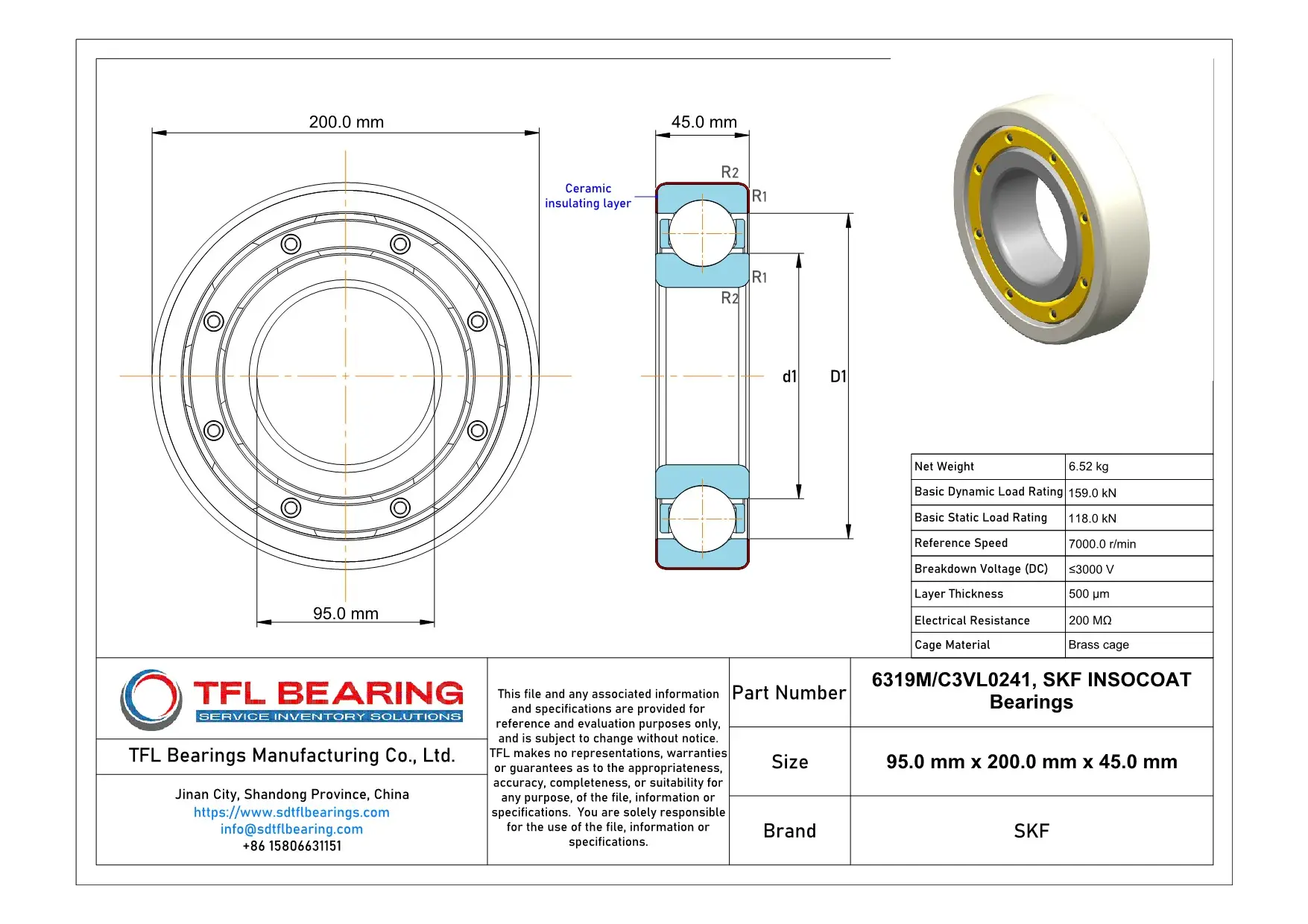

The SKF 6319M/C3VL0241 is an INSOCOAT bearing with a 95mm bore and 200mm outer diameter, featuring an insulating coating on the outer ring. It handles dynamic loads up to 159 kN and spins smoothly at speeds up to 7000 RPM.
The brass cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. Its insulation coating provides protection against electrical currents, with a breakdown voltage of up to 3000V.
This bearing is ideal for electric motors or generators where electrical insulation is crucial. Weighing 6.52kg, it’s robust yet manageable for industrial use. Compliant with RoHS standards for safe and reliable operation.
"*" indicates required fields
How Is 6319M/C3VL0241 Bearing Engineered for Reliability?
6319M/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 7,000 r/min.
With a basic dynamic load rating of 159 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
What Makes 6319M/C3VL0241 Bearing Suitable for High-Temperature Applications?
6319M/C3VL0241 Bearing’s insulation coating withstands high voltages, with a breakdown rating of up to 3,000 V DC.
The brass cage maintains stability under thermal stress, ensuring consistent performance.
Its layer thickness of 500 µm provides robust protection against electrical currents.
With a basic static load rating of 118 kN, it offers durability in demanding industrial settings.
Designed for Durability: 6319M/C3VL0241 Bearing
6319M/C3VL0241 Bearing’s insulation coating resists electrical arcing, extending its service life.
The C3 clearance accommodates thermal expansion, reducing wear during operation.
Its high electrical resistance of 200 MΩ ensures safe performance in electrified environments.
Weighing 6.52 kg, it balances strength and practicality for industrial use.
Steel vs Ceramic Bearings: Strengths of 6319M/C3VL0241 Bearing
6319M/C3VL0241 Bearing uses a brass cage for enhanced durability and reduced friction.
The insulation coating protects against electrical currents, unlike standard steel bearings.
With a reference speed of 7,000 r/min, it outperforms many ceramic alternatives in high-speed applications.
Its robust design handles dynamic loads up to 159 kN, making it a reliable choice for heavy machinery.
Industrial Uses of 6319M/C3VL0241 Bearing
The 6319M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical current damage.
Its brass cage and C3 clearance make it suitable for high-speed applications, ensuring reliable performance in demanding industrial settings.
What Makes 6319M/C3VL0241 Bearing a Preferred Choice?
In wind turbines, 6319M/C3VL0241 Bearing handles heavy loads while its insulation protects against stray currents.
The robust design and high dynamic load rating make it ideal for renewable energy applications.
Perfect Fit for Automation: 6319M/C3VL0241 Bearing
For robotic arms and automated machinery, 6319M/C3VL0241 Bearing offers smooth operation and long service life.
The insulation coating ensures safety in electrically sensitive environments, reducing downtime.
Medical vs Industrial: Where 6319M/C3VL0241 Bearing Excels
While not typically used in medical devices, 6319M/C3VL0241 Bearing shines in industrial pumps and compressors.
Its high breakdown voltage and electrical resistance make it a reliable choice for harsh industrial conditions.
