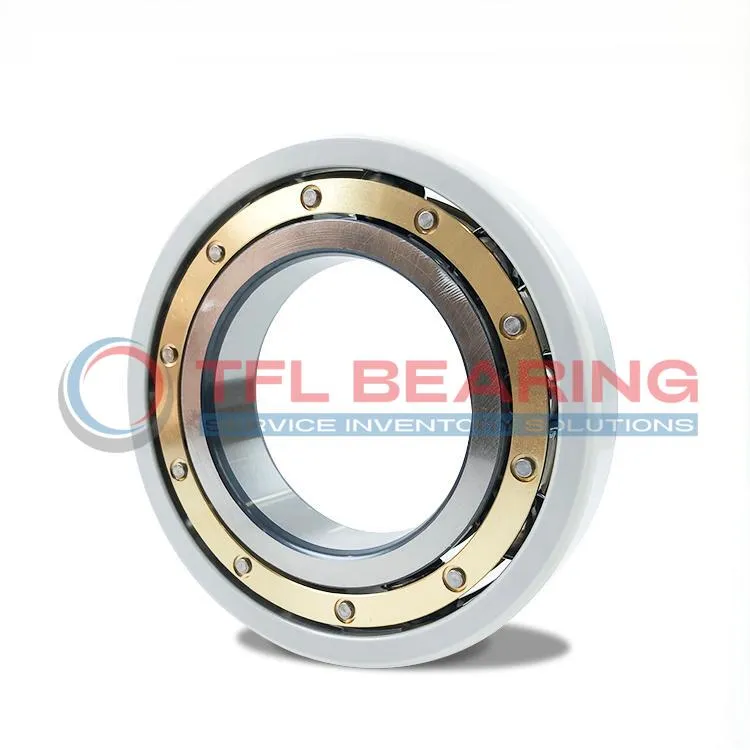

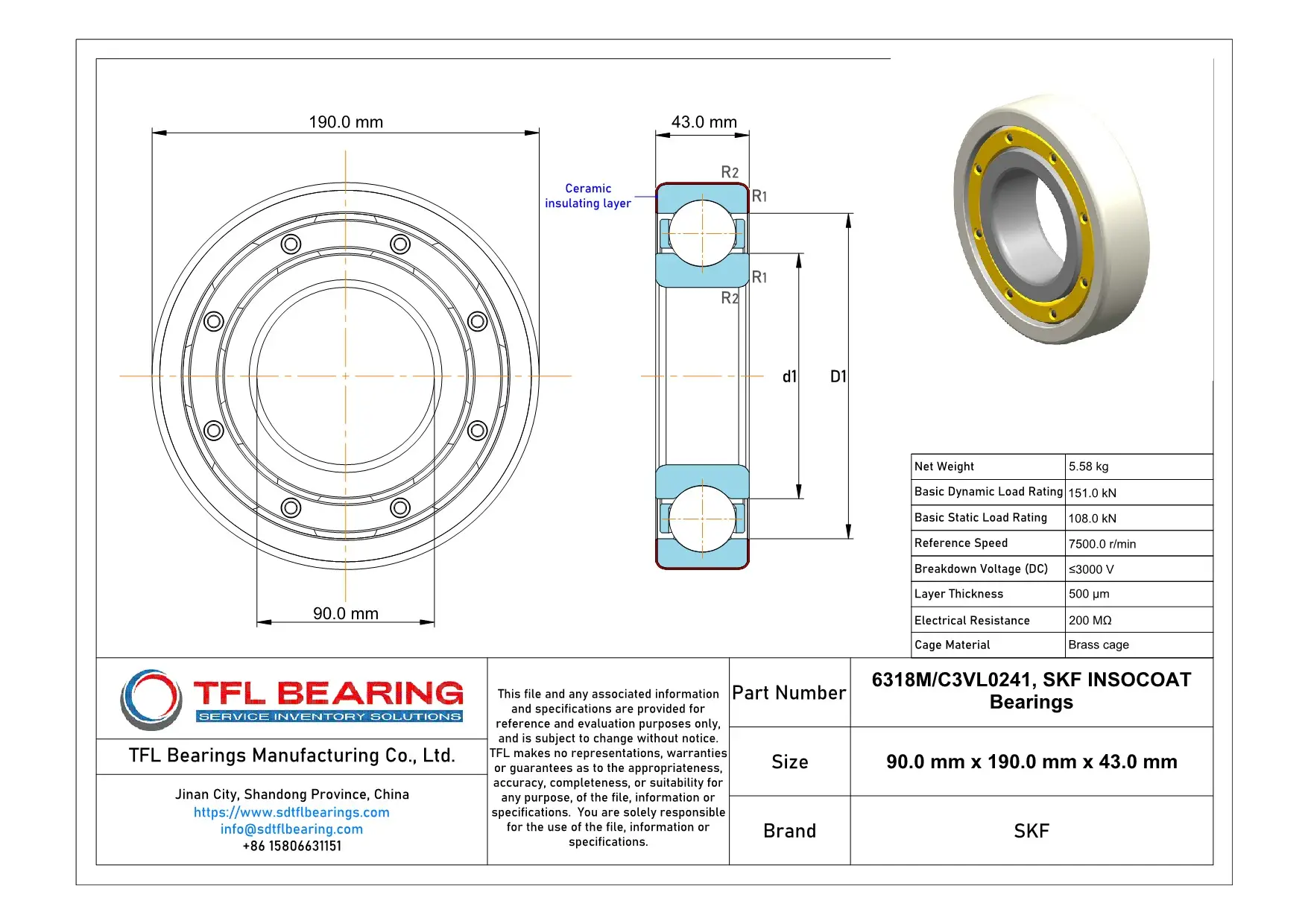

The SKF INSOCOAT bearing 6318M/C3VL0241 measures 90mm in bore diameter, 190mm outside, and 43mm wide, with a robust brass cage for durability. It handles dynamic loads up to 151kN and spins smoothly at speeds up to 7500 RPM.
Its outer ring features a 500µm insulating coating, providing electrical resistance of 200 MΩ and breakdown voltage up to 3000V. The C3 radial clearance ensures reliable performance under varying temperatures.
This bearing is ideal for electric motors or generators where electrical insulation is needed. Weighing 5.58kg, it’s a sturdy choice for industrial applications. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Is 6318M/C3VL0241 Bearing Engineered for Reliability?
6318M/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical damage in high-voltage environments.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 7,500 r/min.
With a basic dynamic load rating of 151 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
Industrial Uses of 6318M/C3VL0241 Bearing
The 6318M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents.
Its brass cage and C3 clearance make it suitable for high-speed applications, ensuring smooth operation even under heavy loads.
Where Is 6318M/C3VL0241 Bearing Used?
You’ll often find 6318M/C3VL0241 Bearing in wind turbines and industrial pumps, where its high breakdown voltage protects against electrical arcing.
The bearing’s robust design also makes it a reliable choice for machinery operating in harsh environments.
Built for Heavy-Duty Use: 6318M/C3VL0241 Bearing
6318M/C3VL0241 Bearing handles demanding conditions in mining equipment and compressors, thanks to its high dynamic load rating.
The insulation coating adds an extra layer of protection, making it ideal for applications where electrical resistance is crucial.
Automotive vs Aerospace: Applications of 6318M/C3VL0241 Bearing
In automotive systems, 6318M/C3VL0241 Bearing is used in hybrid vehicle motors, where insulation is key to preventing electrical faults.
For aerospace, its lightweight yet durable construction makes it suitable for auxiliary power units and other critical components.
Perfect Fit for Automation: 6318M/C3VL0241 Bearing
6318M/C3VL0241 Bearing is a go-to choice for robotic arms and CNC machines, offering precision and reliability.
The insulating coating ensures consistent performance, even in environments with frequent electrical interference.
