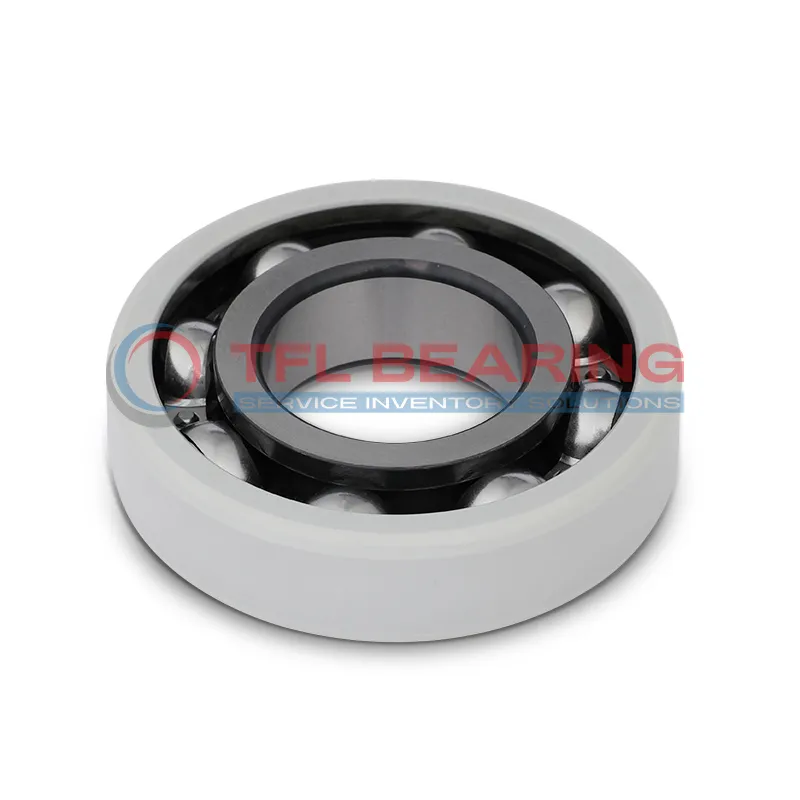

The SKF INSOCOAT 6316/C3VL0241 is a robust bearing with an 80mm bore and 170mm outer diameter, featuring an insulating coating on the outer ring. It handles dynamic loads up to 130 kN and spins smoothly at speeds up to 8500 RPM.
The insulation coating provides protection against electrical currents, with a breakdown voltage of up to 3000V. Its sheet metal cage ensures durability and reliable performance under heavy loads.
This bearing is ideal for electric motors or generators where electrical insulation is crucial. With a C3 radial clearance, it accommodates thermal expansion in demanding applications.
Weighing 3.63kg, it’s a sturdy choice for industrial use. Compliant with RoHS standards, it’s both safe and environmentally friendly.
"*" indicates required fields
How Is 6316/C3VL0241 Bearing Engineered for Reliability?
6316/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
With a breakdown voltage of up to 3000 V, it ensures safe operation in electrically demanding environments.
The C3 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.
Its dynamic load rating of 130 kN and static load rating of 86.5 kN make it suitable for heavy-duty applications.
Industrial Uses of 6316/C3VL0241 Bearing
6316/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The C3 clearance ensures reliable performance even under thermal expansion.
In automation systems, 6316/C3VL0241 Bearing supports high-speed operations in robotic arms and conveyor belts. Its sheet metal cage provides durability while maintaining smooth rotation.
For wind turbine applications, 6316/C3VL0241 Bearing handles heavy radial loads with ease, thanks to its robust design. The insulation coating also protects against electrical erosion in harsh environments.
What Makes 6316/C3VL0241 Bearing a Preferred Choice?
6316/C3VL0241 Bearing is ideal for industrial fans, where its high dynamic load rating ensures long service life. The breakdown voltage rating makes it safe for use in electrically noisy settings.
In pump systems, 6316/C3VL0241 Bearing’s resistance to electrical currents prevents premature failure. The 500 µm coating thickness provides reliable insulation without compromising performance.
Built for Heavy-Duty Use: 6316/C3VL0241 Bearing
6316/C3VL0241 Bearing excels in compressors, handling both radial and axial loads with ease. Its reference speed of 8500 r/min makes it suitable for high-RPM applications.
For machine tools, 6316/C3VL0241 Bearing’s C3 clearance accommodates thermal expansion during prolonged use. The 200 MΩ electrical resistance ensures consistent operation in electrically charged environments.
