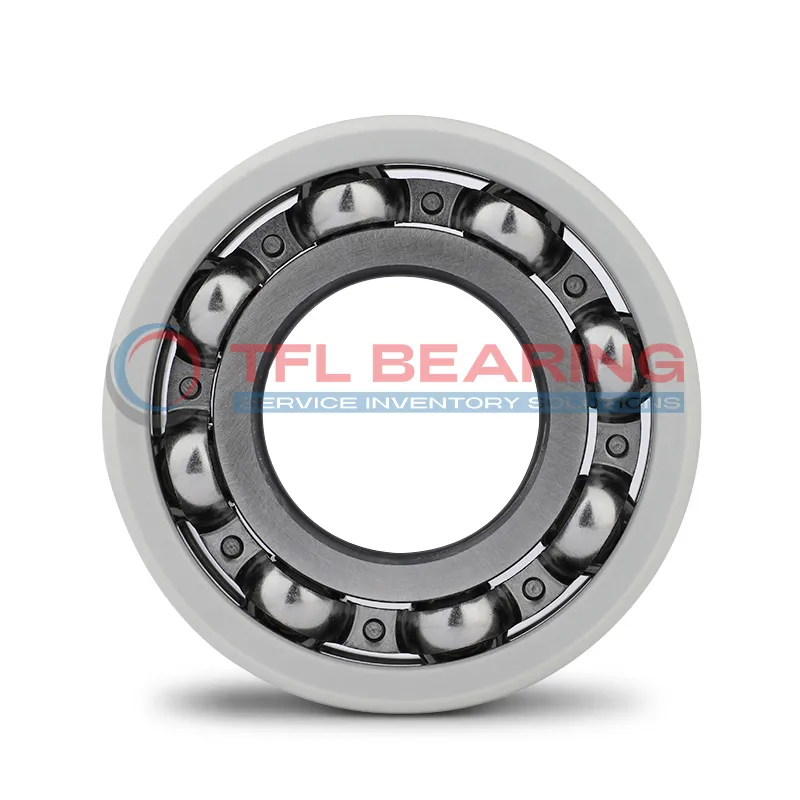

The SKF INSOCOAT bearing 6314/C3VL0241 measures 70mm in bore diameter, 150mm outside, and 35mm wide, with a robust insulation coating on the outer ring. It handles dynamic loads up to 111 kN and spins smoothly at speeds up to 9500 RPM.
Its VL0241 coating provides electrical resistance of 200 MΩ, preventing current damage in motors or generators. The C3 radial clearance ensures reliable performance under varying temperatures.
With a breakdown voltage of 3000V, it’s ideal for electric vehicles or industrial machinery where electrical insulation is crucial. The sheet metal cage offers durability without adding weight.
Weighing 2.5kg, this RoHS-compliant bearing balances strength and efficiency. Suitable for applications requiring both mechanical reliability and electrical protection.
"*" indicates required fields
How Is 6314/C3VL0241 Bearing Engineered for Reliability?
6314/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference, reducing the risk of damage.
With a basic dynamic load rating of 111.0 kN, it handles heavy loads efficiently while maintaining performance.
The sheet metal cage keeps the components aligned, enhancing durability and smooth operation.
What Makes 6314/C3VL0241 Bearing Suitable for High-Temperature Applications?
6314/C3VL0241 Bearing’s insulation coating withstands high temperatures, ensuring consistent performance.
Its breakdown voltage of ≤3000 V makes it ideal for applications with electrical exposure.
The bearing’s C3 radial internal clearance allows for thermal expansion, preventing seizing.
With a reference speed of 9500.0 r/min, it balances speed and reliability in demanding conditions.
Engineered for Precision: 6314/C3VL0241 Bearing
6314/C3VL0241 Bearing is designed with a 500 µm thick insulation layer, offering excellent electrical resistance.
The coating ensures minimal energy loss, making it suitable for precision applications.
Its basic static load rating of 68.0 kN provides stability under heavy loads.
The sheet metal cage enhances alignment, reducing friction and wear over time.
Steel vs Ceramic Bearings: Strengths of 6314/C3VL0241 Bearing
6314/C3VL0241 Bearing combines chrome steel durability with an advanced insulation coating for electrical protection.
The 200 MΩ electrical resistance prevents current passage, safeguarding machinery.
Its C3 clearance accommodates thermal expansion, ensuring smooth operation in varying temperatures.
With a net weight of 2.5 kg, it offers a robust yet manageable solution for industrial applications.
Industrial Uses of 6314/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from causing damage. The C3 clearance ensures reliable performance even under varying thermal conditions.
Where Is 6314/C3VL0241 Bearing Used?
You’ll find this bearing in wind turbines and industrial pumps, thanks to its ability to handle high dynamic loads. The VL0241 coating also makes it ideal for environments with electrical interference.
Built for Heavy-Duty Use: 6314/C3VL0241 Bearing
In conveyor systems and compressors, this bearing’s robust design ensures long service life. The sheet metal cage adds durability while maintaining smooth operation.
Automotive vs Aerospace: Applications of 6314/C3VL0241 Bearing
While it’s used in automotive alternators for its insulation properties, this bearing also suits aerospace applications due to its high-speed capabilities. The 150 mm outer diameter provides stability in demanding conditions.
Perfect Fit for Automation: 6314/C3VL0241 Bearing
In robotic arms and CNC machines, this bearing offers precise movement with minimal maintenance. Its 35 mm width balances space efficiency and load capacity.
