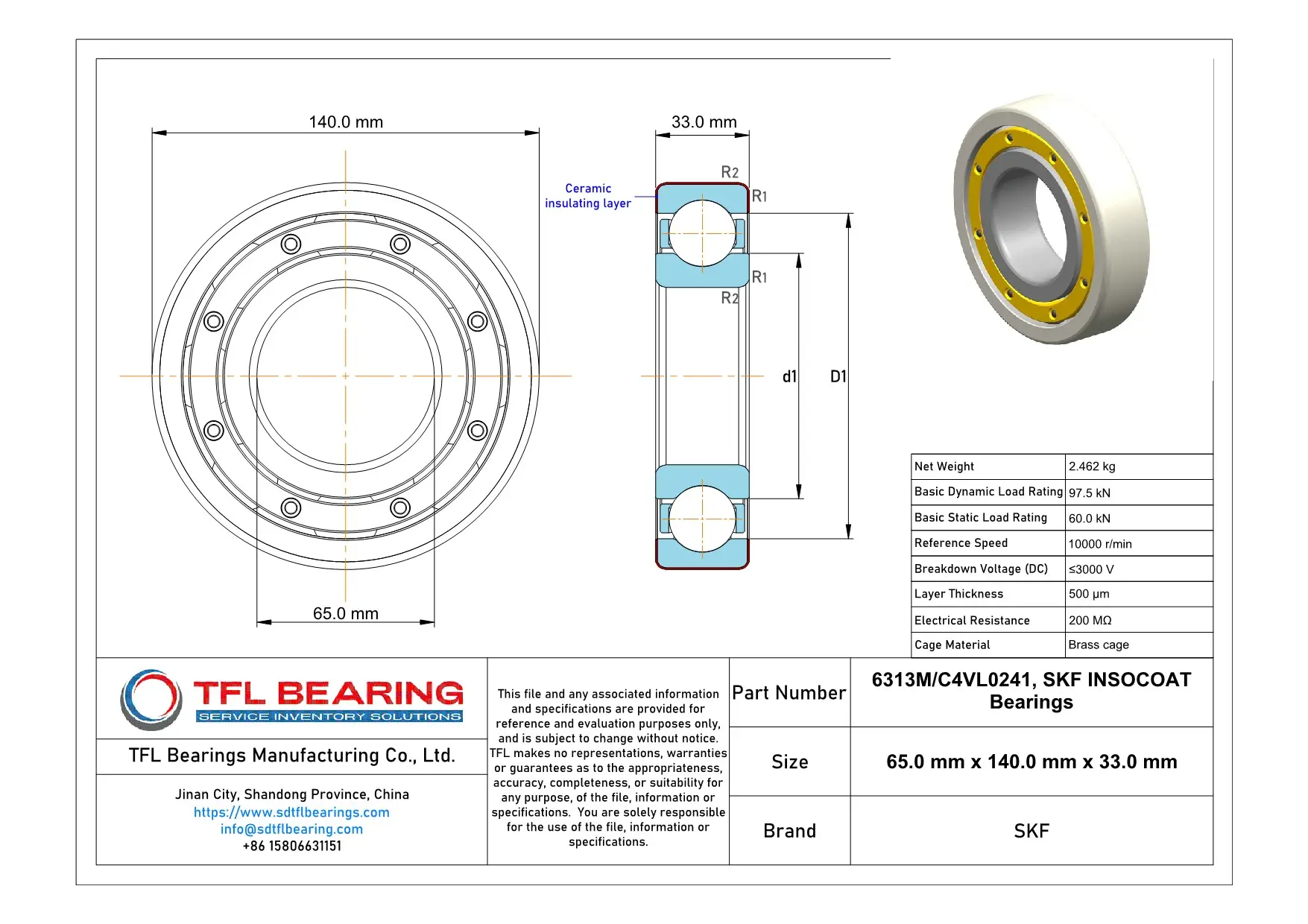

The SKF INSOCOAT bearing 6313M/C4VL0241 measures 65mm in bore diameter, 140mm outside, and 33mm wide, with a robust brass cage for durability. It handles dynamic loads up to 97.5 kN and spins smoothly at speeds up to 10,000 RPM.
Its outer ring features a 500µm insulation coating, providing electrical resistance of 200 MΩ and breakdown voltage up to 3000V. This makes it ideal for avoiding electrical damage in motors or generators.
The C4 radial clearance ensures reliable performance under varying temperatures. Weighing 2.462kg, it’s a sturdy choice for industrial applications. Compliant with RoHS standards, it’s both safe and long-lasting.
Perfect for electric motors or wind turbines where electrical insulation is crucial. Its design prevents current passage, extending machinery life.
"*" indicates required fields
How Is 6313M/C4VL0241 Bearing Engineered for Reliability?
6313M/C4VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 10,000 r/min.
The C4 radial internal clearance allows for thermal expansion, maintaining performance in varying conditions.
With a breakdown voltage of ≤3000 V, it is ideal for applications requiring electrical insulation.
Industrial Uses of 6313M/C4VL0241 Bearing
6313M/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. The brass cage ensures smooth rotation even at high speeds, making it reliable for continuous operation.
Where Is 6313M/C4VL0241 Bearing Used?
In wind turbines, 6313M/C4VL0241 Bearing handles heavy loads while its insulation protects against electrical arcing. The C4 clearance allows for thermal expansion, which is essential in fluctuating temperatures.
Perfect Fit for Automation: 6313M/C4VL0241 Bearing
For robotic arms and automated systems, 6313M/C4VL0241 Bearing offers precise movement and durability. Its high dynamic load rating makes it suitable for repetitive tasks without wear concerns.
Medical vs Industrial: Where 6313M/C4VL0241 Bearing Excels
In medical imaging devices, 6313M/C4VL0241 Bearing’s insulation ensures safety from electrical interference. Meanwhile, in industrial pumps, its robust design handles both radial and axial loads effortlessly.
Essential Roles of 6313M/C4VL0241 Bearing
6313M/C4VL0241 Bearing is a go-to choice for HVAC systems, where its insulation resists moisture and electrical damage. The high reference speed also makes it ideal for fans and blowers.
