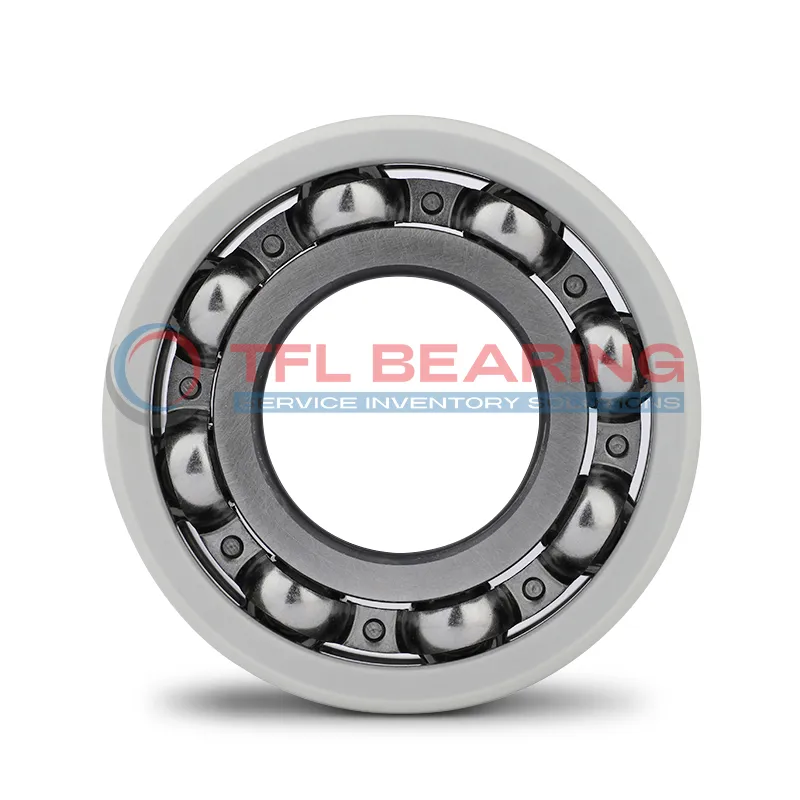

The SKF 6313/C3VL0241 is an INSOCOAT bearing with a 65mm bore and 140mm outer diameter, designed for electrical insulation. Its outer ring features a 500µm coating, providing resistance up to 3000V and 200 MΩ.
This bearing handles dynamic loads up to 97.5 kN and spins smoothly at speeds up to 10000 RPM. The C3 radial clearance allows for thermal expansion, making it suitable for variable conditions.
The sheet metal cage ensures durability, while the insulation prevents electrical damage. It’s ideal for electric motors or generators where current leakage is a concern.
Weighing 2.05kg, it’s robust yet manageable for its size. Compliant with RoHS standards, it’s a reliable choice for industrial applications.
"*" indicates required fields
How Is 6313/C3VL0241 Bearing Engineered for Reliability?
6313/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
This coating ensures a breakdown voltage of up to 3000 V, making it suitable for electric motor applications.
The sheet metal cage maintains ball alignment, enhancing durability and reducing friction.
With a basic dynamic load rating of 97.5 kN, it handles heavy loads efficiently.
6313/C3VL0241 Bearing operates at speeds up to 10,000 r/min, balancing performance and longevity.
Its C3 radial internal clearance allows for thermal expansion in high-speed applications.
Industrial Uses of 6313/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing. The C3 clearance ensures smooth operation even under thermal expansion.
In wind turbine applications, 6313/C3VL0241 Bearing handles high dynamic loads while maintaining electrical insulation. Its robust design makes it suitable for harsh outdoor environments.
For industrial pumps, this bearing’s sheet metal cage provides durability in wet conditions. The VL0241 coating also resists corrosion, extending service life.
Where Is 6313/C3VL0241 Bearing Used?
You’ll often find it in railway traction motors, where electrical insulation is critical. The high reference speed allows for efficient power transmission.
The bearing works well in conveyor systems too, thanks to its balanced load ratings. Its dimensions fit standard industrial machinery perfectly.
Built for Heavy-Duty Use: 6313/C3VL0241 Bearing
This model excels in mining equipment, handling both radial and axial loads. The insulation coating adds an extra layer of protection against stray currents.
In steel production lines, 6313/C3VL0241 Bearing withstands high temperatures and heavy loads. The C3 clearance accommodates shaft expansion during continuous operation.
Automotive vs Aerospace: Applications of 6313/C3VL0241 Bearing
In hybrid vehicles, it’s used in traction motors for its electrical insulation properties. The aerospace industry values it for auxiliary power units due to its reliability.
For ground support equipment, this bearing offers consistent performance. Its specifications meet rigorous industry standards for both sectors.
