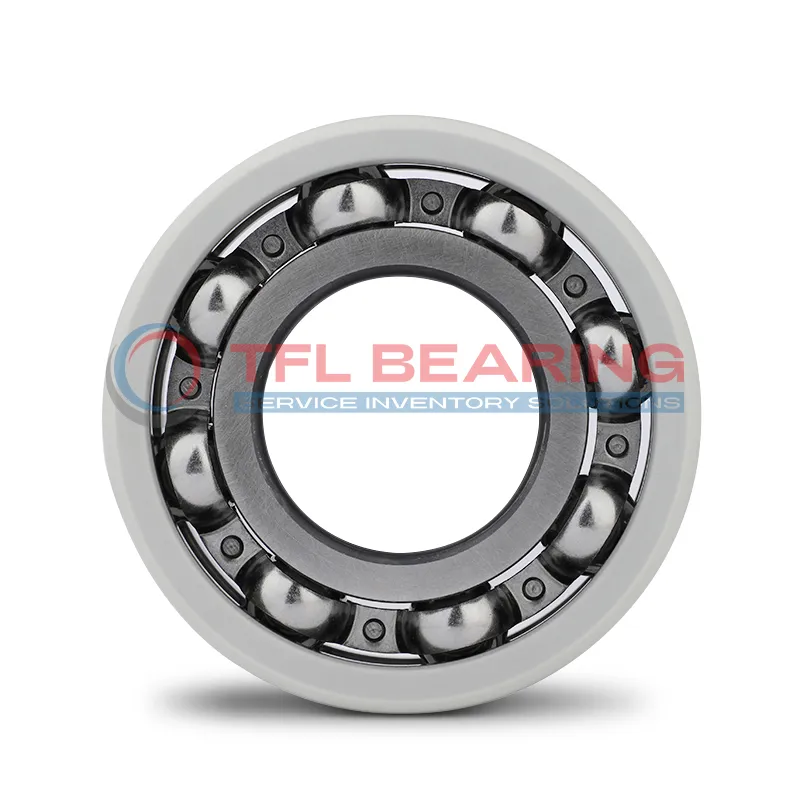

The SKF INSOCOAT bearing 6312/C3VL0241 measures 60mm in bore diameter, 130mm outside, and 31mm wide, with a net weight of 1.65kg. Its outer ring features a 500µm insulating coating, providing electrical resistance up to 200 MΩ.
This bearing handles dynamic loads up to 85.2 kN and static loads of 52.0 kN, with a reference speed of 11000 r/min. The C3 radial clearance allows for thermal expansion in demanding conditions.
The sheet metal cage ensures durability, while the VL0241 coating prevents electrical arcing. It’s ideal for electric motors or generators where current leakage is a concern.
Compliant with ROHS standards, this bearing suits industrial applications requiring reliable insulation and high-speed performance. Its breakdown voltage of 3000V DC makes it safe for electrical environments.
"*" indicates required fields
How Is 6312/C3VL0241 Bearing Engineered for Reliability?
6312/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
Its breakdown voltage reaches up to 3000 V, ensuring safe operation in electrically demanding applications.
The sheet metal cage maintains ball alignment, enhancing durability and reducing friction.
With a dynamic load rating of 85.2 kN, it handles heavy loads efficiently while maintaining smooth performance.
Industrial Uses of 6312/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing. The C3 clearance ensures reliable performance even under thermal expansion.
In automation systems, 6312/C3VL0241 Bearing handles high speeds up to 11000 r/min, making it suitable for robotic arms. Its sheet metal cage provides durability in continuous operation.
For wind turbine applications, 6312/C3VL0241 Bearing’s high dynamic load rating of 85.2 kN supports heavy rotor loads. The insulation coating also protects against stray currents in variable frequency drives.
What Makes 6312/C3VL0241 Bearing a Preferred Choice?
Its 500 µm insulation layer offers reliable protection in electrically noisy environments like industrial plants. The 200 MΩ resistance ensures consistent performance over time.
Built for Heavy-Duty Use: 6312/C3VL0241 Bearing
The 130 mm outer diameter provides stability in large machinery such as compressors. Chrome steel construction maintains precision under 52.0 kN static loads.
