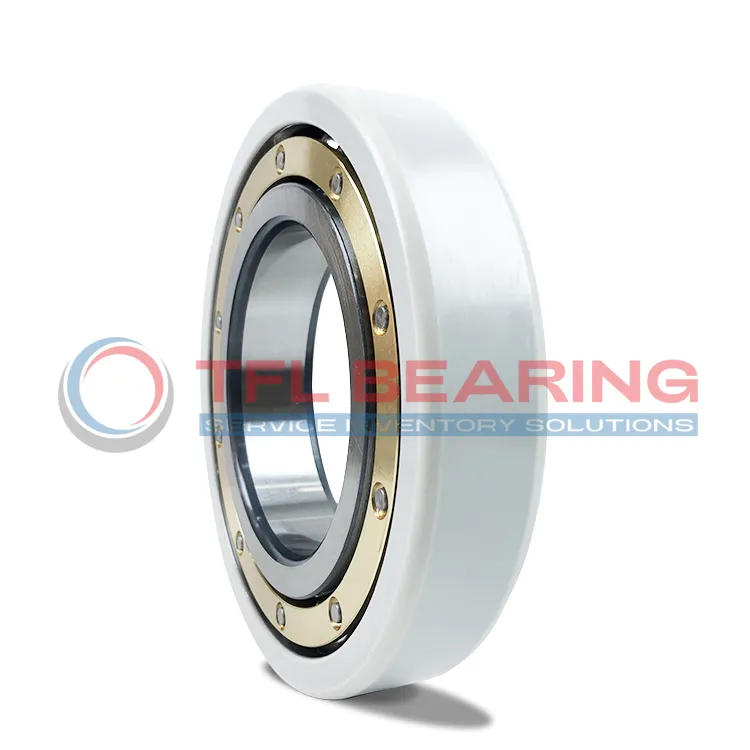

The SKF INSOCOAT bearing 6311M/C3VL0241 is a medium-sized unit with a 55mm bore and 120mm outer diameter, insulated to prevent electrical damage. It handles dynamic loads up to 83kN and spins smoothly at speeds up to 11000 RPM.
The outer ring features a 500µm insulating coating, offering protection against currents up to 3000V. Its brass cage ensures durability and stable performance under high-speed conditions.
With a C3 radial clearance, it accommodates thermal expansion in demanding environments. Ideal for electric motors or generators where electrical insulation is crucial.
Weighing 1.616kg, it’s robust yet manageable for industrial use. Compliant with RoHS standards for safe operation.
"*" indicates required fields
How Is 6311M/C3VL0241 Bearing Engineered for Reliability?
6311M/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
This design ensures reliable operation in environments with electrical interference.
The brass cage enhances durability and maintains ball alignment under high speeds.
With a basic dynamic load rating of 83.0 kN, it handles demanding applications with ease.
What Makes 6311M/C3VL0241 Bearing Suitable for High-Temperature Applications?
6311M/C3VL0241 Bearing’s insulation coating withstands high temperatures, ensuring consistent performance.
The C3 radial internal clearance allows for thermal expansion, reducing stress during operation.
Its reference speed of 11000 r/min makes it ideal for high-speed machinery.
The brass cage further enhances its ability to perform under thermal stress.
Built for Reliability: 6311M/C3VL0241 Bearing
6311M/C3VL0241 Bearing is designed with a robust brass cage, ensuring long-term durability.
The insulation coating provides protection against electrical damage, extending its service life.
With a breakdown voltage of ≤3000 V, it operates safely in electrically charged environments.
Its basic static load rating of 47.5 kN guarantees stability under heavy loads.
Steel vs Ceramic Bearings: Strengths of 6311M/C3VL0241 Bearing
6311M/C3VL0241 Bearing uses a brass cage for enhanced strength and reduced wear.
The insulation coating offers superior protection compared to standard steel bearings.
With a layer thickness of 500 µm, it ensures reliable insulation in harsh conditions.
Its electrical resistance of 200 MΩ makes it a dependable choice for sensitive applications.
Industrial Uses of 6311M/C3VL0241 Bearing
The 6311M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents.
Its brass cage and C3 clearance make it suitable for high-speed applications, ensuring reliable performance in demanding industrial environments.
Where Is 6311M/C3VL0241 Bearing Used?
You’ll often find 6311M/C3VL0241 Bearing in wind turbines, where its insulation properties protect against electrical arcing.
The bearing’s robust design also handles the variable loads and speeds typical in renewable energy systems.
Optimized for Performance: 6311M/C3VL0241 Bearing
In railway traction motors, 6311M/C3VL0241 Bearing’s high dynamic load rating ensures smooth operation under heavy loads.
The insulation coating adds an extra layer of reliability, making it a go-to choice for transport applications.
Medical vs Industrial: Where 6311M/C3VL0241 Bearing Excels
While not typically used in medical devices, 6311M/C3VL0241 Bearing shines in industrial settings like pumps and compressors.
Its ability to withstand electrical currents makes it ideal for equipment prone to electrical interference.
Practical Applications of 6311M/C3VL0241 Bearing
For HVAC systems, 6311M/C3VL0241 Bearing offers durability and resistance to electrical damage, extending equipment life.
The bearing’s design also accommodates thermal expansion, ensuring consistent performance in varying temperatures.
