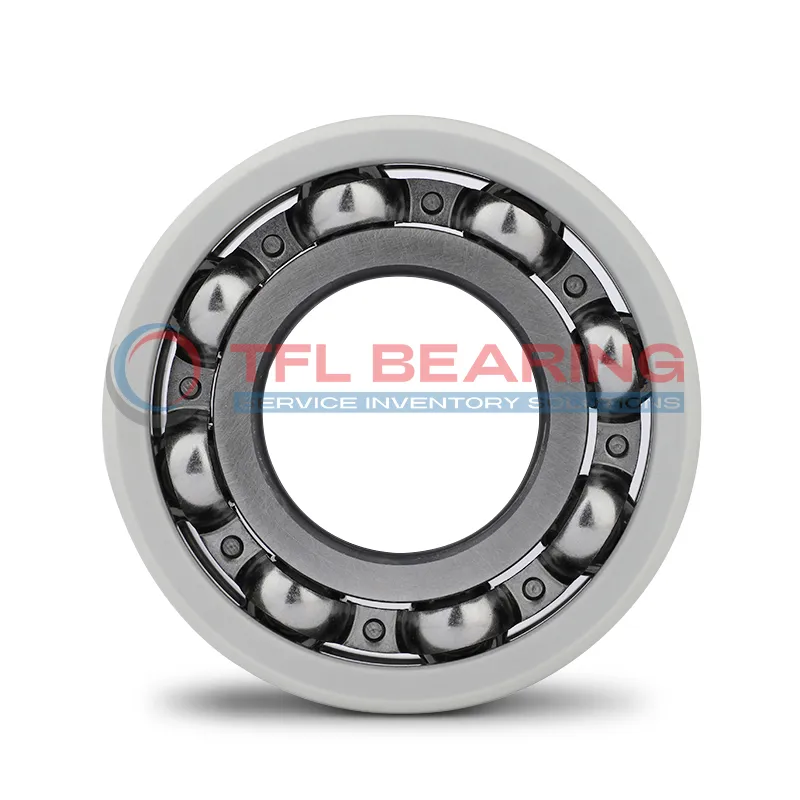

The SKF INSOCOAT bearing 6311/C3VL0241 is a medium-sized unit with a 55mm bore and 120mm outer diameter, featuring a durable insulation coating on the outer ring. It handles dynamic loads up to 83kN and spins smoothly at speeds up to 8500 RPM.
Its insulating coating provides protection against electrical currents, with a breakdown voltage of up to 3000V, making it ideal for electric motors. The sheet metal cage ensures reliable performance under high-speed conditions.
With a C3 radial internal clearance, it accommodates thermal expansion in demanding environments. The bearing is RoHS compliant, ensuring safe and eco-friendly use.
Weighing 1.37kg, it’s a robust choice for applications like industrial motors or generators where electrical insulation is crucial. The coating also offers an electrical resistance of 200 MΩ for added safety.
"*" indicates required fields
How Is 6311/C3VL0241 Bearing Engineered for Reliability?
6311/C3VL0241 Bearing features an insulating coating on the outer ring, protecting against electrical currents.
With a breakdown voltage of ≤3000 V, it ensures safe operation in electrically hazardous environments.
The sheet metal cage maintains ball alignment, enhancing durability under dynamic loads.
Its C3 radial internal clearance allows for thermal expansion, making it suitable for high-speed applications.
What Makes 6311/C3VL0241 Bearing Suitable for High-Temperature Applications?
6311/C3VL0241 Bearing’s insulation coating withstands high temperatures, ensuring consistent performance.
The C3 clearance accommodates thermal expansion, preventing premature wear.
With a reference speed of 8500 r/min, it balances speed and reliability.
Its basic dynamic load rating of 83.0 kN ensures long-lasting operation under heavy loads.
Performance Features of 6311/C3VL0241 Bearing
6311/C3VL0241 Bearing’s VL0241 coating provides excellent electrical resistance, up to 200 MΩ.
The 500 µm layer thickness ensures robust insulation against electrical damage.
Its basic static load rating of 47.5 kN guarantees stability in stationary applications.
The sheet metal cage reduces friction, contributing to smoother operation.
Why Choose 6311/C3VL0241 Bearing for Precision Tasks?

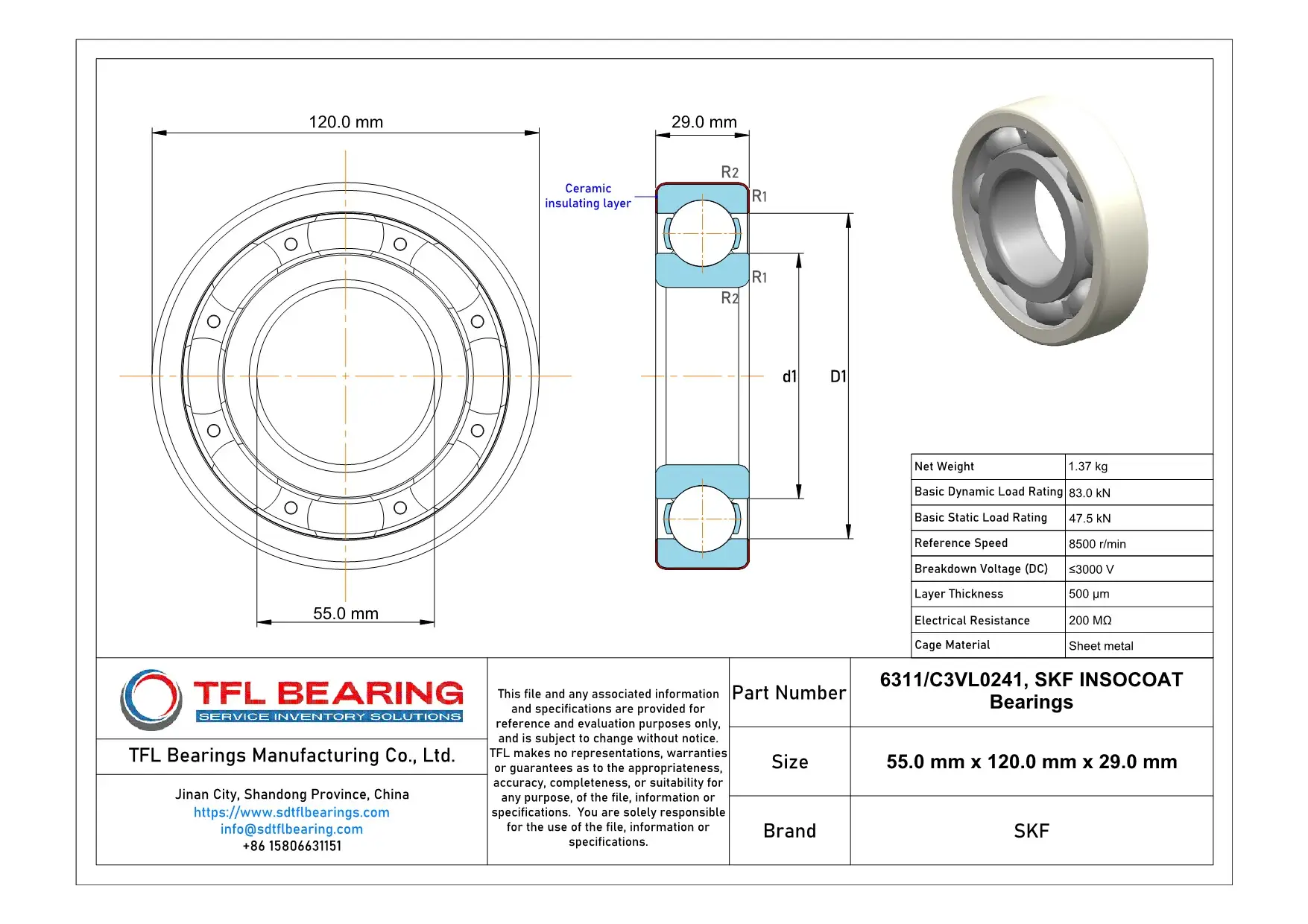

6311/C3VL0241 Bearing’s precise dimensions (55.0 mm x 120.0 mm x 29.0 mm) ensure accurate fitment.
The insulation coating prevents electrical arcing, protecting sensitive equipment.
Its high reference speed makes it ideal for precision machinery requiring fast rotation.
The C3 clearance provides flexibility in varying thermal conditions.
Designed for Durability: 6311/C3VL0241 Bearing
6311/C3VL0241 Bearing’s chrome steel construction resists wear, extending its service life.
The insulation coating adds an extra layer of protection against electrical damage.
With a net weight of 1.37 kg, it offers a balance of strength and lightweight design.
Its dynamic load rating of 83.0 kN ensures reliable performance in demanding applications.
Industrial Uses of 6311/C3VL0241 Bearing
The 6311/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends service life. Its C3 clearance ensures reliable performance in high-temperature industrial environments.
In wind turbine applications, 6311/C3VL0241 Bearing handles variable loads while maintaining insulation integrity. The sheet metal cage provides durability against harsh weather conditions.
For railway traction motors, 6311/C3VL0241 Bearing offers stable operation under heavy loads and electrical insulation. Its 500 µm coating thickness ensures consistent protection against current leakage.
What Makes 6311/C3VL0241 Bearing a Preferred Choice?
The 6311/C3VL0241 Bearing is ideal for conveyor systems in mining, where dust and moisture resistance are crucial. Its high breakdown voltage rating makes it safe for electrically noisy environments.
In industrial pumps, 6311/C3VL0241 Bearing reduces downtime with its robust design and insulation properties. The 200 MΩ electrical resistance ensures minimal energy loss during operation.
Built for Heavy-Duty Use: 6311/C3VL0241 Bearing
The 6311/C3VL0241 Bearing excels in steel mill equipment, handling both radial and axial loads effortlessly. Its 83 kN dynamic load rating makes it suitable for continuous operation.
For food processing machinery, 6311/C3VL0241 Bearing’s insulation coating prevents contamination from stray currents. The easy maintenance design keeps production lines running smoothly.
