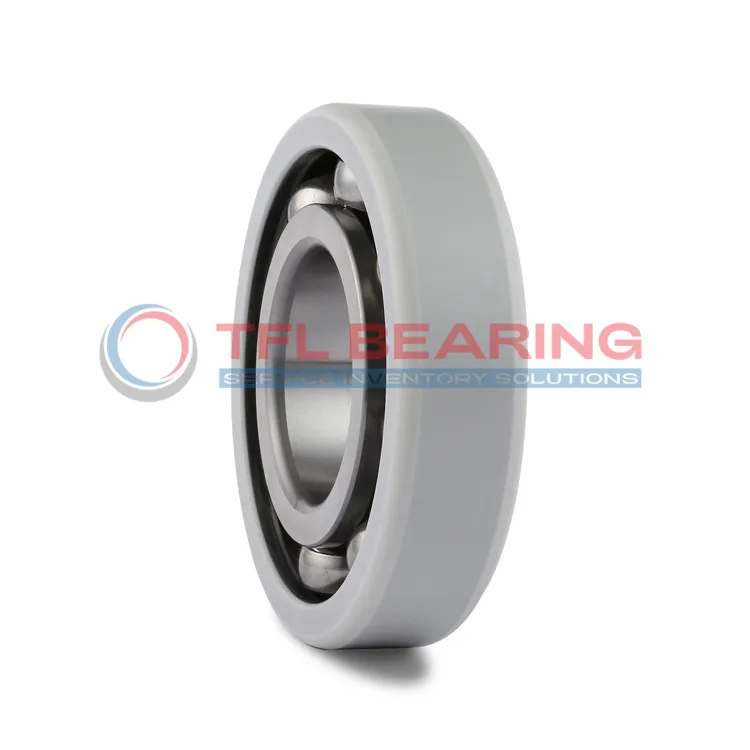

The SKF INSOCOAT bearing 6230/C3VL0241 is a robust unit measuring 150mm by 270mm by 45mm, with a durable insulation coating on its outer ring. It handles dynamic loads up to 186 kN and static loads up to 166 kN, suitable for high-speed applications up to 5000 RPM.
Its insulating coating provides electrical resistance of 200 MΩ, preventing current damage in electric motors or generators. The C3 radial clearance ensures smooth operation under varying temperatures and loads.
With a breakdown voltage of up to 3000V, it’s ideal for industrial machinery exposed to electrical currents. The sheet metal cage adds durability while keeping the weight manageable at 9.82kg.
Compliant with ROHS standards, this bearing is a reliable choice for heavy-duty applications where electrical insulation is crucial. Perfect for wind turbines or large electric motors.
"*" indicates required fields
How Is 6230/C3VL0241 Bearing Engineered for Reliability?
6230/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
Its breakdown voltage of up to 3000 V ensures safe operation in electrically demanding environments.
The sheet metal cage maintains ball alignment, enhancing durability and reducing wear.
With a basic dynamic load rating of 186.0 kN, it handles heavy loads efficiently.
6230/C3VL0241 Bearing operates at speeds up to 5000 r/min, balancing performance and longevity.
Its C3 radial internal clearance allows for thermal expansion in high-speed applications.
The insulation coating has a thickness of 500 µm, offering reliable electrical resistance.
This makes 6230/C3VL0241 Bearing suitable for use in motors and generators.
Industrial Uses of 6230/C3VL0241 Bearing
The 6230/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its robust design ensures reliable performance in high-speed industrial applications.
What Makes 6230/C3VL0241 Bearing a Preferred Choice?
With a breakdown voltage of up to 3000 V, 6230/C3VL0241 Bearing is ideal for environments prone to electrical discharge, such as wind turbines. The C3 radial clearance also accommodates thermal expansion in demanding conditions.
Perfect Fit for Automation: 6230/C3VL0241 Bearing
In automated production lines, 6230/C3VL0241 Bearing’s high dynamic load rating of 186 kN supports heavy-duty robotic arms. The sheet metal cage enhances durability while maintaining smooth operation.
Automotive vs Aerospace: Applications of 6230/C3VL0241 Bearing
While 6230/C3VL0241 Bearing is suitable for automotive alternators, its insulation properties make it equally valuable in aerospace electrical systems. The 500 µm coating thickness ensures long-term protection against electrical wear.
Essential Roles of 6230/C3VL0241 Bearing
For medical imaging devices, 6230/C3VL0241 Bearing’s precision and insulation reduce interference risks. Its 200 MΩ electrical resistance guarantees stable performance in sensitive equipment.
