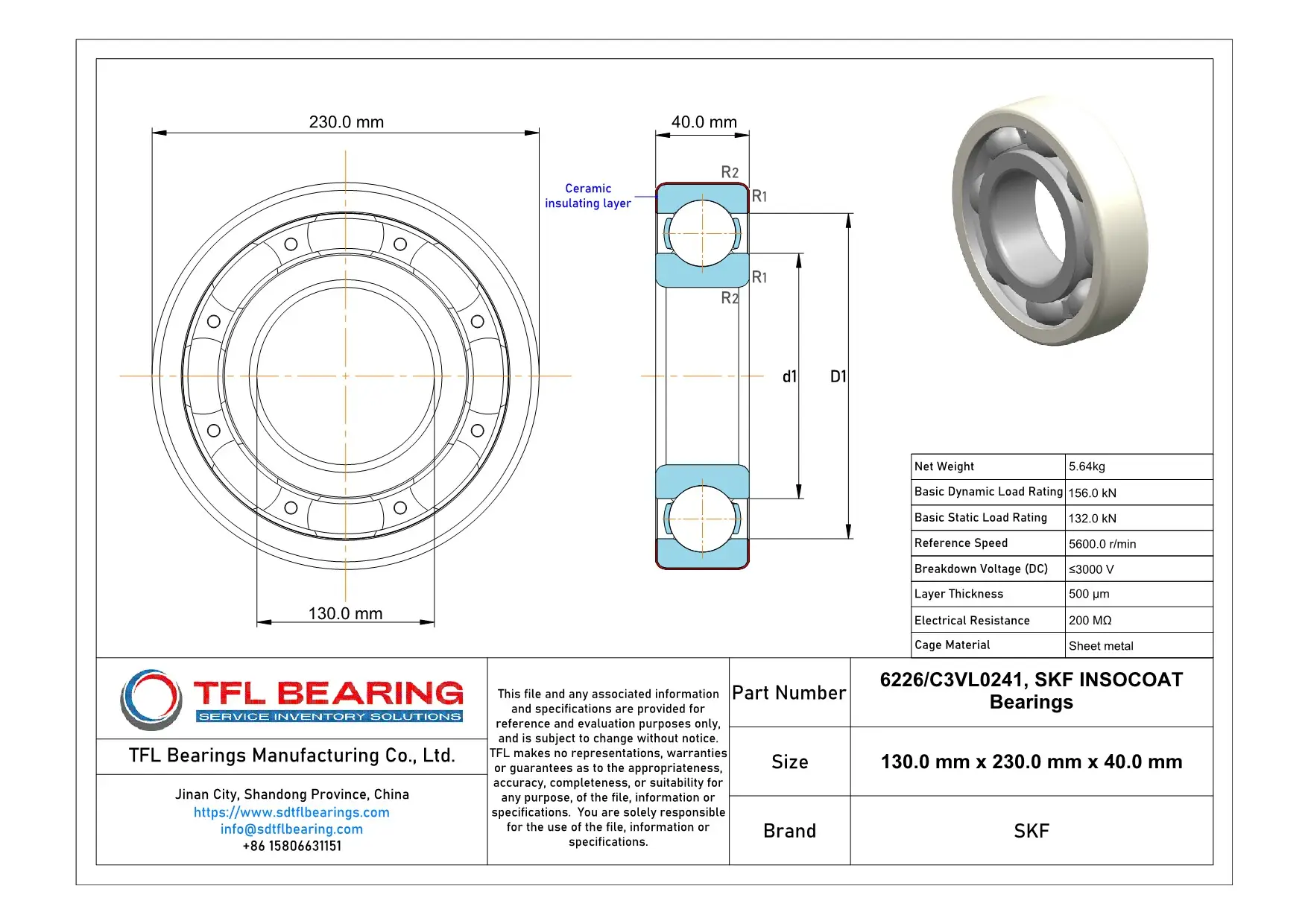

The SKF INSOCOAT bearing 6226/C3VL0241 is a robust unit measuring 130mm by 230mm by 40mm, featuring an insulating coating on the outer ring. It handles dynamic loads up to 156 kN and spins smoothly at speeds up to 5600 RPM.
Its VL0241 coating provides electrical insulation with a breakdown voltage of 3000V, ideal for preventing current damage in electric motors. The sheet metal cage ensures durability and reliable performance.
With a C3 radial clearance, it accommodates thermal expansion in demanding conditions. Weighing 5.64kg, it’s a solid choice for heavy-duty applications.
This bearing suits industrial machinery where electrical insulation is crucial, such as generators or traction motors. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Is 6226/C3VL0241 Bearing Engineered for Reliability?
6226/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
Its breakdown voltage of up to 3000 V ensures safe operation in electrically demanding applications.
The sheet metal cage maintains ball alignment, enhancing durability and reducing wear.
With a dynamic load rating of 156 kN, it handles heavy loads efficiently while maintaining smooth operation.
Industrial Uses of 6226/C3VL0241 Bearing
The 6226/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its C3 clearance ensures reliable performance even under thermal expansion.
Where Is 6226/C3VL0241 Bearing Used?
You’ll find 6226/C3VL0241 Bearing in wind turbines, where its high dynamic load rating handles the demanding conditions. The sheet metal cage adds durability, making it a solid choice for renewable energy applications.
Built for Heavy-Duty Use: 6226/C3VL0241 Bearing
In industrial pumps, 6226/C3VL0241 Bearing’s insulation coating protects against electrical corrosion, extending service life. Its 230 mm outer diameter provides stability in high-vibration environments.
Automotive vs Aerospace: Applications of 6226/C3VL0241 Bearing
While 6226/C3VL0241 Bearing suits automotive alternators, its aerospace applications include auxiliary power units. The VL0241 coating ensures consistent performance in both fields.
Perfect Fit for Automation: 6226/C3VL0241 Bearing
For robotic arms, 6226/C3VL0241 Bearing offers smooth rotation thanks to its C3 clearance. The 40 mm width balances space constraints with load capacity.
