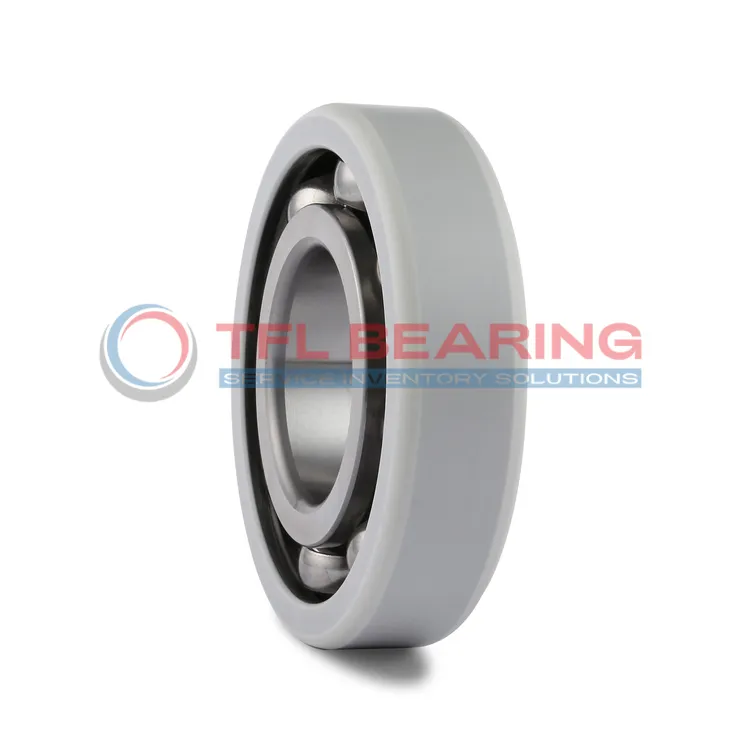

The SKF INSOCOAT bearing 6224/C3VL0241 measures 120mm in bore diameter and 215mm outside, with a width of 40mm. It features an insulating coating on the outer ring to prevent electrical damage.
With a dynamic load rating of 146kN and a static load rating of 118kN, it handles heavy loads smoothly. Its reference speed reaches 6300 r/min, making it suitable for high-speed applications.
The insulation coating offers a breakdown voltage of up to 3000V and an electrical resistance of 200 MΩ, protecting against current leakage. The C3 radial clearance ensures reliable performance under varying temperatures.
Ideal for electric motors or generators, this bearing is ROHS compliant and weighs 5.2kg. Its sheet metal cage provides durability in demanding environments.
"*" indicates required fields
How Is 6224/C3VL0241 Bearing Engineered for Reliability?
6224/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
Its breakdown voltage reaches up to 3000 V, making it suitable for high-voltage environments.
The sheet metal cage ensures stability and alignment, enhancing performance under dynamic loads.
With a basic dynamic load rating of 146.0 kN, it handles demanding applications with ease.
What Makes 6224/C3VL0241 Bearing Suitable for High-Temperature Applications?
6224/C3VL0241 Bearing is designed with a robust insulation coating, ensuring reliable operation in high-temperature settings.
The C3 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.
Its reference speed of 6300 r/min ensures efficient operation in fast-moving machinery.
The coating’s electrical resistance of 200 MΩ prevents current damage, extending service life.
Built for Reliability: 6224/C3VL0241 Bearing
6224/C3VL0241 Bearing’s insulation coating offers excellent protection against electrical erosion.
The basic static load rating of 118.0 kN ensures durability under heavy loads.
Its layer thickness of 500 µm provides consistent insulation performance.
The bearing’s design minimises maintenance needs, reducing downtime.
Steel vs Ceramic Bearings: Strengths of 6224/C3VL0241 Bearing
6224/C3VL0241 Bearing combines chrome steel construction with an advanced insulation coating for enhanced durability.
The VL0241 coating suffix indicates specialised protection against electrical damage.
Its net weight of 5.2 kg balances strength and ease of handling.
The bearing’s compliant ROHS status ensures environmental safety.
Industrial Uses of 6224/C3VL0241 Bearing
The 6224/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its C3 clearance ensures reliable performance in high-temperature industrial environments.
Where Is 6224/C3VL0241 Bearing Used?
You’ll find the 6224/C3VL0241 Bearing in wind turbines and railway traction motors, thanks to its ability to handle high dynamic loads. The sheet metal cage provides durability while maintaining smooth rotation.
Built for Heavy-Duty Use: 6224/C3VL0241 Bearing
In mining equipment, the 6224/C3VL0241 Bearing stands up to harsh conditions with its robust construction. The VL0241 coating offers extra protection against electrical erosion in demanding applications.
Automotive vs Aerospace: Applications of 6224/C3VL0241 Bearing
While the 6224/C3VL0241 Bearing suits automotive alternators well, it’s equally effective in aerospace ground power units. The 500µm insulation layer makes it versatile for various electrical environments.
Perfect Fit for Automation: 6224/C3VL0241 Bearing
The 6224/C3VL0241 Bearing works smoothly in robotic assembly lines, where consistent speed matters. Its 6300 r/min rating ensures reliable operation in precision automation systems.
