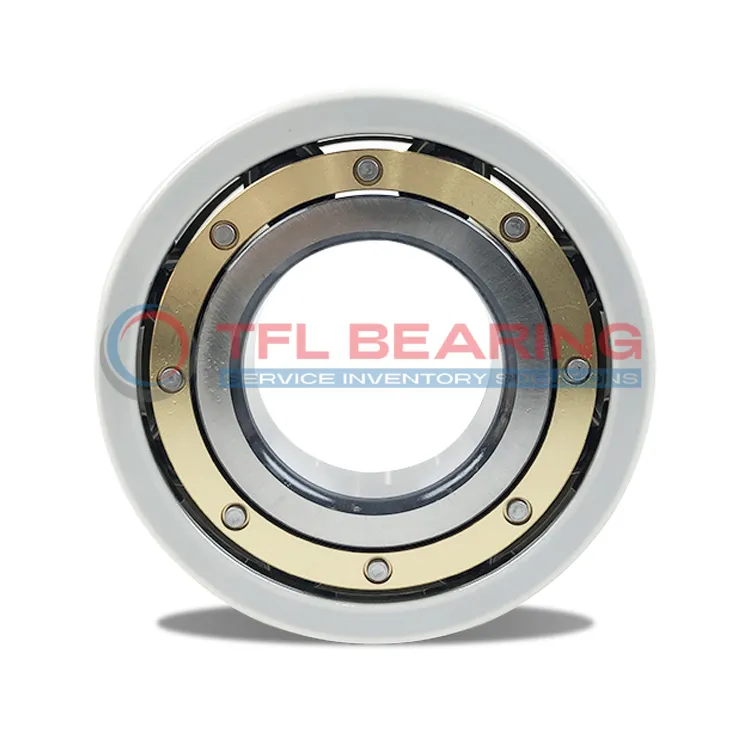

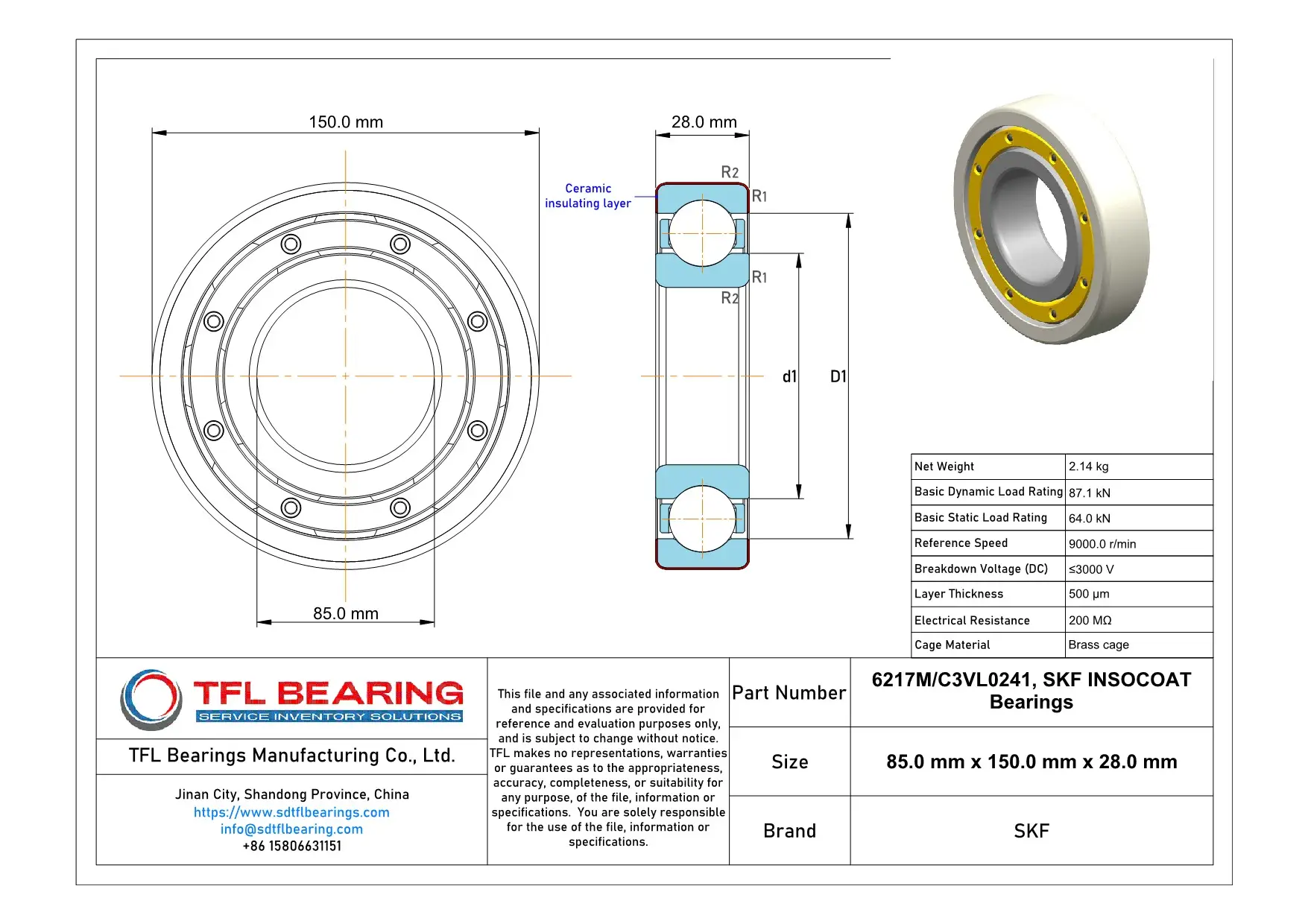

The SKF 6217M/C3VL0241 is an INSOCOAT bearing with an 85mm bore and 150mm outer diameter, featuring a 28mm width. Its outer ring has a 500µm insulating coating, providing protection against electrical currents.
This bearing handles dynamic loads up to 87.1 kN and spins smoothly at speeds up to 9000 RPM. The brass cage ensures durability and stable performance under high-speed conditions.
With a breakdown voltage of up to 3000V and electrical resistance of 200 MΩ, it prevents damage from stray currents. The C3 radial clearance allows for thermal expansion in demanding environments.
Ideal for electric motors or generators where electrical insulation is needed. Compliant with RoHS standards, it’s a reliable choice for industrial applications. Weighing 2.14kg, it balances strength and practicality.
"*" indicates required fields
How Is 6217M/C3VL0241 Bearing Engineered for Reliability?
6217M/C3VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents and extending its lifespan.
The brass cage ensures smooth operation, even at high speeds up to 9,000 r/min.
With a basic dynamic load rating of 87.1 kN, 6217M/C3VL0241 Bearing handles heavy loads effortlessly.
Its C3 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
The coating provides a breakdown voltage of up to 3,000 V, ideal for electric motor applications.
6217M/C3VL0241 Bearing’s design balances durability and performance in demanding environments.
Industrial Uses of 6217M/C3VL0241 Bearing
6217M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends service life. The brass cage ensures smooth operation even at high speeds.
What Makes 6217M/C3VL0241 Bearing a Preferred Choice?
In automation systems, 6217M/C3VL0241 Bearing handles high dynamic loads efficiently, making it suitable for robotic arms and conveyor belts. Its C3 clearance allows for thermal expansion in demanding environments.
Perfect Fit for Automation: 6217M/C3VL0241 Bearing
6217M/C3VL0241 Bearing works well in 3D printers and CNC machines, where precision and reliability are key. The insulation coating also protects against stray currents in sensitive electronic setups.
Automotive vs Aerospace: Applications of 6217M/C3VL0241 Bearing
In automotive alternators, 6217M/C3VL0241 Bearing resists electrical damage, while in aerospace, its lightweight design and durability suit auxiliary power units. The high reference speed ensures consistent performance.
