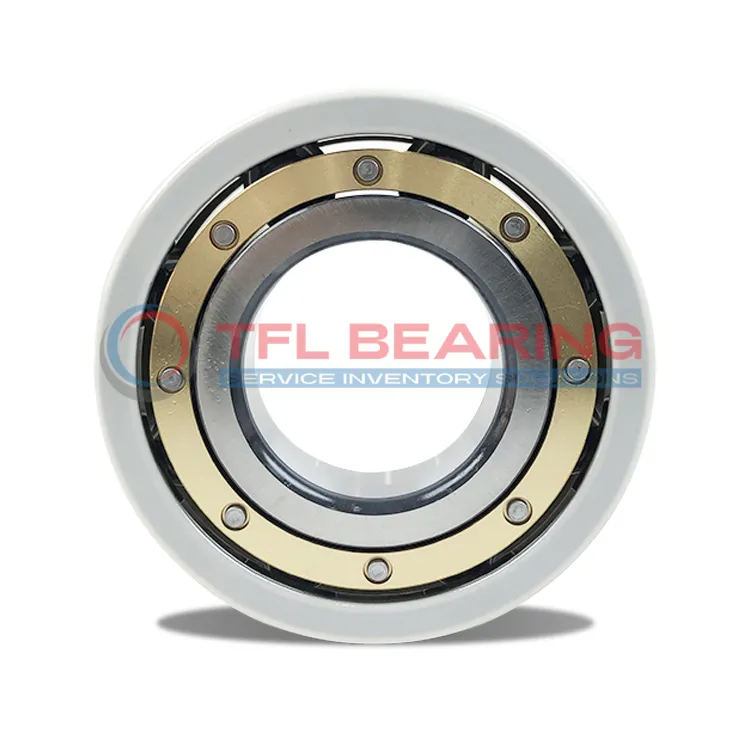

The SKF 6216M/C4VL0241 is an INSOCOAT bearing with an 80mm bore, 140mm outer diameter, and 26mm width, featuring a durable insulation coating on the outer ring.
It handles dynamic loads up to 72.8 kN and spins smoothly at speeds up to 9500 RPM, making it suitable for high-performance applications. The brass cage ensures stability, while the C4 radial clearance allows for thermal expansion.
The insulating coating provides electrical resistance up to 200 MΩ and withstands voltages up to 3000V, ideal for preventing electrical damage in motors or generators.
Weighing 1.71kg, it’s a robust choice for industrial machinery where electrical insulation is crucial. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of 6216M/C4VL0241 Bearing
6216M/C4VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
This design prevents damage from stray currents, making it ideal for electric motors and generators.
The brass cage ensures smooth operation and reduces friction, enhancing overall efficiency.
With a basic dynamic load rating of 72.8 kN, it handles heavy loads reliably.
How Does 6216M/C4VL0241 Bearing Resist Wear?
6216M/C4VL0241 Bearing’s insulation coating offers excellent protection against electrical erosion.
The brass cage maintains ball alignment, minimising wear even at high speeds up to 9,500 r/min.
Its C4 radial internal clearance allows for thermal expansion, ensuring consistent performance.
The coating’s breakdown voltage of ≤3000 V adds an extra layer of durability.
Engineered for Precision: 6216M/C4VL0241 Bearing
6216M/C4VL0241 Bearing is designed for applications requiring high precision and electrical insulation.
The 500 µm thick coating provides reliable protection, with an electrical resistance of 200 MΩ.
Its robust construction supports a static load rating of 55.0 kN, ensuring long-term reliability.
The bearing’s dimensions (80.0 mm x 140.0 mm x 26.0 mm) make it suitable for various industrial uses.
Steel vs Ceramic Bearings: Strengths of 6216M/C4VL0241 Bearing
6216M/C4VL0241 Bearing combines the strength of steel with advanced insulation technology.
The outer ring’s coating prevents electrical damage, unlike standard steel bearings.
Its brass cage offers superior durability compared to ceramic options in high-load scenarios.
With a net weight of 1.71 kg, it balances strength and practicality for diverse applications.
Industrial Uses of 6216M/C4VL0241 Bearing
The 6216M/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents.
Its brass cage and C4 clearance make it suitable for high-speed applications, ensuring smooth operation even under varying loads.
Where Is 6216M/C4VL0241 Bearing Used?
You’ll often find the 6216M/C4VL0241 Bearing in wind turbines and industrial pumps, where its high dynamic load rating handles demanding conditions.
The insulation coating also makes it a reliable choice for frequency converters, reducing downtime caused by electrical wear.
Built for Heavy-Duty Use: 6216M/C4VL0241 Bearing
The 6216M/C4VL0241 Bearing excels in conveyor systems and compressors, thanks to its robust design and high reference speed.
Its breakdown voltage of up to 3000 V adds an extra layer of protection in electrically noisy environments.
Automotive vs Aerospace: Applications of 6216M/C4VL0241 Bearing
In automotive applications, the 6216M/C4VL0241 Bearing supports alternators and starter motors, where insulation is key to longevity.
For aerospace, its lightweight yet durable construction makes it ideal for auxiliary power units and other critical systems.
Perfect Fit for Automation: 6216M/C4VL0241 Bearing
The 6216M/C4VL0241 Bearing is a go-to choice for robotic arms and CNC machines, offering precision and reliability.
Its electrical resistance of 200 MΩ ensures consistent performance in automated systems with variable frequencies.
