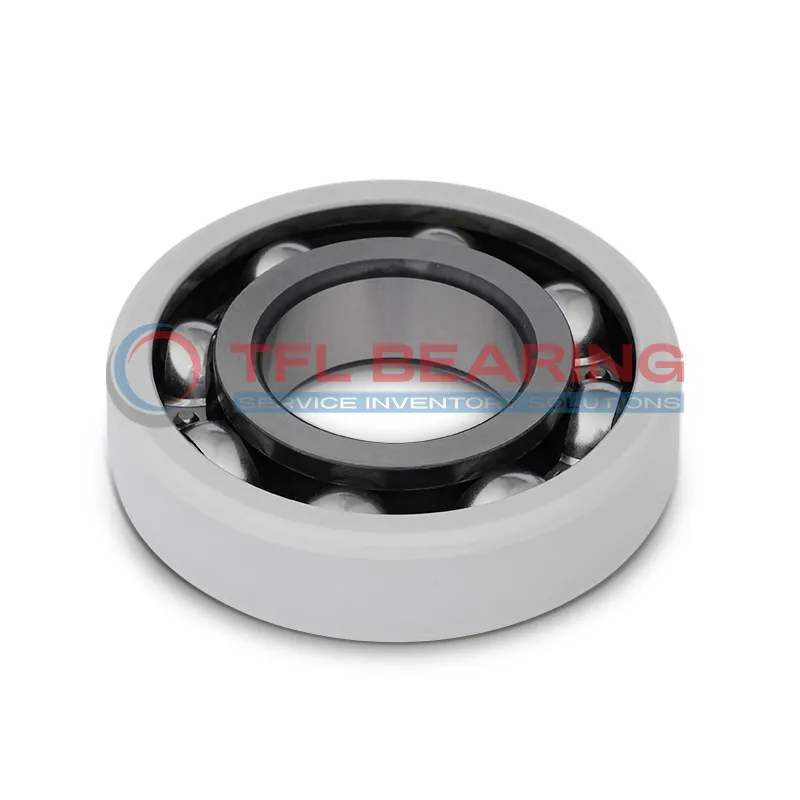

The SKF 6216/C4VL0241 is an INSOCOAT bearing with an 80mm bore, 140mm outer diameter, and 26mm width, featuring a durable insulation coating on the outer ring. It handles dynamic loads up to 72.8 kN and spins smoothly at speeds up to 9500 RPM.
Its VL0241 coating provides electrical resistance of 200 MΩ, preventing current damage in electric motors or generators. The C4 radial clearance ensures reliable performance under varying temperatures.
With a breakdown voltage of 3000V and a 500µm coating thickness, it’s ideal for high-voltage applications. The sheet metal cage adds durability while keeping the weight at 1.43kg.
Compliant with RoHS standards, this bearing suits industrial machinery, wind turbines, or any equipment requiring electrical insulation. Its robust design balances load capacity and speed for long-term use.
"*" indicates required fields
How Is 6216/C4VL0241 Bearing Engineered for Reliability?
6216/C4VL0241 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
The coating provides a breakdown voltage of up to 3000 V, ensuring safe operation in electrically demanding applications.
With a basic dynamic load rating of 72.8 kN, it handles heavy loads while maintaining performance.
The sheet metal cage ensures stable operation at speeds up to 9,500 r/min.
Why Choose 6216/C4VL0241 Bearing for Precision Tasks?
6216/C4VL0241 Bearing’s insulation coating offers an electrical resistance of 200 MΩ, reducing the risk of current leakage.
Its C4 radial internal clearance allows for thermal expansion, maintaining precision under varying temperatures.
The bearing’s dimensions (80.0 mm x 140.0 mm x 26.0 mm) make it suitable for compact yet high-performance applications.
Weighing just 1.43 kg, it balances strength and ease of installation.
Built for Reliability: 6216/C4VL0241 Bearing
6216/C4VL0241 Bearing’s robust design includes a sheet metal cage for enhanced durability and alignment.
The insulation coating, with a layer thickness of 500 µm, ensures long-term protection against electrical currents.
Its static load rating of 55.0 kN guarantees stability in stationary applications.
ROHS compliance confirms its adherence to environmental and safety standards.
Steel vs Ceramic Bearings: Strengths of 6216/C4VL0241 Bearing
6216/C4VL0241 Bearing uses high-quality materials, including a sheet metal cage, for reliable performance.
The insulation coating sets it apart, offering protection not found in standard steel bearings.
With a reference speed of 9,500 r/min, it outperforms many ceramic alternatives in high-speed scenarios.
Its compact design and weight make it a versatile choice for various industrial applications.
Industrial Uses of 6216/C4VL0241 Bearing
You’ll often spot 6216/C4VL0241 Bearing in electric motors and generators, where its insulating coating prevents electrical damage. The C4 clearance helps manage thermal expansion during high-speed operation.
Where Is 6216/C4VL0241 Bearing Used?
This bearing shines in wind turbine applications, handling both radial loads and electrical insulation needs. Its sheet metal cage keeps things lightweight yet durable for continuous operation.
Built for Heavy-Duty Use: 6216/C4VL0241 Bearing
In industrial pumps, 6216/C4VL0241 Bearing’s 72.8 kN dynamic load rating ensures reliable performance under pressure. The 500µm coating thickness provides consistent insulation even in harsh environments.
Automotive vs Aerospace: Applications of 6216/C4VL0241 Bearing
While 6216/C4VL0241 Bearing suits hybrid vehicle drivetrains, it’s equally at home in aircraft auxiliary systems. The VL0241 coating suffix guarantees protection against stray currents in both fields.
Perfect Fit for Automation: 6216/C4VL0241 Bearing
Robotic arms benefit from 6216/C4VL0241 Bearing’s 9500 r/min reference speed for smooth, precise movements. The 200 MΩ resistance prevents current leakage that could disrupt sensitive electronics.
