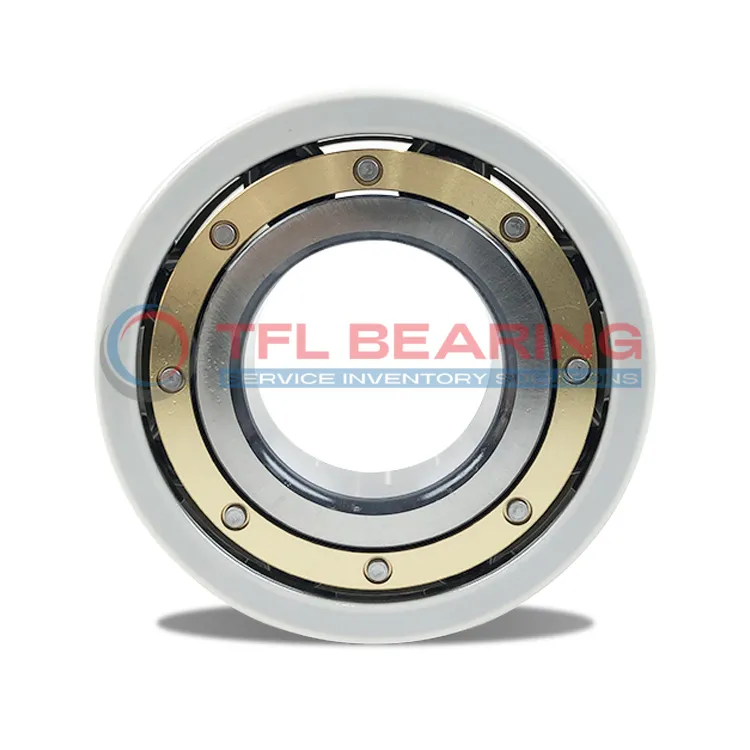

The SKF 6215M/C4VL0241 is an INSOCOAT bearing with a 75mm bore and 130mm outer diameter, featuring a 25mm width and weighing 1.45kg. Its outer ring has a 500µm insulating coating, providing electrical resistance up to 200 MΩ.
This bearing handles dynamic loads up to 68.9 kN and static loads of 49.0 kN, with a reference speed of 10,000 RPM. The brass cage ensures smooth operation, while the C4 radial clearance offers flexibility in high-temperature applications.
The insulation coating prevents electrical arcing, making it ideal for electric motors or generators. It’s ROHS compliant and suits environments where electrical insulation is crucial.
With a breakdown voltage of up to 3000V, it’s a reliable choice for industrial machinery exposed to stray currents. The compact design fits well in space-constrained setups.
"*" indicates required fields
How Is 6215M/C4VL0241 Bearing Engineered for Reliability?
6215M/C4VL0241 Bearing features an insulating coating on the outer ring, protecting against electrical currents.
This design ensures smooth operation in environments with electrical interference.
The brass cage enhances durability and maintains ball alignment under high-speed conditions.
With a breakdown voltage of up to 3000 V, it offers reliable insulation for sensitive applications.
What Makes 6215M/C4VL0241 Bearing Suitable for High-Temperature Applications?
6215M/C4VL0241 Bearing’s insulation coating withstands high temperatures, ensuring consistent performance.
Its C4 radial internal clearance allows for thermal expansion, reducing stress during operation.
The brass cage provides stability, even under heavy loads and high speeds.
This makes it ideal for industrial applications where temperature fluctuations are common.
Performance Features of 6215M/C4VL0241 Bearing
6215M/C4VL0241 Bearing offers a basic dynamic load rating of 68.9 kN, handling demanding conditions with ease.
The insulation coating prevents electrical damage, extending the bearing’s service life.
Its reference speed of 10,000 r/min ensures efficient performance in high-speed applications.
The combination of durability and insulation makes it a versatile choice for various industries.
Why Choose 6215M/C4VL0241 Bearing for Precision Tasks?
6215M/C4VL0241 Bearing’s precise dimensions (75.0 mm x 130.0 mm x 25.0 mm) ensure accurate fit and function.
The insulation coating eliminates electrical arcing, protecting sensitive equipment.
Its brass cage maintains smooth operation, even under high rotational speeds.
This makes it a reliable option for precision machinery and electrical applications.
Enhanced for Longevity: 6215M/C4VL0241 Bearing
6215M/C4VL0241 Bearing’s insulation coating and brass cage work together to reduce wear and tear.
The C4 radial clearance accommodates thermal expansion, preventing premature failure.
With a static load rating of 49.0 kN, it handles heavy loads without compromising performance.
These features ensure a long service life, even in challenging operating conditions.
Industrial Uses of 6215M/C4VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage. The brass cage ensures smooth operation even at high speeds.
Where Is 6215M/C4VL0241 Bearing Used?
You’ll find it in industrial fans and pumps, handling moderate radial loads with ease. Its C4 clearance makes it suitable for applications with thermal expansion.
Built for Heavy-Duty Use: 6215M/C4VL0241 Bearing
In conveyor systems, this bearing withstands continuous operation without compromising performance. The VL0241 coating adds extra protection against electrical currents.
Automotive vs Aerospace: Applications of 6215M/C4VL0241 Bearing
While used in automotive alternators, it’s also found in aerospace ground support equipment. The 130mm OD provides stability across different load conditions.
Perfect Fit for Automation: 6215M/C4VL0241 Bearing
Robotic arms benefit from its 25mm width and consistent electrical resistance. The 1.45kg weight balances durability with manageable installation.
