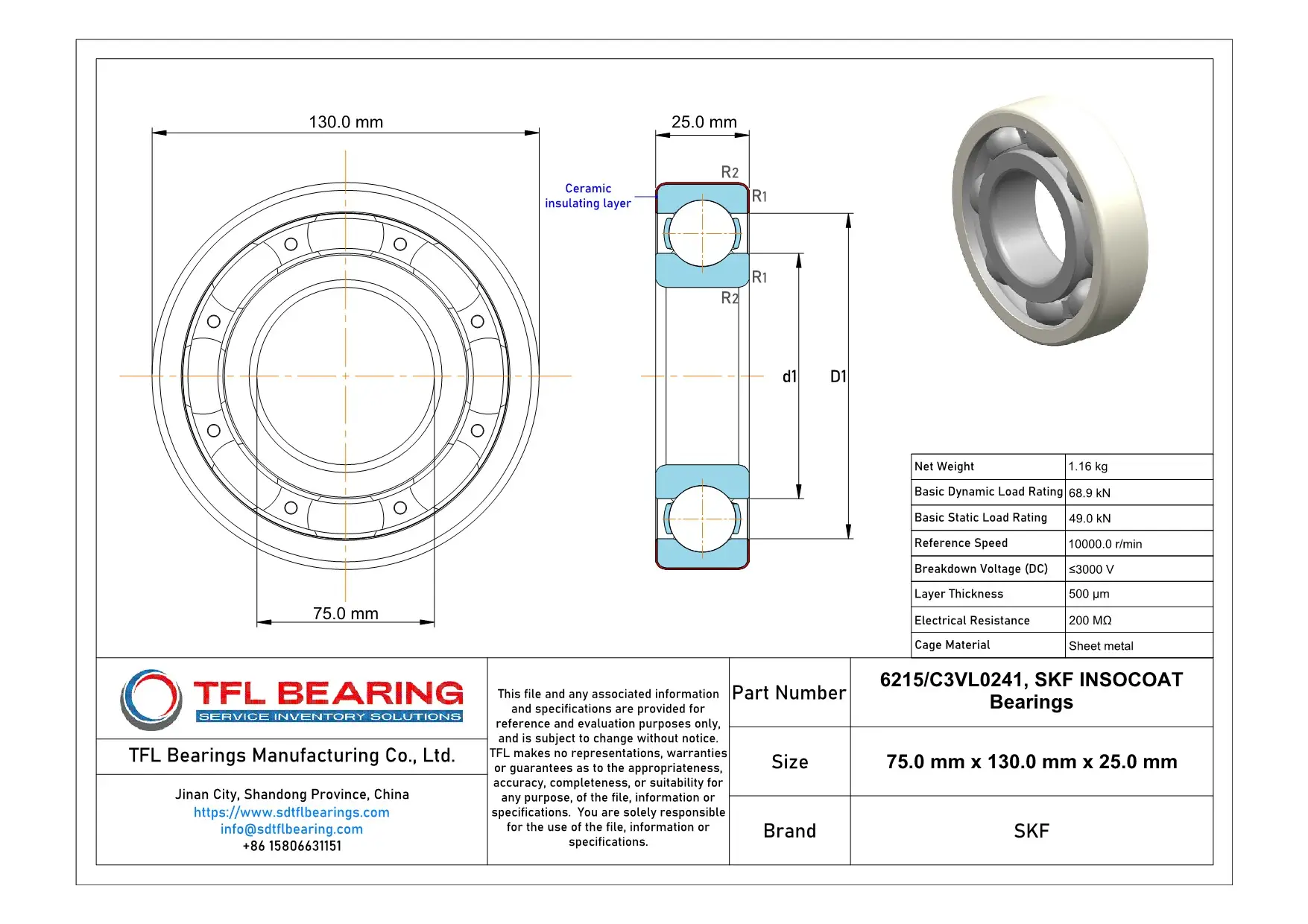

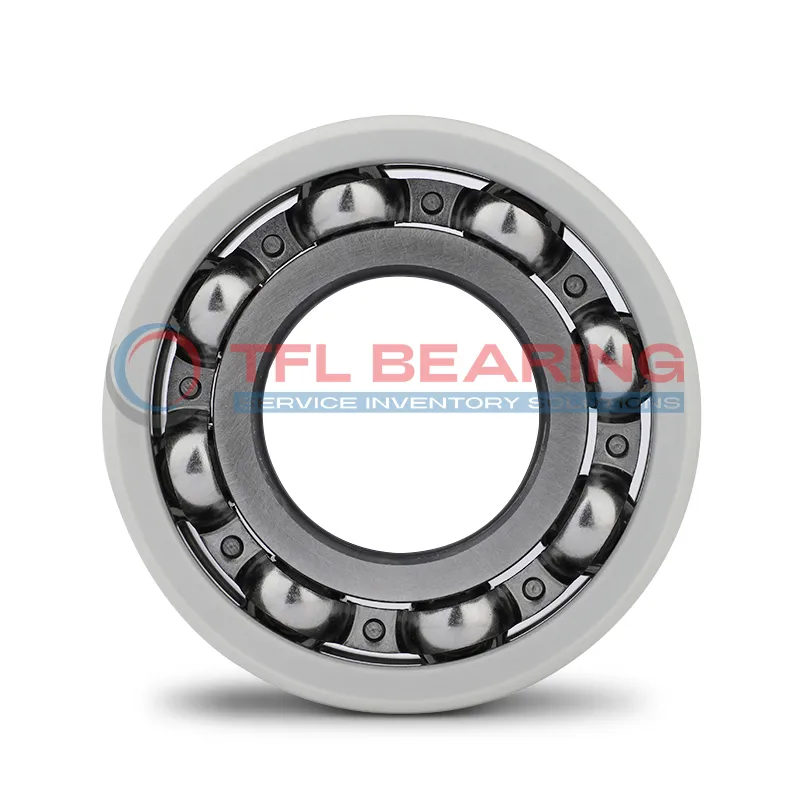

The SKF 6215/C3VL0241 is an INSOCOAT bearing with a 75mm bore and 130mm outer diameter, featuring a durable insulation coating on the outer ring. It handles dynamic loads up to 68.9 kN and spins smoothly at speeds up to 10,000 RPM.
Its VL0241 coating provides electrical resistance of 200 MΩ, protecting against current damage in electric motors. The sheet metal cage ensures reliable performance under high-speed conditions.
With a C3 radial clearance, it accommodates thermal expansion in demanding environments. Ideal for industrial motors or generators where electrical insulation is crucial.
Weighing 1.16kg, it’s robust yet manageable for its size. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Is 6215/C3VL0241 Bearing Engineered for Reliability?
6215/C3VL0241 Bearing features an insulation coating on the outer ring, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.
The sheet metal cage maintains ball alignment, enhancing durability and performance.
With a breakdown voltage of up to 3000 V, it offers excellent electrical resistance.
What Makes 6215/C3VL0241 Bearing Suitable for High-Temperature Applications?
6215/C3VL0241 Bearing can handle high-speed operations up to 10,000 r/min without compromising performance.
Its insulation coating withstands electrical stress, making it ideal for demanding industrial applications.
The C3 radial internal clearance allows for thermal expansion, ensuring stability under varying temperatures.
This bearing is built to last, even in challenging conditions.
Designed for Durability: 6215/C3VL0241 Bearing
6215/C3VL0241 Bearing’s robust construction includes a sheet metal cage for enhanced strength.
The insulation coating prevents electrical damage, extending the bearing’s service life.
With a basic dynamic load rating of 68.9 kN, it handles heavy loads with ease.
Its reliable performance makes it a top choice for industrial applications.
Steel vs Ceramic Bearings: Strengths of 6215/C3VL0241 Bearing
6215/C3VL0241 Bearing uses high-quality materials, including a sheet metal cage for durability.
The insulation coating provides added protection, unlike standard ceramic bearings.
With a static load rating of 49.0 kN, it offers reliable performance under pressure.
This bearing combines strength and electrical resistance for versatile use.
Industrial Uses of 6215/C3VL0241 Bearing
The 6215/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its C3 clearance ensures reliable performance in high-temperature environments.
In automation systems, 6215/C3VL0241 Bearing supports robotic arms and conveyor belts, thanks to its durable sheet metal cage. The 130mm outer diameter provides stability for heavy-duty operations.
For wind turbine applications, 6215/C3VL0241 Bearing handles variable loads while maintaining electrical insulation. Its 25mm width offers a compact solution for space-constrained designs.
Where Is 6215/C3VL0241 Bearing Used?
You’ll find 6215/C3VL0241 Bearing in industrial pumps where electrical insulation is needed to prevent bearing currents. The VL0241 coating ensures consistent performance even in humid conditions.
This bearing works well in railway traction motors, handling both radial loads and electrical isolation. Its 75mm bore fits standard shaft sizes for easy replacement.
In food processing equipment, 6215/C3VL0241 Bearing resists corrosion while maintaining electrical safety. The 1.16kg weight strikes a good balance between strength and portability.
Built for Heavy-Duty Use: 6215/C3VL0241 Bearing
6215/C3VL0241 Bearing excels in mining equipment, where its 68.9kN dynamic load rating handles intense vibrations. The 500µm insulation layer protects against electrical pitting.
For HVAC systems, this bearing operates quietly at speeds up to 10000r/min. Its 49.0kN static load rating ensures long service life in continuous operation.
In printing machinery, 6215/C3VL0241 Bearing maintains precision alignment despite rapid direction changes. The metal cage provides excellent heat dissipation during extended runs.
Medical vs Industrial: Where 6215/C3VL0241 Bearing Excels
In medical imaging devices, 6215/C3VL0241 Bearing’s electrical insulation prevents interference with sensitive electronics. The ROHS compliance meets strict health sector requirements.
For industrial compressors, this bearing’s 200 MΩ resistance prevents current leakage. Its 25mm width fits standard housing designs without modification.
The 6215/C3VL0241 Bearing outperforms standard bearings in welding equipment, where electrical isolation is critical. The C3 clearance accommodates thermal expansion during intense operations.
