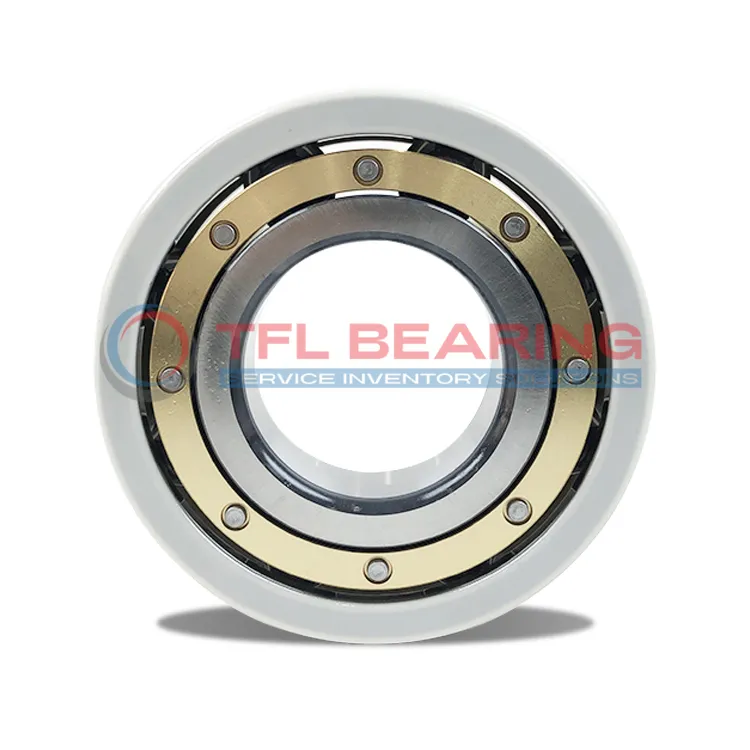

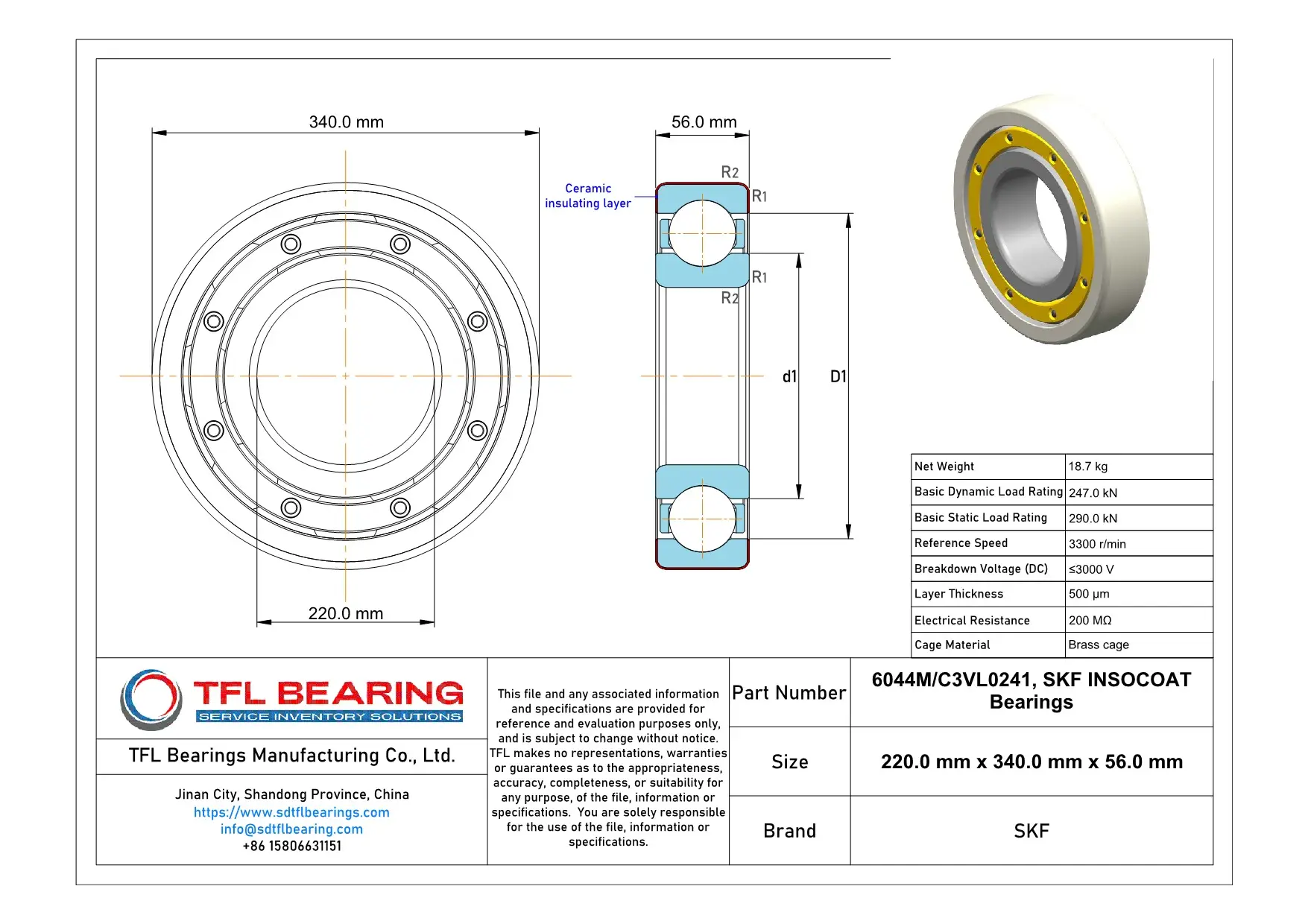

The SKF INSOCOAT 6044M/C3VL0241 is a robust bearing with a 220mm bore and 340mm outer diameter, designed for heavy-duty applications. Its outer ring features a special insulation coating to prevent electrical damage.
This model handles dynamic loads up to 247kN and operates smoothly at speeds up to 3300 RPM. The brass cage ensures durability, while the C3 clearance allows for thermal expansion in demanding conditions.
The insulation coating provides high electrical resistance (200 MΩ) and withstands voltages up to 3000V, protecting against current leakage. Ideal for electric motors or generators where electrical insulation is crucial.
Weighing 18.7kg, it’s built for industrial use while meeting RoHS standards. The 500µm coating thickness offers reliable long-term performance in harsh environments.
"*" indicates required fields
How Is 6044M/C3VL0241 Bearing Engineered for Reliability?
6044M/C3VL0241 Bearing features an insulating coating on the outer ring, providing protection against electrical currents.
This design ensures smooth operation in environments with electrical interference.
The brass cage enhances durability and maintains proper ball alignment under high loads.
With a basic dynamic load rating of 247.0 kN, it handles demanding applications efficiently.
6044M/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion in high-speed operations.
Its reference speed of 3300 r/min ensures reliable performance in various industrial settings.
Industrial Uses of 6044M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends service life. The brass cage ensures smooth operation even at high speeds.
Where Is 6044M/C3VL0241 Bearing Used?
You’ll find it in wind turbines and industrial pumps, handling heavy loads with ease. Its C3 clearance allows for thermal expansion, making it reliable in variable temperatures.
Built for Heavy-Duty Use: 6044M/C3VL0241 Bearing
Perfect for mining equipment and large machinery, this bearing’s dynamic load rating of 247 kN ensures durability. The insulation coating also protects against stray currents in harsh environments.
Automotive vs Aerospace: Applications of 6044M/C3VL0241 Bearing
In automotive applications, it supports large drivetrain components, while in aerospace, its lightweight design and insulation are key. The 340 mm outer diameter fits robust systems seamlessly.
Essential Roles of 6044M/C3VL0241 Bearing
From paper mills to steel plants, this bearing handles demanding conditions. Its breakdown voltage of ≤3000 V makes it safe for high-voltage environments.
