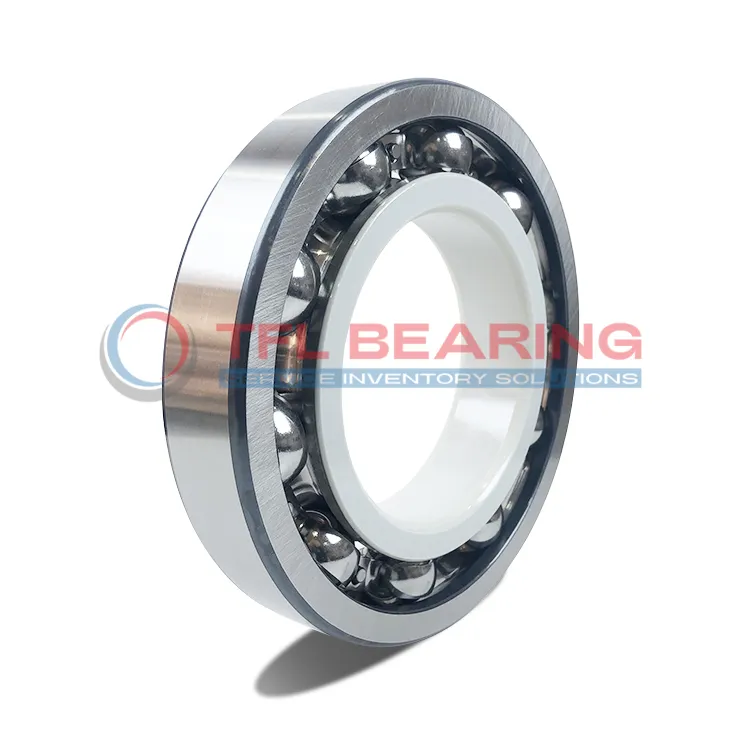

The SKF INSOCOAT bearing 6030/C3VL2071 measures 150mm in bore diameter and 225mm outside, with a width of 35mm. It features an inner ring insulation coating for electrical protection, rated up to 3000V.
With a dynamic load rating of 131kN and a static load rating of 124kN, it handles heavy loads while spinning smoothly at speeds up to 3950 RPM. The C3 radial clearance ensures reliable performance under varying conditions.
The VL2071 coating provides 200 MΩ resistance, preventing electrical damage in motors or generators. Its sheet metal cage adds durability without adding much weight.
Weighing 4.32kg, this RoHS-compliant bearing suits applications like electric motors or industrial equipment where electrical insulation is needed. The 500µm coating thickness offers long-term protection against current leakage.
"*" indicates required fields
How Is 6030/C3VL2071 Bearing Engineered for Reliability?
6030/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
Its breakdown voltage of ≤3000 V ensures safe operation in electrically demanding environments.
The sheet metal cage maintains ball alignment, enhancing durability and performance.
With a basic dynamic load rating of 131.0 kN, it handles heavy loads efficiently.
What Makes 6030/C3VL2071 Bearing Suitable for High-Temperature Applications?
6030/C3VL2071 Bearing’s insulation coating withstands high temperatures, ensuring consistent performance.
The C3 radial internal clearance allows for thermal expansion, reducing stress during operation.
Its reference speed of 3950 r/min makes it suitable for high-speed applications.
The coating’s electrical resistance of 200 MΩ prevents current passage, enhancing safety.
Built for Reliability: 6030/C3VL2071 Bearing
6030/C3VL2071 Bearing is designed with a robust sheet metal cage, ensuring long-term stability.
The insulation coating provides a layer thickness of 500 µm, offering excellent protection.
Its basic static load rating of 124.0 kN ensures reliable performance under heavy loads.
The bearing’s compliance with ROHS standards highlights its environmental safety.
Steel vs Ceramic Bearings: Strengths of 6030/C3VL2071 Bearing
6030/C3VL2071 Bearing uses a chrome steel construction, balancing strength and affordability.
The inner ring insulation coating adds an extra layer of protection compared to standard bearings.
Its dynamic load rating of 131.0 kN ensures it performs well under pressure.
The bearing’s design makes it a practical choice for industrial applications.
Industrial Uses of 6030/C3VL2071 Bearing
The 6030/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating helps prevent electrical damage. Its C3 radial clearance ensures reliable performance under varying thermal conditions.
In wind turbine applications, 6030/C3VL2071 Bearing handles high dynamic loads while maintaining electrical insulation. The sheet metal cage provides durability in these demanding environments.
For industrial pumps, 6030/C3VL2071 Bearing offers excellent resistance to electrical currents, reducing the risk of damage. Its high breakdown voltage makes it suitable for harsh electrical conditions.
Automotive vs Aerospace: Applications of 6030/C3VL2071 Bearing
In automotive alternators, 6030/C3VL2071 Bearing ensures smooth operation with its insulating properties. The C3 clearance accommodates thermal expansion during prolonged use.
Aerospace applications benefit from 6030/C3VL2071 Bearing’s ability to withstand electrical interference. Its lightweight design is ideal for aircraft systems where weight is a critical factor.
What Makes 6030/C3VL2071 Bearing a Preferred Choice?
The 6030/C3VL2071 Bearing is often chosen for railway traction motors due to its electrical insulation and high load capacity. Its robust construction ensures long service life in these heavy-duty applications.
In medical imaging equipment, 6030/C3VL2071 Bearing provides reliable performance with minimal electrical interference. The VL2071 coating ensures consistent operation in sensitive environments.
