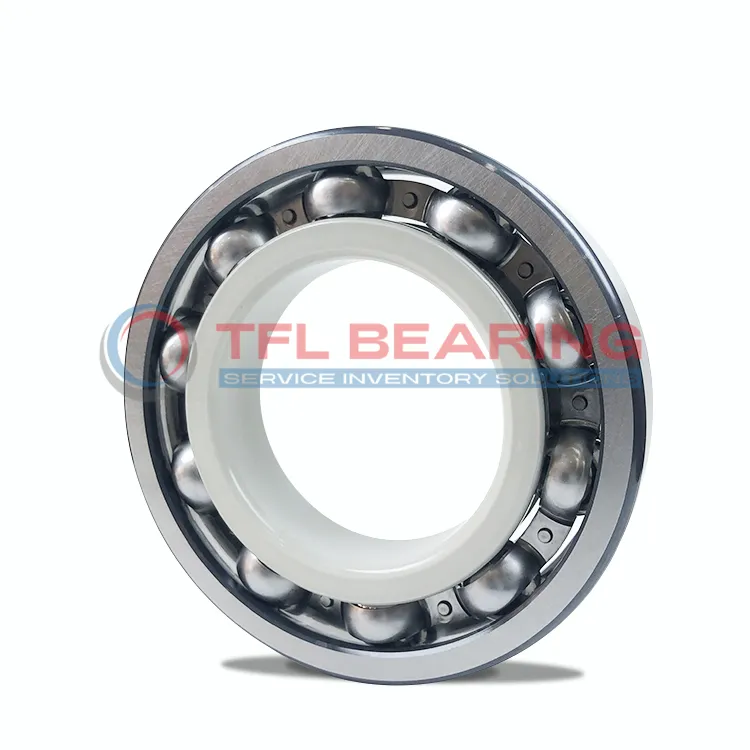

The SKF INSOCOAT bearing 6020/C3VL2071 is a robust unit with a 100mm bore and 150mm outer diameter, featuring an inner ring insulation coating. It handles dynamic loads up to 64 kN and spins smoothly at speeds up to 6100 RPM.
Its VL2071 coating provides electrical resistance of 200 MΩ, protecting against current damage, while the C3 clearance ensures reliable performance under varying temperatures. The sheet metal cage adds durability without adding weight.
This bearing is ideal for electric motors or generators where electrical insulation is crucial. With a breakdown voltage of up to 3000V, it prevents current leakage effectively.
Weighing 1.32kg, it’s a practical choice for industrial applications. Compliant with ROHS standards, it’s both safe and environmentally friendly.
"*" indicates required fields
How Is 6020/C3VL2071 Bearing Engineered for Reliability?
6020/C3VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
The VL2071 coating ensures a breakdown voltage of up to 3000 V, making it suitable for electric motor applications.
With a basic dynamic load rating of 64.0 kN, it handles heavy loads while maintaining smooth operation.
The sheet metal cage enhances durability, ensuring long-term performance in demanding conditions.
What Makes 6020/C3VL2071 Bearing Suitable for High-Temperature Applications?
6020/C3VL2071 Bearing is designed with a robust insulation coating that withstands high temperatures.
Its electrical resistance of 200 MΩ prevents current passage, reducing the risk of damage.
The C3 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.
With a reference speed of 6100 r/min, it delivers reliable operation in high-speed environments.
Built for Reliability: 6020/C3VL2071 Bearing
6020/C3VL2071 Bearing combines a durable sheet metal cage with a high-performance insulation coating.
The 500 µm layer thickness ensures long-lasting protection against electrical currents.
Its basic static load rating of 54.0 kN provides stability under heavy loads.
The bearing’s design ensures compliance with ROHS standards, making it environmentally friendly.
Steel vs Ceramic Bearings: Strengths of 6020/C3VL2071 Bearing
6020/C3VL2071 Bearing uses a steel construction with an insulating coating for enhanced durability.
The coating provides electrical insulation, unlike ceramic bearings, while maintaining high load capacity.
With a width of 24.0 mm, it fits compact spaces without compromising performance.
Its net weight of 1.32 kg makes it easy to handle during installation and maintenance.
Industrial Uses of 6020/C3VL2071 Bearing
The 6020/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical damage from stray currents. Its C3 clearance allows for thermal expansion in high-speed applications.
In automation systems, 6020/C3VL2071 Bearing ensures reliable performance in servo drives and robotics, thanks to its stable electrical resistance. The sheet metal cage provides durability in continuous operation.
For wind turbine applications, 6020/C3VL2071 Bearing handles high dynamic loads while maintaining insulation properties. Its 500 µm coating thickness offers long-term protection against electrical erosion.
What Makes 6020/C3VL2071 Bearing a Preferred Choice?
The 6020/C3VL2071 Bearing works well in CNC machinery, where precision and electrical insulation are key. Its 64 kN dynamic load rating supports heavy cutting operations.
In railway traction systems, 6020/C3VL2071 Bearing reduces downtime by preventing electrical arcing. The 150 mm outer diameter fits standard housings for easy replacement.
Built for Heavy-Duty Use: 6020/C3VL2071 Bearing
The 6020/C3VL2071 Bearing excels in industrial pumps, handling both radial and axial loads with ease. Its 6100 r/min speed rating suits high-RPM applications.
For food processing equipment, 6020/C3VL2071 Bearing’s ROHS compliance ensures safety in hygienic environments. The 24 mm width provides a compact solution for tight spaces.
