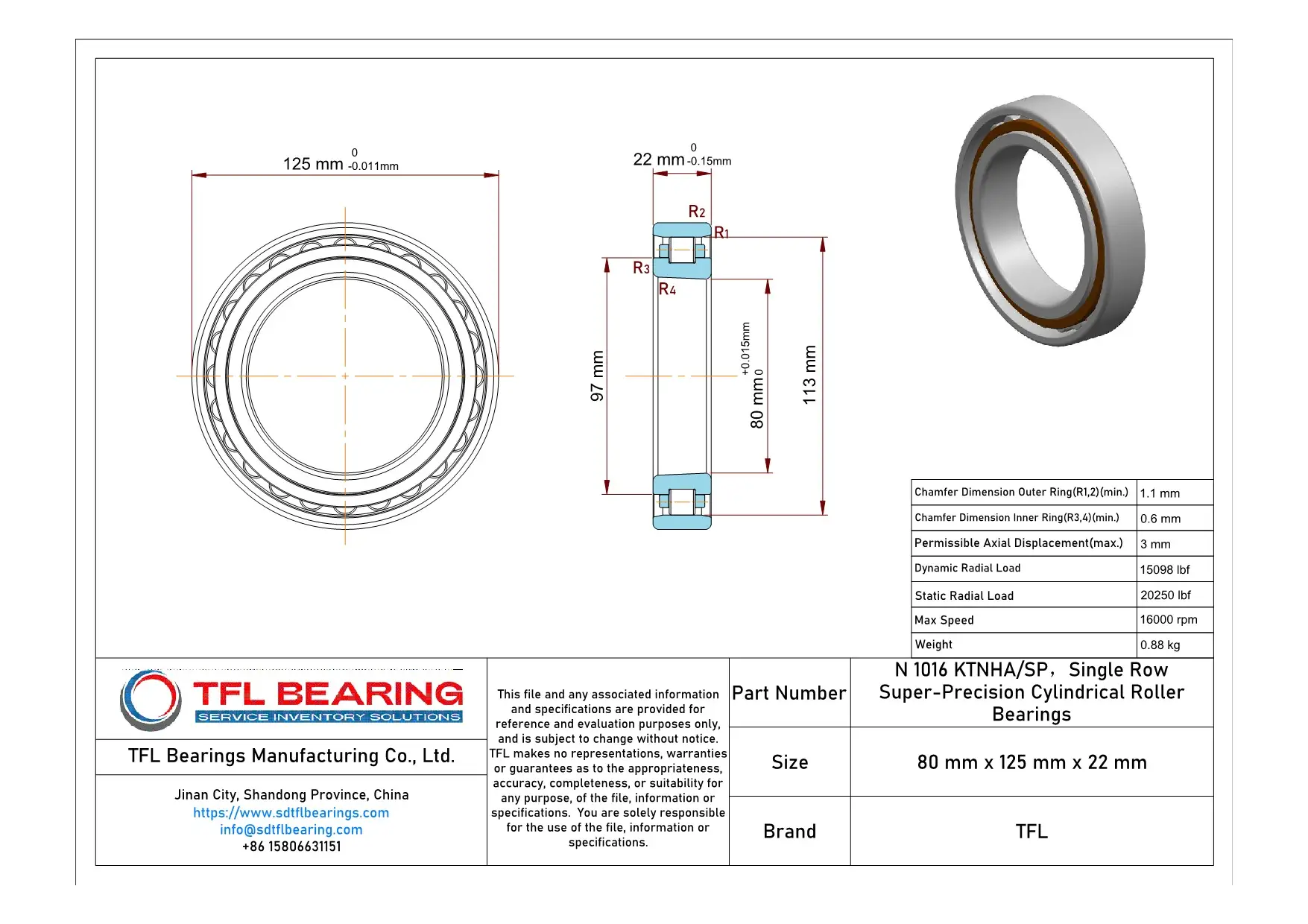

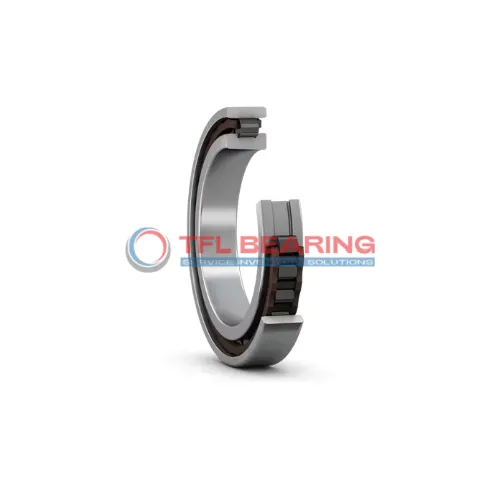

The N 1016 KTNHA/SP is a single-row cylindrical roller bearing with an 80mm tapered bore and 125mm outer diameter, crafted from high-grade chrome steel. It handles combined loads up to 15098 lbf and reaches speeds of 16000 RPM, making it suitable for demanding applications.
Its PEEK cage, centred on the outer ring, ensures smooth operation and durability, while the open design allows for easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.
With a 3mm permissible axial displacement, it offers flexibility in mounting and alignment. This model is interchangeable with SKF bearings, ideal for precision machinery like spindles or high-speed gearboxes.
Weighing 0.88kg, it balances strength and precision, complying with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
Performance Features of N 1016 KTNHA/SP Bearing
N 1016 KTNHA/SP Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 15098 lbf, ensuring reliable operation in precision applications.
The PEEK cage, centred on the outer ring, enhances stability and reduces friction during high-speed rotation.
With a maximum speed of 16,000 rpm, it delivers consistent performance under demanding conditions.
N 1016 KTNHA/SP Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, extending maintenance intervals.
Industrial Uses of N 1016 KTNHA/SP Bearing
N 1016 KTNHA/SP Bearing is commonly used in machine tools, where its high-speed capability and precision handling of combined loads are essential. The PEEK cage design ensures smooth operation even under demanding conditions.
In automotive applications, N 1016 KTNHA/SP Bearing fits well in gearboxes and drivetrains, offering reliable performance under radial and axial loads. Its tapered bore design simplifies installation in tight spaces.
For automation systems, N 1016 KTNHA/SP Bearing supports robotic arms and CNC machinery, where its low friction and high-speed tolerance are key. The chrome steel construction adds durability for long-term use.
Medical imaging devices benefit from N 1016 KTNHA/SP Bearing’s precision and stability, ensuring accurate results in scanners and diagnostic equipment. The open seal design allows for easy lubrication maintenance.
In consumer electronics, N 1016 KTNHA/SP Bearing can be found in high-performance printers and industrial fans, where its quiet operation and reliability are valued. The metric sizing ensures compatibility with various European and Asian models.
