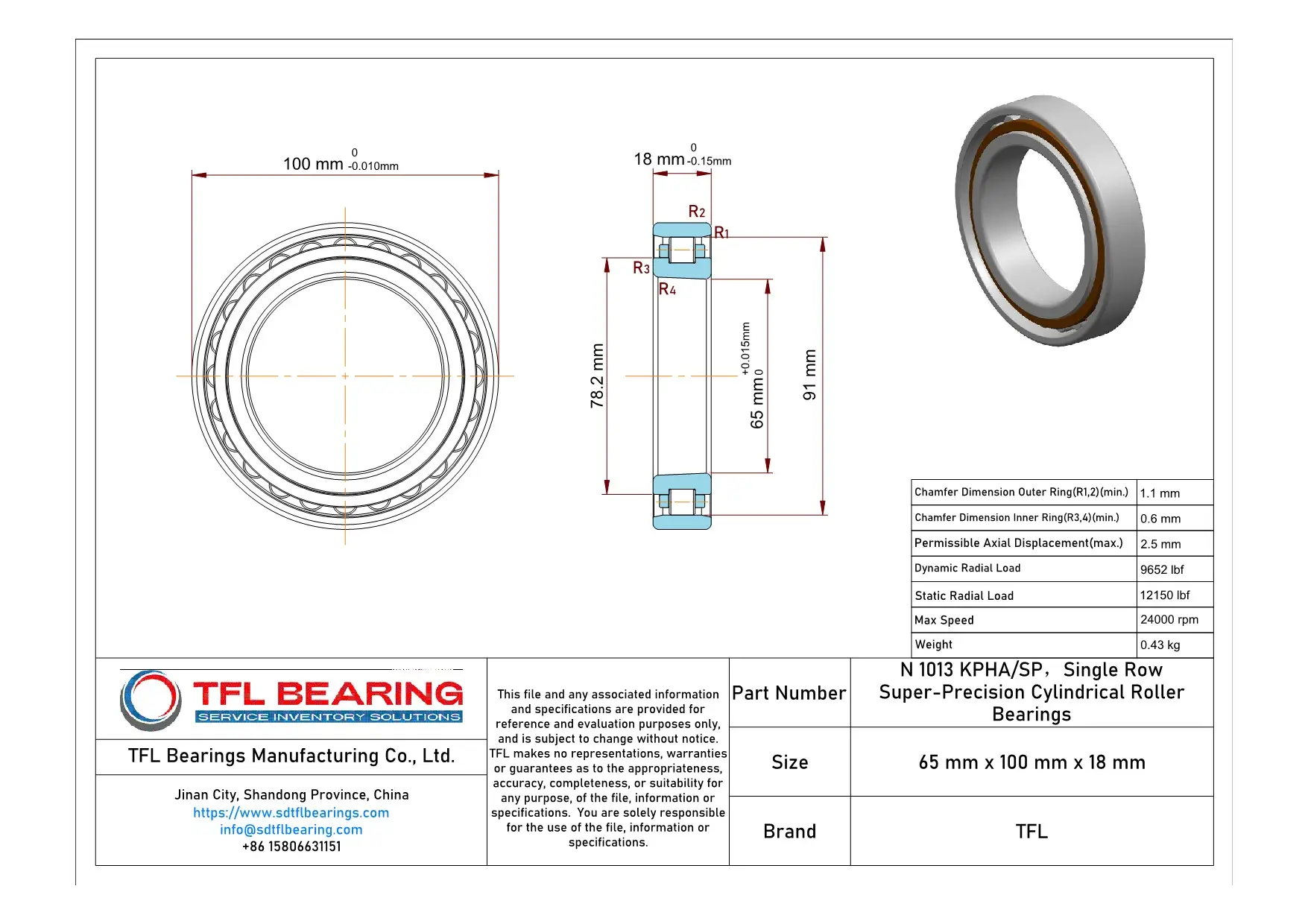

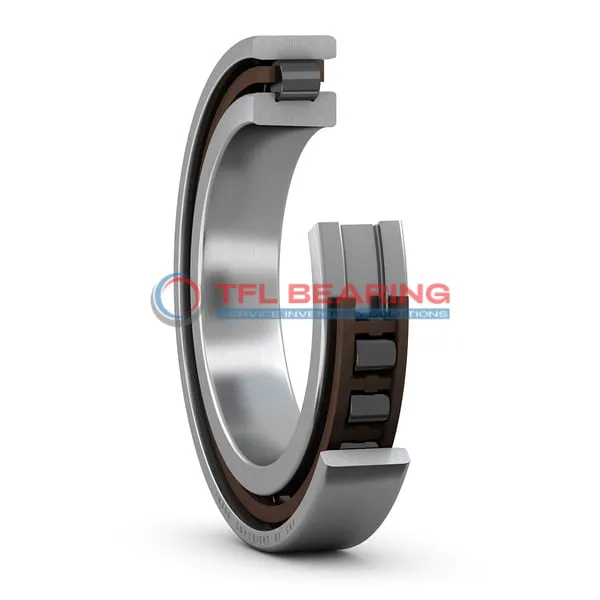

The N 1013 KPHA/SP is a single-row cylindrical roller bearing with a 65mm tapered bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 9652 lbf and reaches speeds of 24,000 RPM, making it suitable for demanding applications.
Its PEEK cage, centred on the outer ring, ensures smooth operation and durability, while the open design allows for easy lubrication with grease or oil. The bearing works reliably in temperatures from -30°C to 110°C.
With a permissible axial displacement of 2.5mm, it offers flexibility in installation. This model is interchangeable with SKF bearings, providing a dependable option for replacements. Ideal for precision machinery like spindles or high-speed tools.
Weighing 0.43kg, it balances lightweight design with robust performance. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.
"*" indicates required fields
Performance Features of N 1013 KPHA/SP Bearing
N 1013 KPHA/SP Bearing is crafted with chrome steel rings and rollers, ensuring high resistance to combined loads.
Its dynamic radial load capacity reaches 9652 lbf, making it suitable for demanding applications.
The PEEK cage design keeps the rollers aligned, reducing friction and enhancing durability.
With a maximum speed of 24,000 rpm, it delivers both precision and efficiency.
N 1013 KPHA/SP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring long service life.
The tapered bore design simplifies installation, saving time and effort.
This bearing is ideal for high-speed applications requiring reliable performance.
Key Fields for N 1013 KPHA/SP Bearing
N 1013 KPHA/SP Bearing is commonly used in high-speed machine tools, where its cylindrical roller design ensures precise radial and axial load handling. The PEEK cage and chrome steel construction make it suitable for demanding industrial environments.
In automotive applications, N 1013 KPHA/SP Bearing supports gearbox and transmission systems, offering reliable performance under combined loads. Its metric sizing and taper bore design ensure compatibility with various vehicle models.
For automation systems, N 1013 KPHA/SP Bearing is ideal for robotic arms and precision machinery, thanks to its high-speed capability and low friction. The open seal type allows for easy lubrication, extending its service life.
In medical equipment, N 1013 KPHA/SP Bearing provides smooth operation in devices like CT scanners, where accuracy and durability are essential. The grease or oil lubrication options adapt to different operational needs.
Consumer electronics like high-performance printers benefit from N 1013 KPHA/SP Bearing’s quiet and efficient operation. Its compact design fits well in space-constrained applications.
