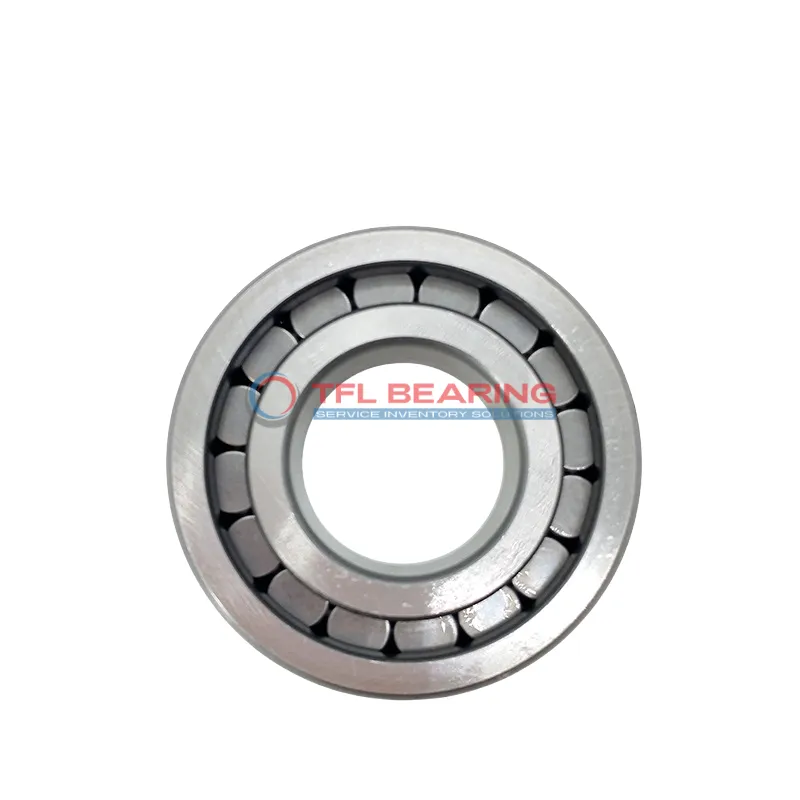

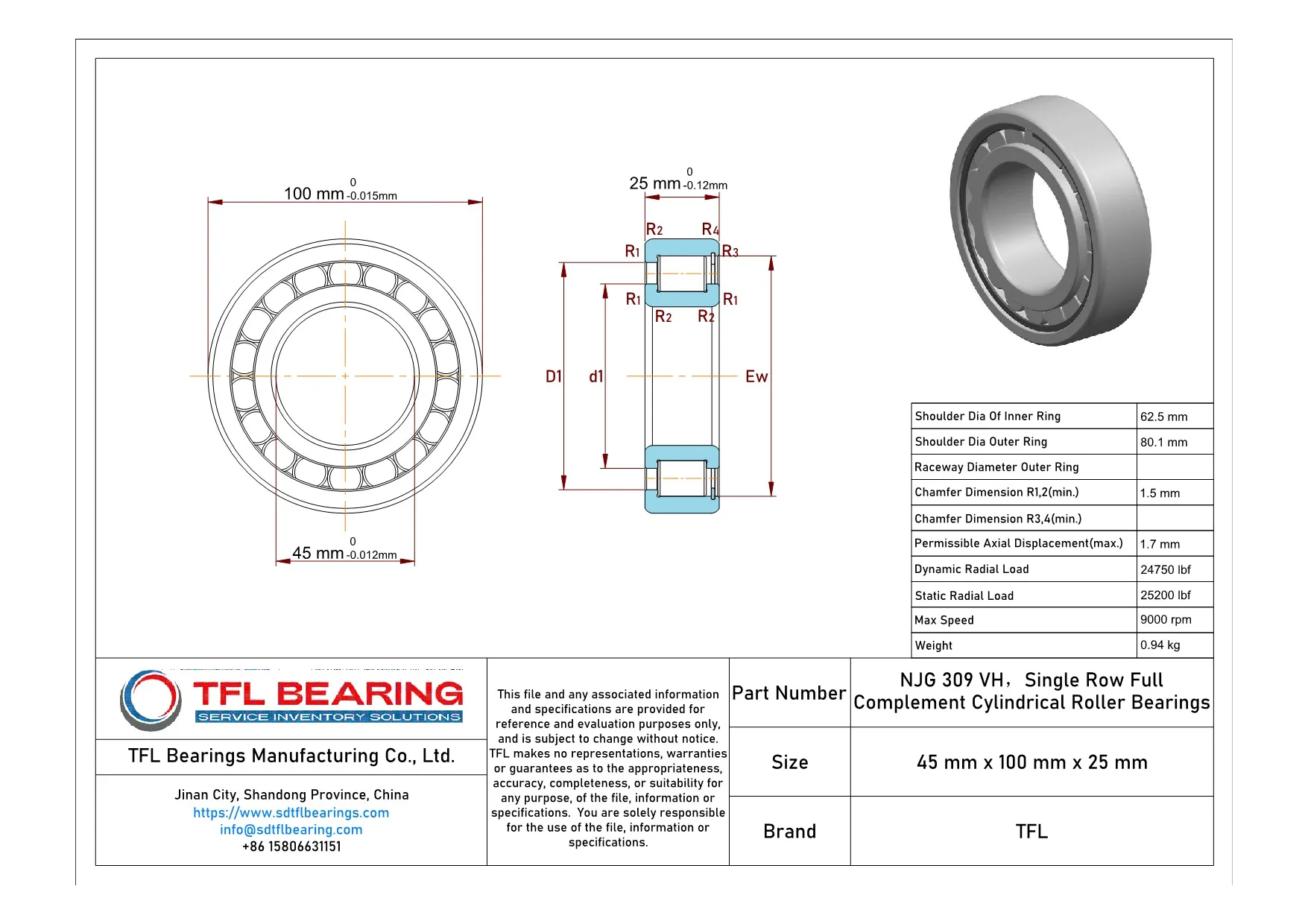

The NJG 309 VH is a single row cylindrical roller bearing with a 45mm bore and 100mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 24750 lbf and can spin at speeds up to 9000 RPM.
Its full complement design, without a cage, allows for higher load capacity and smooth operation. The open seal type makes lubrication with grease or oil straightforward.
This bearing suits applications with heavy radial loads and moderate axial displacement, like industrial gearboxes or pumps. It’s interchangeable with SKF models for easy replacement.
Weighing 0.94kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 110°C.
"*" indicates required fields
Engineered for Precision: NJG 309 VH Bearing
NJG 309 VH Bearing features a full complement of chrome steel rollers, enhancing its load-carrying capacity without a cage.
This design allows for higher radial load handling, with a dynamic radial load capacity of 24,750 lbf.
The chrome steel construction ensures durability and resistance to wear, even in demanding conditions.
With a maximum speed of 9,000 rpm, it delivers reliable performance for high-speed applications.
NJG 309 VH Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, whether using grease or oil, reducing maintenance needs.
Industrial Uses of NJG 309 VH Bearing
NJG 309 VH Bearing is commonly used in heavy machinery like gearboxes and industrial pumps, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
Where Is NJG 309 VH Bearing Used?
In automotive applications, NJG 309 VH Bearing supports components such as transmissions and differentials, providing reliable performance under combined loads. Its chrome steel construction ensures durability even in high-speed scenarios.
Built for Heavy-Duty Use: NJG 309 VH Bearing
For automation systems, NJG 309 VH Bearing is ideal for robotic arms and conveyor belts, where precision and load capacity are key. The absence of a cage allows for higher roller counts, enhancing its load-bearing capabilities.
Automotive vs Aerospace: Applications of NJG 309 VH Bearing
In automotive settings, NJG 309 VH Bearing excels in drivetrain components, while its aerospace applications include auxiliary systems requiring robust performance. The metric sizing ensures compatibility across various industries.
Key Fields for NJG 309 VH Bearing
NJG 309 VH Bearing is a go-to choice for construction equipment like cranes and excavators, where its static radial load capacity shines. The grease or oil lubrication options make it adaptable to different environmental conditions.
