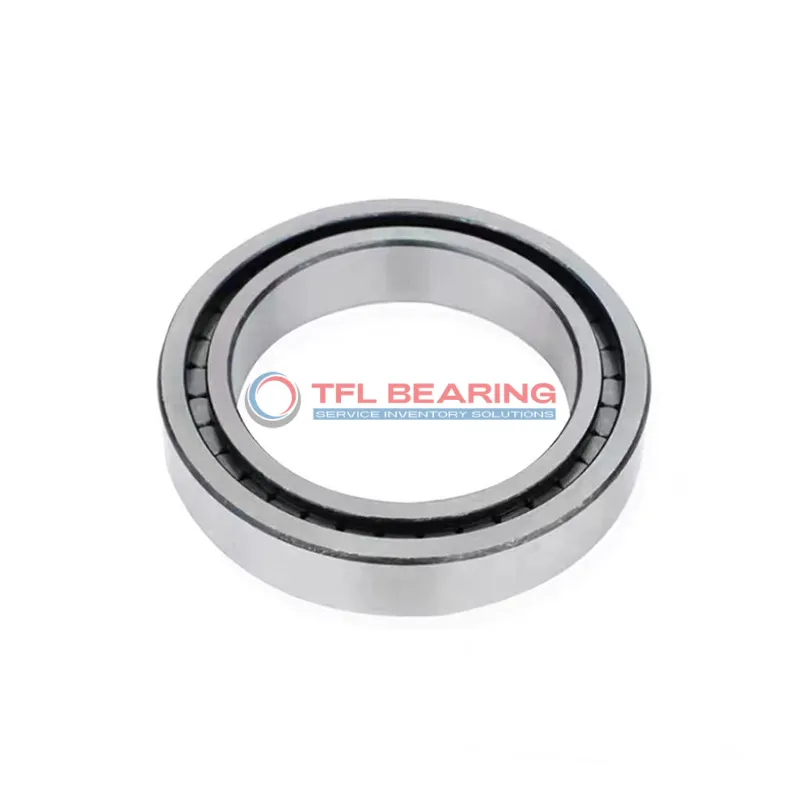

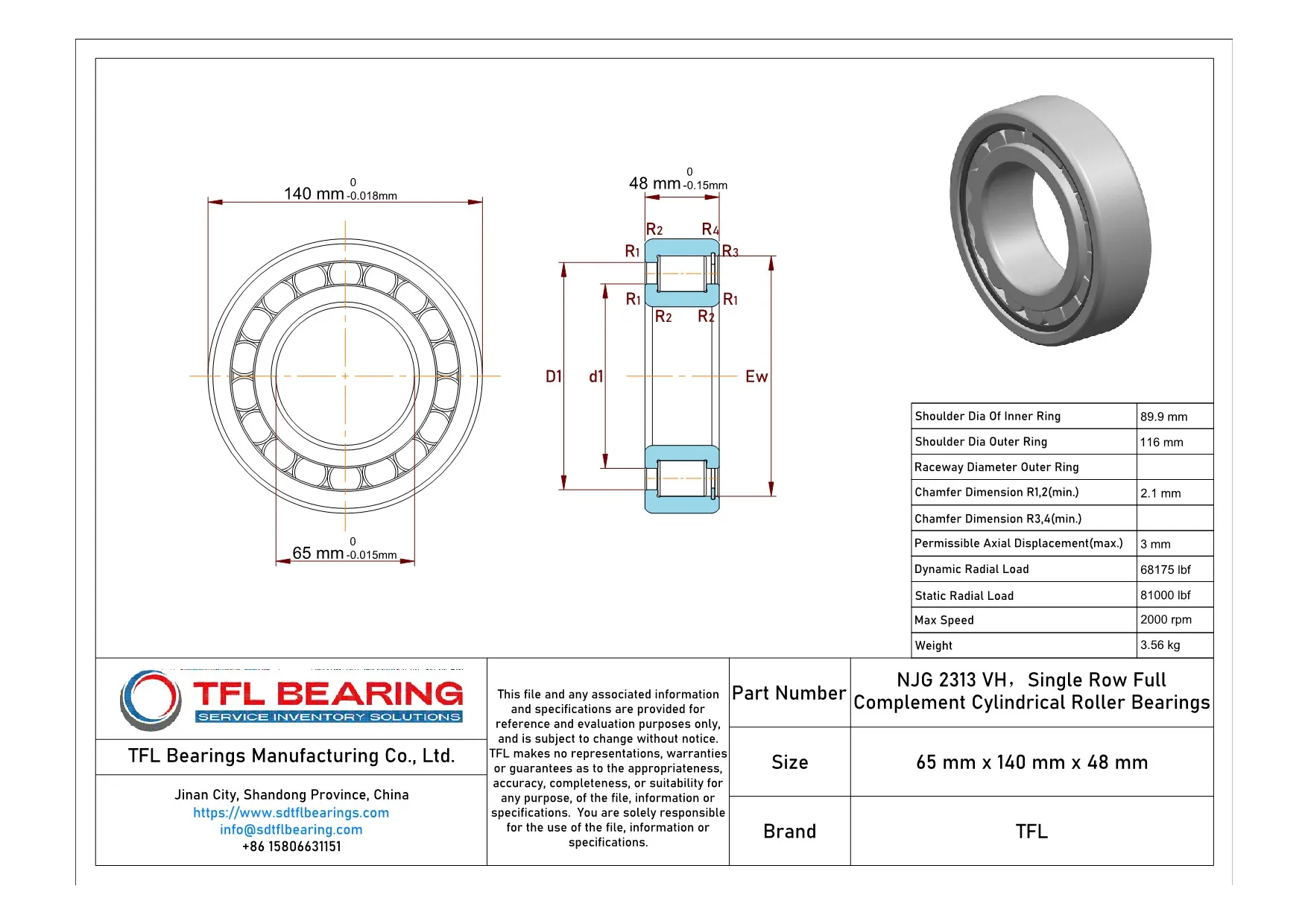

The NJG 2313 VH is a single row full complement cylindrical roller bearing, measuring 65mm by 140mm by 48mm. Made from chrome steel, it’s built to handle both radial and axial loads with ease.
With a dynamic radial load capacity of 68175 lbf and a max speed of 2000 RPM, it’s suitable for heavy-duty applications. The full complement of rollers (no cage) ensures smooth operation under high loads.
Its open design allows for easy lubrication with grease or oil, and it operates well in temperatures from -30°C to 110°C. The bearing is interchangeable with SKF models, making replacements straightforward.
Ideal for industrial machinery or gearboxes where high radial loads are common, this robust bearing weighs 3.56kg. It complies with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NJG 2313 VH Bearing
NJG 2313 VH Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity.
This design allows it to handle dynamic radial loads up to 68,175 lbf, making it suitable for heavy-duty applications.
The open seal type and chrome steel construction ensure durability in various operating conditions.
With a maximum speed of 2,000 rpm, it balances performance and reliability.
NJG 2313 VH Bearing operates efficiently within a temperature range of -30° to 110°C.
Its single-row cylindrical design provides stability under combined loads.
The absence of a cage reduces friction, improving overall efficiency.
This makes NJG 2313 VH Bearing a practical choice for industrial machinery.
Industrial Uses of NJG 2313 VH Bearing
NJG 2313 VH Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for demanding environments.
Where Is NJG 2313 VH Bearing Used?
In automotive applications, NJG 2313 VH Bearing supports components such as drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.
Built for Heavy-Duty Use: NJG 2313 VH Bearing
For automation equipment, NJG 2313 VH Bearing provides reliable performance in robotic arms and assembly lines, where precision and durability are key. The absence of a cage allows for higher load capacity in compact spaces.
Light-Duty vs Heavy-Duty: Best Uses for NJG 2313 VH Bearing
In consumer electronics, NJG 2313 VH Bearing can be found in high-performance printers and industrial fans, where its temperature range ensures consistent operation. The grease or oil lubrication options add versatility for different maintenance needs.
