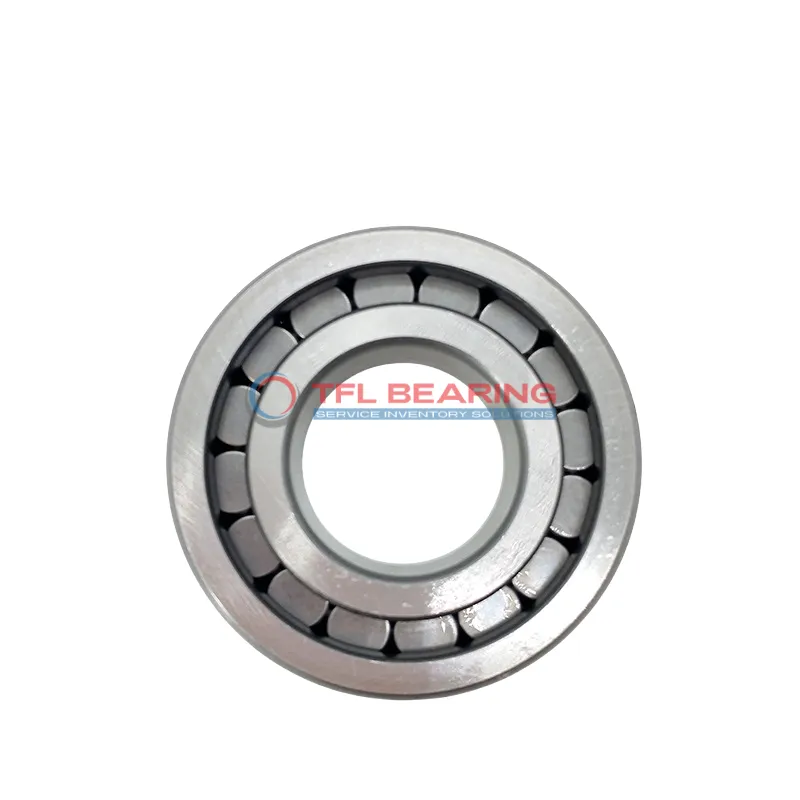

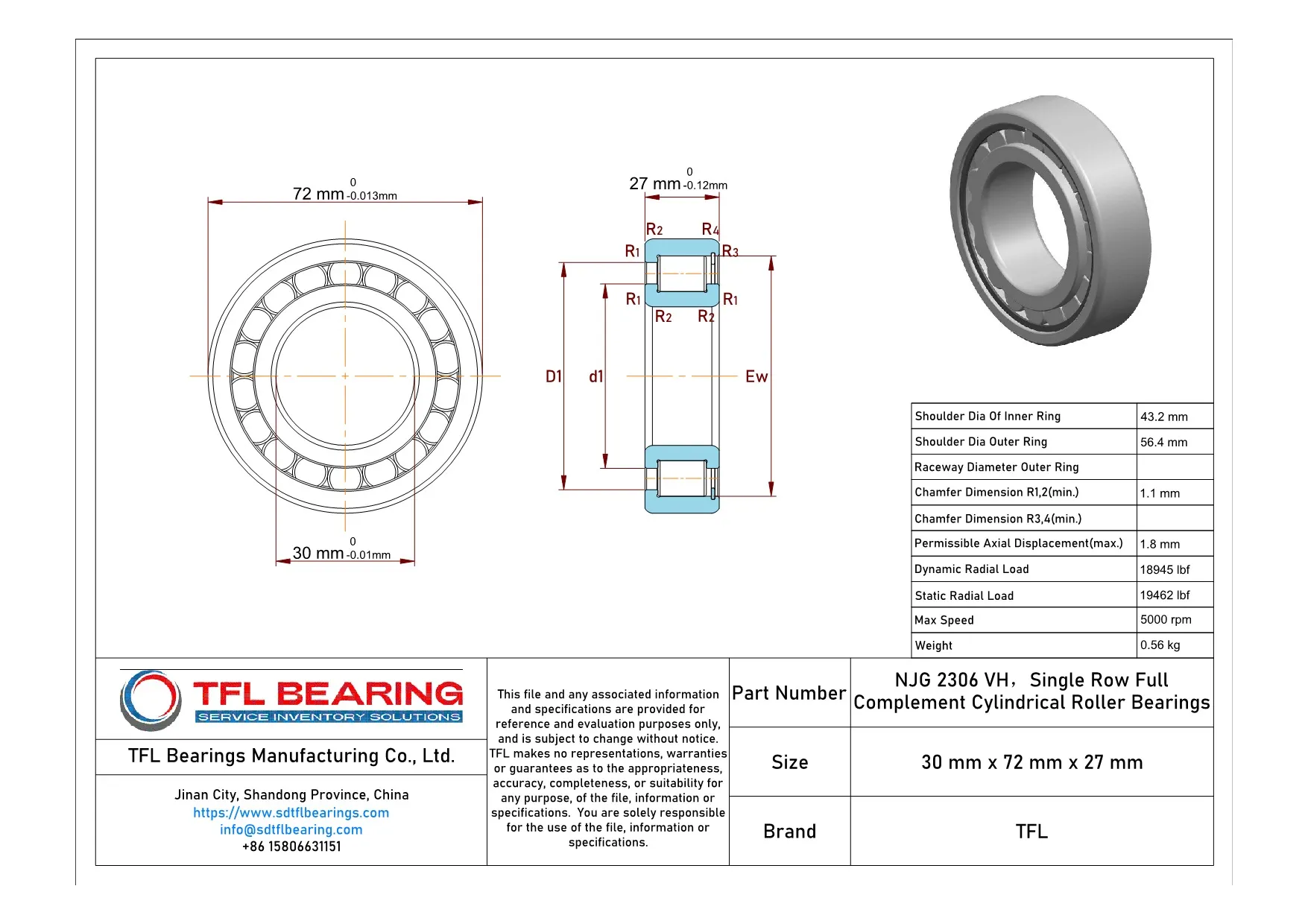

The NJG 2306 VH is a single row cylindrical roller bearing with a 30mm bore and 72mm outer diameter, built from tough chrome steel. It handles combined loads up to 18945 lbf and runs smoothly at speeds up to 5000 RPM.
Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where high radial loads are common.
Weighing 0.56kg, it offers a robust solution for demanding environments. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NJG 2306 VH Bearing
NJG 2306 VH Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity.
This design eliminates the need for a cage, allowing more rollers to fit and increasing radial load capacity.
The dynamic radial load rating of 18,945 lbf ensures reliable performance in heavy-duty applications.
Its chrome steel construction provides durability and resistance to wear, even under demanding conditions.
NJG 2306 VH Bearing operates smoothly within a temperature range of -30° to 110°C.
It is suitable for various lubrication methods, including grease and oil, ensuring flexibility in different environments.
With a maximum speed of 5,000 rpm, it balances high performance and longevity.
The precise tolerances and robust design make it a dependable choice for industrial applications.
Industrial Uses of NJG 2306 VH Bearing
NJG 2306 VH Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its full complement design handles high radial loads efficiently. The open seal type simplifies lubrication, making it suitable for demanding environments.
In automotive applications, NJG 2306 VH Bearing supports components such as transmissions and differentials, ensuring smooth performance under combined loads. Its metric sizing ensures compatibility with a variety of vehicle designs.
For automation equipment, NJG 2306 VH Bearing’s chrome steel construction provides durability in robotic arms and assembly lines. The absence of a cage allows for higher load capacity, ideal for repetitive motion tasks.
Where Is NJG 2306 VH Bearing Used?
NJG 2306 VH Bearing finds its place in wind turbines, where its ability to handle high radial loads and moderate axial shifts is crucial. The grease or oil lubrication options adapt to different operational conditions.
In printing machinery, NJG 2306 VH Bearing ensures precise roller alignment, thanks to its cylindrical roller design. The chrome steel material offers long-lasting performance even in high-speed scenarios.
Built for Heavy-Duty Use: NJG 2306 VH Bearing
NJG 2306 VH Bearing excels in construction equipment like excavators, where its robust design withstands intense vibrations and shocks. The full complement rollers distribute loads evenly, reducing wear.
In agricultural machinery, NJG 2306 VH Bearing supports components like harvesters and tractors, providing reliable performance in dusty conditions. Its temperature range ensures functionality in varying climates.
Automotive vs Aerospace: Applications of NJG 2306 VH Bearing
In automotive systems, NJG 2306 VH Bearing is favoured for transmissions due to its high radial load capacity. The aerospace industry values it for auxiliary equipment where precision and reliability are key.
For industrial pumps, NJG 2306 VH Bearing’s ability to handle combined loads makes it a dependable choice. The open design allows for easy inspection and maintenance, extending service life.
