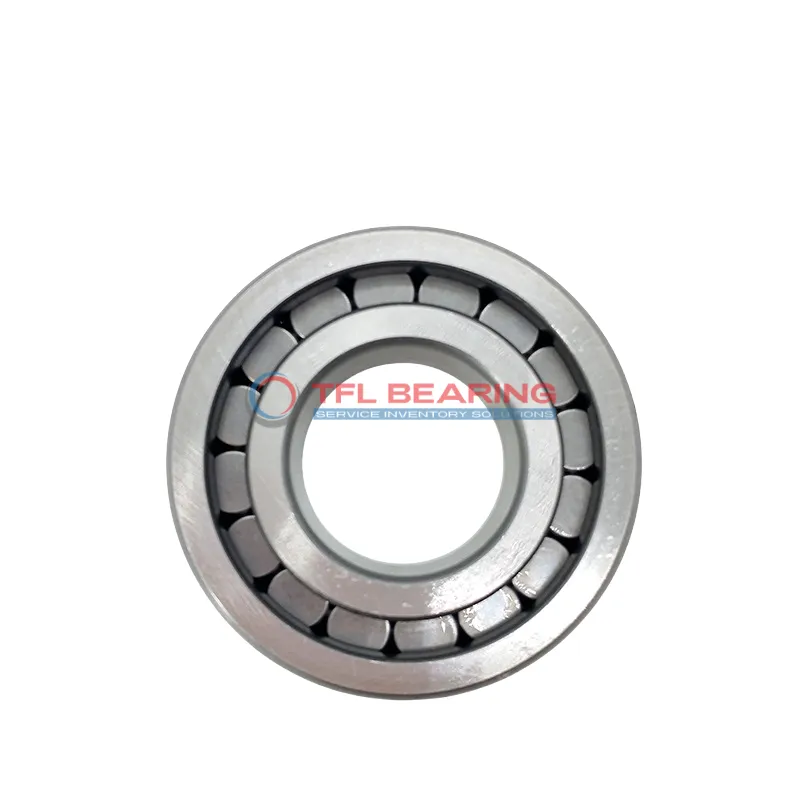

The NCF 3011 CV is a single row full complement cylindrical roller bearing with a 55mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports combined loads up to 23625 lbf and reaches speeds of 4000 RPM.
Its full complement design means no cage, allowing more rollers for higher load capacity. The open seal type simplifies lubrication with grease or oil.
This bearing can handle temperatures from -30°C to 110°C, making it versatile for various conditions. It’s interchangeable with SKF bearings for easy replacements.
Ideal for heavy-duty applications like industrial gearboxes or machinery where high radial loads are common. Weighing 0.64kg, it balances strength and manageability. Compliant with RoHS and REACH standards.
"*" indicates required fields
Performance Features of NCF 3011 CV Bearing
NCF 3011 CV Bearing is built with a full complement of chrome steel rollers, enhancing its load-carrying capacity.
This design allows it to handle combined loads efficiently, with a dynamic radial load capacity of 23,625 lbf.
The absence of a cage in NCF 3011 CV Bearing maximises roller count, improving load distribution and durability.
It operates smoothly at speeds up to 4,000 rpm, making it suitable for high-performance applications.
NCF 3011 CV Bearing works well in temperatures ranging from -30° to 110°C, ensuring reliability in various conditions.
Its chrome steel construction resists wear, extending the bearing’s service life.
With a simple open design, NCF 3011 CV Bearing is easy to install and maintain.
The grease or oil lubrication options provide flexibility for different operational needs.
Industrial Uses of NCF 3011 CV Bearing
NCF 3011 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.
In automotive applications, NCF 3011 CV Bearing fits well in drivetrain components such as differentials and wheel hubs, providing reliable performance under combined loads. Its metric dimensions make it a versatile choice for various vehicle designs.
For automation equipment, NCF 3011 CV Bearing supports robotic arms and precision assembly lines, where its chrome steel construction ensures durability. The absence of a cage allows for higher load capacity, making it suitable for high-speed operations.
Where Is NCF 3011 CV Bearing Used?
NCF 3011 CV Bearing finds its place in wind turbine systems, where its ability to handle heavy radial loads is crucial. The grease or oil lubrication options make it adaptable to different environmental conditions.
In construction machinery, NCF 3011 CV Bearing is often seen in crane slewing rings, offering stability and strength. Its wide temperature range ensures performance even in extreme weather conditions.
