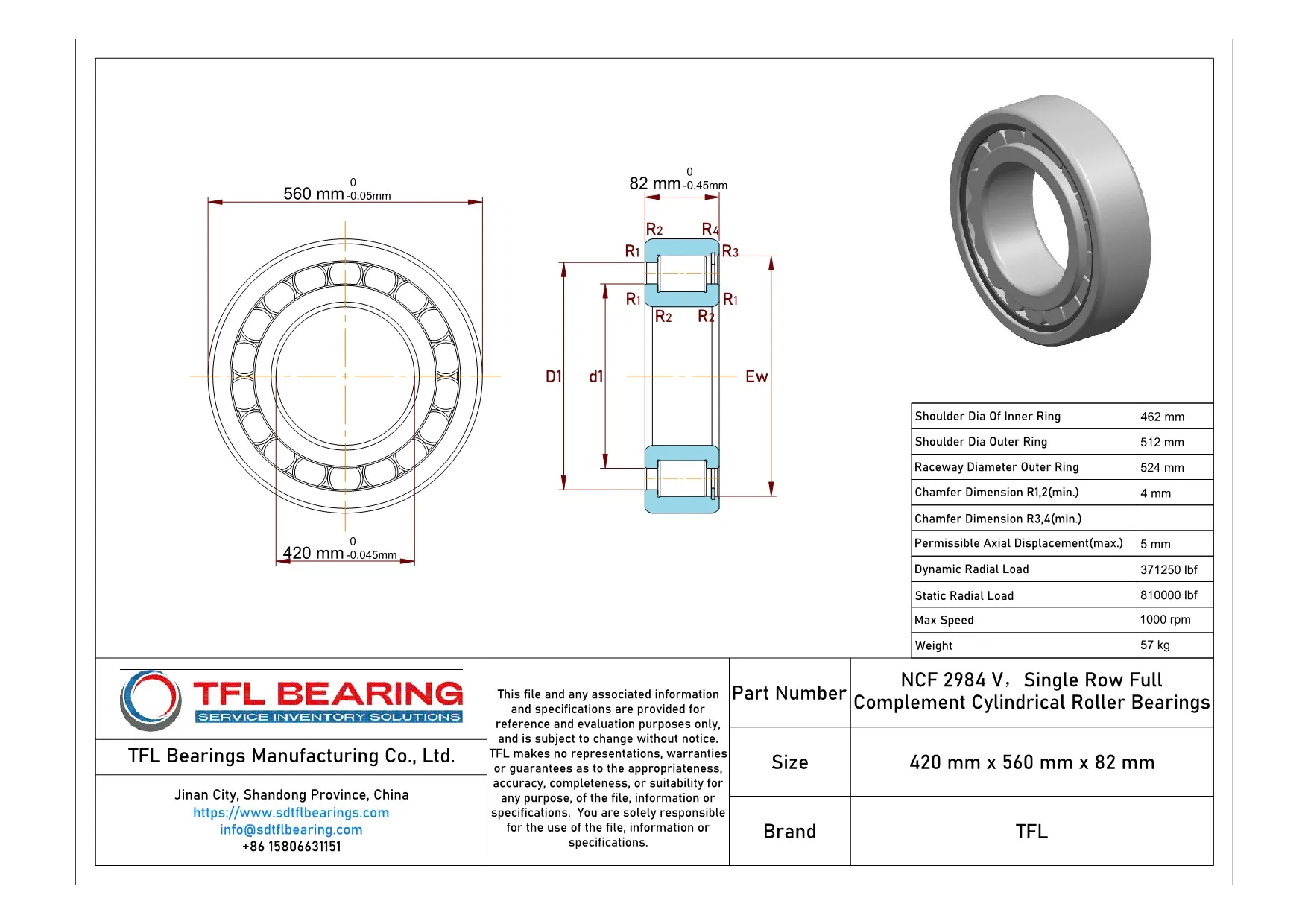

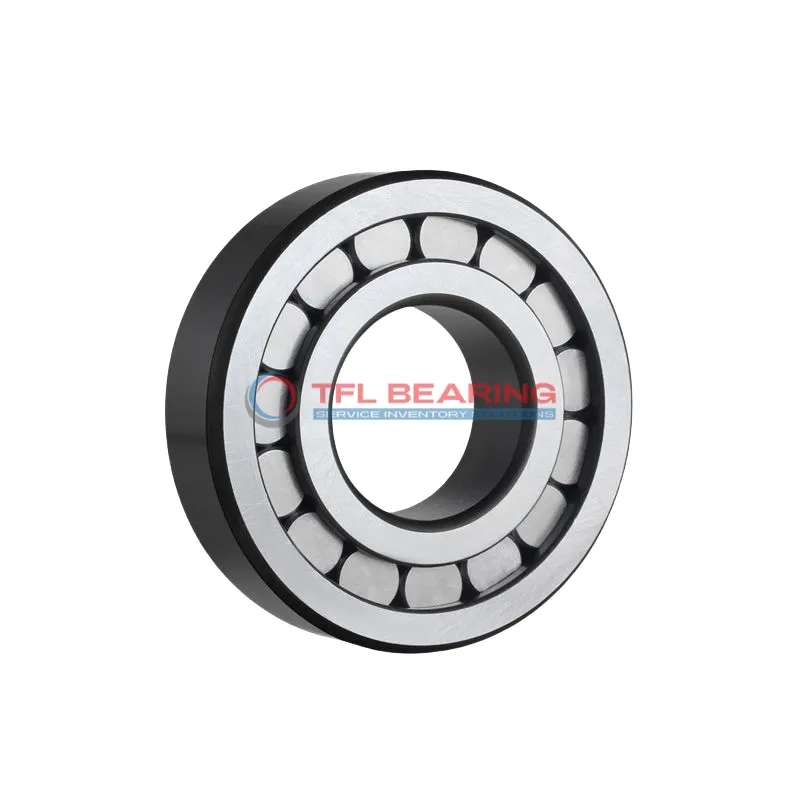

The NCF 2984 V is a single row full complement cylindrical roller bearing with a 420mm bore and 560mm outer diameter, built from tough chrome steel. It handles combined loads up to 371250 lbf and runs smoothly at speeds up to 1000 RPM.
Its full complement design means it has no cage, offering higher load capacity and durability. The open seal allows for easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial loads are common.
Weighing 57kg, it’s a robust option for demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of NCF 2984 V Bearing
NCF 2984 V Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load rating of 371,250 lbf ensures reliable performance under heavy loads.
The open design allows for easy lubrication with grease or oil, enhancing operational efficiency.
With a maximum speed of 1,000 rpm, it balances performance and longevity in demanding applications.
NCF 2984 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its robust construction makes it suitable for combined load directions, providing versatility in various industrial settings.
Industrial Uses of NCF 2984 V Bearing
NCF 2984 V Bearing is commonly used in heavy machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.
Where Is NCF 2984 V Bearing Used?
You’ll find NCF 2984 V Bearing in industrial applications like paper mills and mining equipment, where its chrome steel construction withstands harsh environments. Its large bore size makes it ideal for heavy-duty shafts requiring robust support.
Built for Heavy-Duty Use: NCF 2984 V Bearing
NCF 2984 V Bearing excels in applications like wind turbines and construction machinery, thanks to its high static and dynamic load ratings. The absence of a cage allows for maximum roller count, enhancing load capacity.
Automotive vs Aerospace: Applications of NCF 2984 V Bearing
In automotive settings, NCF 2984 V Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment. Its combined load capability makes it versatile for both industries.
Practical Applications of NCF 2984 V Bearing
NCF 2984 V Bearing is a go-to choice for steel plants and marine propulsion systems, where its durability and high-speed performance are crucial. The grease or oil lubrication options adapt to various operational needs.
