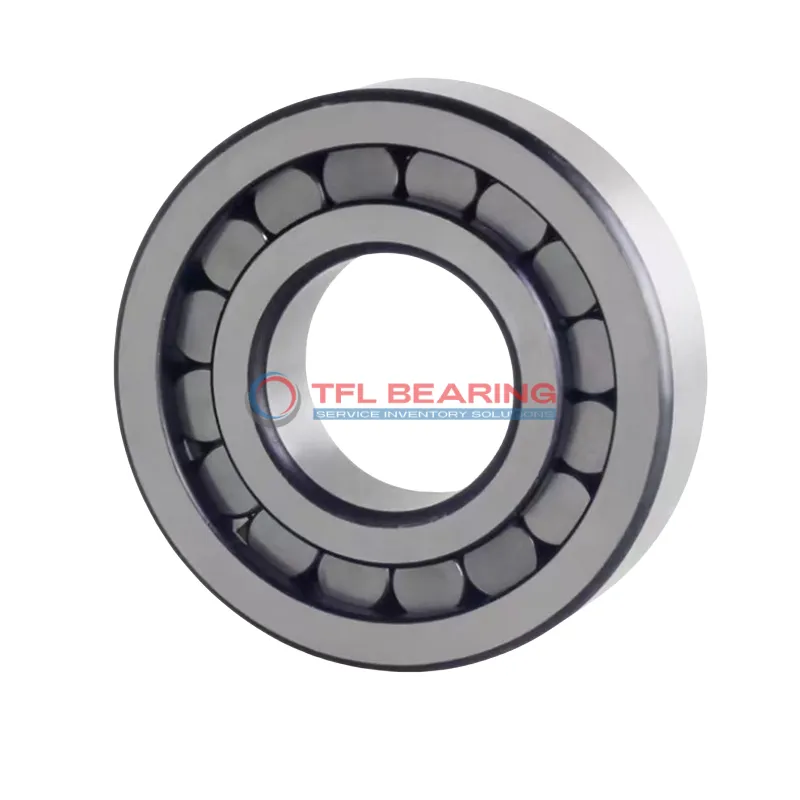

The NCF 2968 V is a single row full complement cylindrical roller bearing with a 340mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 267750 lbf and runs smoothly at speeds up to 1000 RPM.
Its full complement design means it has no cage, offering higher load capacity and durability. The open seal type allows for easy lubrication with grease or oil.
This bearing suits heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common. It works well in temperatures from -30°C to 110°C.
Weighing 35kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Performance Features of NCF 2968 V Bearing
NCF 2968 V Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load rating of 267,750 lbf ensures reliable performance under heavy loads.
The open design allows for easy lubrication with grease or oil, enhancing operational efficiency.
With a maximum speed of 1,000 rpm, it balances power and precision in demanding applications.
NCF 2968 V Bearing operates in temperatures from -30° to 110°C, making it suitable for varied environments.
The chrome steel construction resists wear, extending the bearing’s service life.
Its single-row full complement design provides stability and reduces maintenance needs.
The precise tolerances ensure smooth operation, even under combined load conditions.
Industrial Uses of NCF 2968 V Bearing
NCF 2968 V Bearing is commonly used in heavy machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type simplifies lubrication, making it suitable for demanding industrial environments.
Where Is NCF 2968 V Bearing Used?
In wind turbines, NCF 2968 V Bearing supports the main shaft, ensuring smooth rotation under varying wind conditions. Its chrome steel construction provides durability in outdoor settings, while the metric sizing fits standard turbine designs.
Built for Heavy-Duty Use: NCF 2968 V Bearing
NCF 2968 V Bearing excels in mining equipment, where its robust design withstands extreme loads and harsh conditions. The absence of a cage allows for maximum roller count, enhancing load capacity and longevity.
Automotive vs Aerospace: Applications of NCF 2968 V Bearing
In automotive applications, NCF 2968 V Bearing is found in large trucks and buses, supporting drivetrain components. For aerospace, its precision and reliability make it suitable for ground support equipment, though not for flight-critical systems.
Practical Applications of NCF 2968 V Bearing
NCF 2968 V Bearing is ideal for construction machinery, such as cranes and excavators, where its high static radial load capacity ensures stability. The grease or oil lubrication options adapt to various operating conditions.
