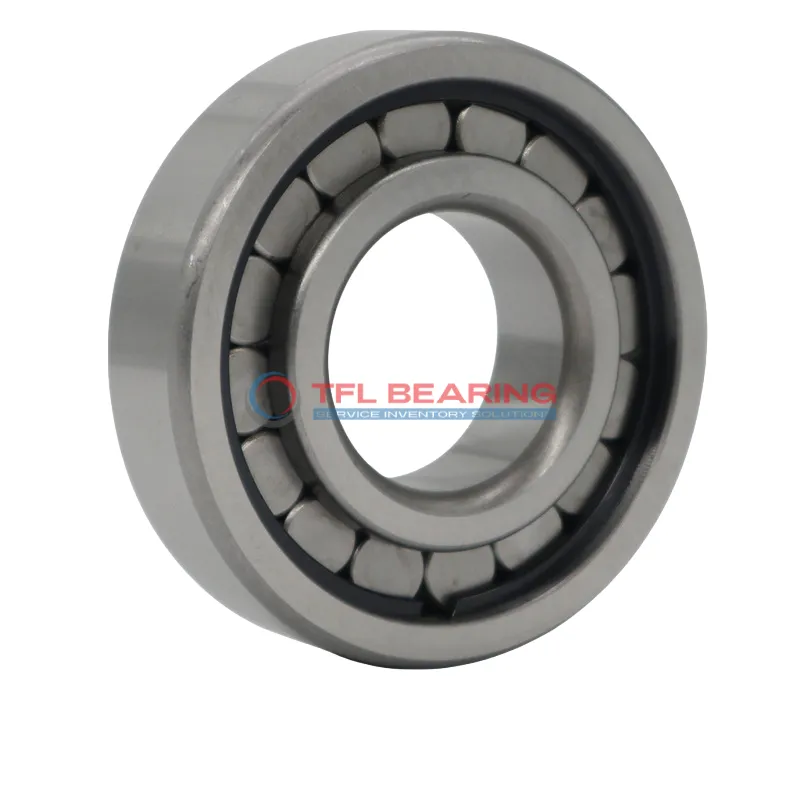

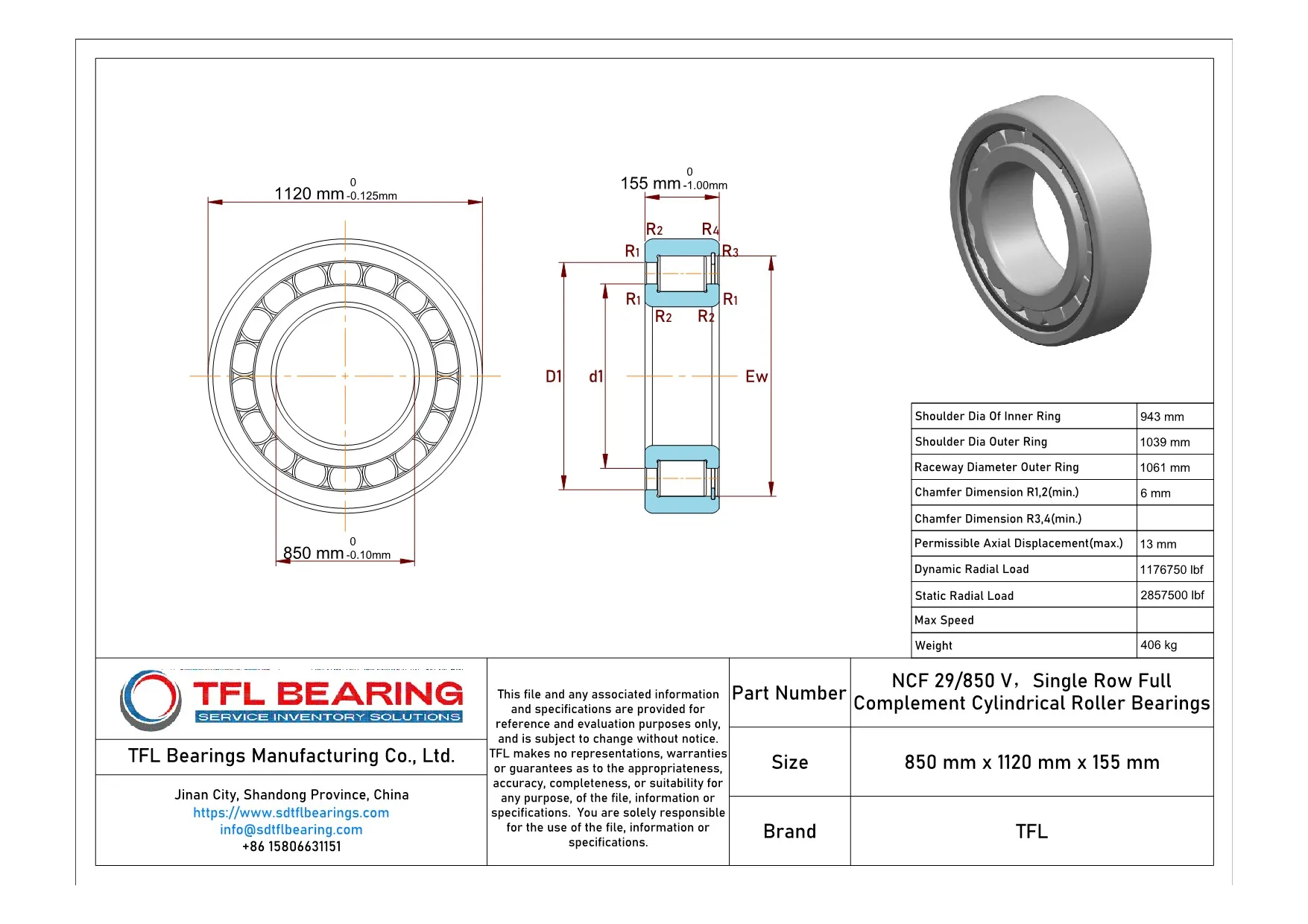

The NCF 29/850 V is a single row full complement cylindrical roller bearing with a large 850mm bore and 1120mm outer diameter, built from tough chrome steel. It handles heavy combined loads, with a dynamic radial load capacity of 1,176,750 lbf.
Its full complement design (no cage) maximises roller count for higher load capacity, while the open seal allows flexible lubrication with grease or oil. The bearing operates smoothly in temperatures from -30°C to 110°C.
With a 155mm width and 406kg weight, this robust unit suits heavy industrial applications like large gearboxes or rolling mills. It’s interchangeable with SKF bearings for easy replacement.
Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments where high radial and axial loads are present. The 6mm chamfer ensures easier installation.
"*" indicates required fields
Performance Features of NCF 29/850 V Bearing
NCF 29/850 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,176,750 lbf, making it suitable for heavy-duty applications.
The full complement of rollers enhances load distribution, improving durability and performance.
With a width of 155 mm, it provides stability in demanding industrial environments.
NCF 29/850 V Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, ensuring smooth operation.
Industrial Uses of NCF 29/850 V Bearing
NCF 29/850 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.
Where Is NCF 29/850 V Bearing Used?
You’ll find NCF 29/850 V Bearing in wind turbine systems, where its robust construction supports the main shaft under varying loads. Its chrome steel rollers provide reliable performance even in harsh outdoor environments.
Built for Heavy-Duty Use: NCF 29/850 V Bearing
NCF 29/850 V Bearing excels in mining equipment, such as crushers and conveyors, thanks to its ability to withstand combined loads. The large bore size makes it ideal for applications requiring substantial shaft support.
Automotive vs Aerospace: Applications of NCF 29/850 V Bearing
In automotive testing rigs, NCF 29/850 V Bearing handles high radial loads during durability tests. While not typically used in aerospace, its precision and strength make it suitable for ground support equipment.
Key Fields for NCF 29/850 V Bearing
NCF 29/850 V Bearing is a go-to choice for steel production lines, where its full complement rollers manage extreme loads. The grease or oil lubrication options ensure adaptability to different operating conditions.
