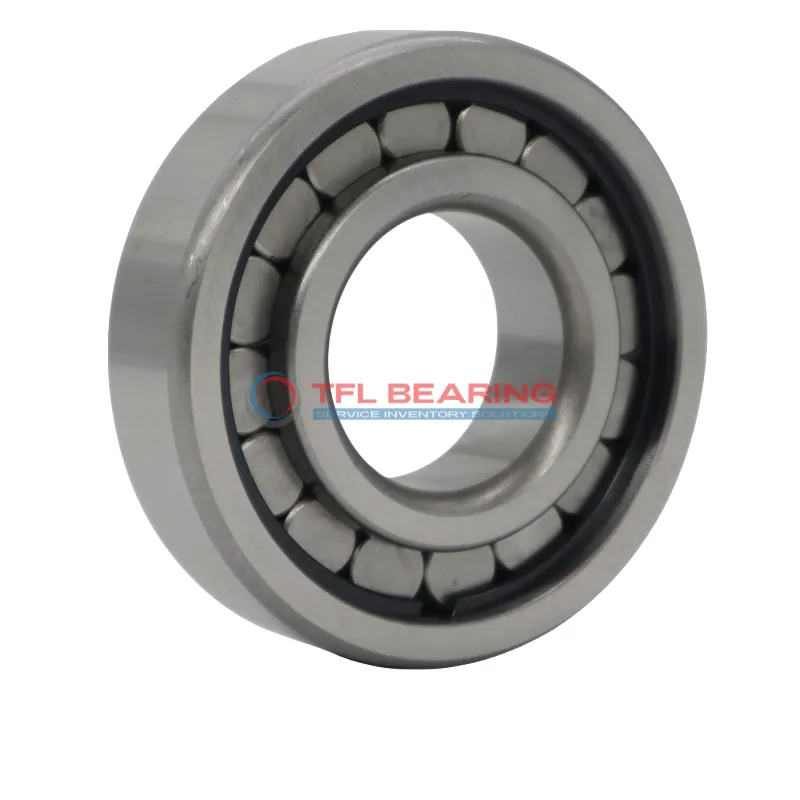

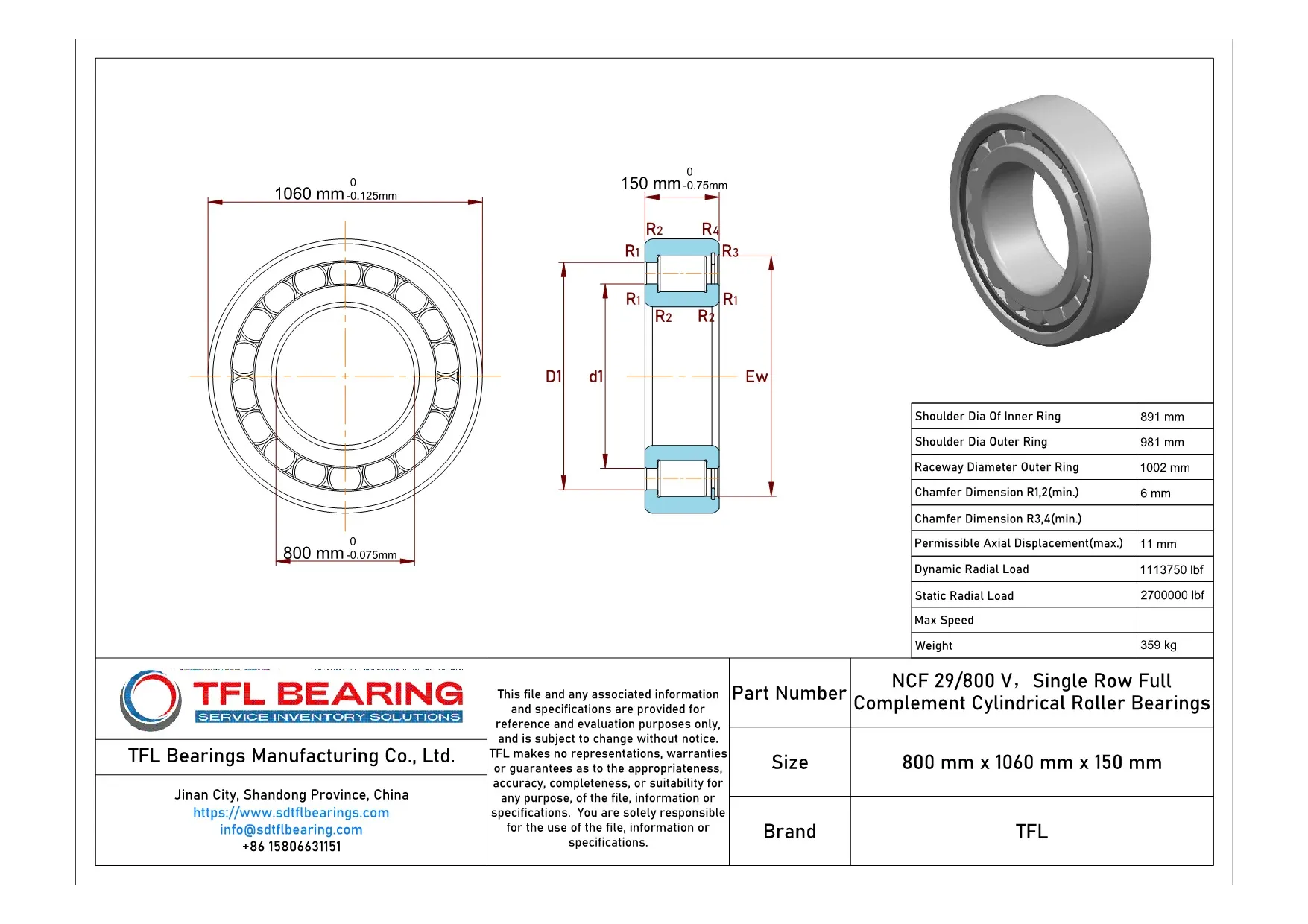

The NCF 29/800 V is a large single-row cylindrical roller bearing with an 800mm bore and 1060mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1,113,750 lbf and works well in temperatures from -30°C to 110°C.
Its full complement design (no cage) maximises load capacity, while the open seal allows flexible lubrication with grease or oil. The bearing permits axial displacement up to 11mm, accommodating slight misalignments.
This model is interchangeable with SKF bearings, making it a practical replacement option. Suited for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.
Weighing 359kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
How Does NCF 29/800 V Bearing Handle Combined Loads?
NCF 29/800 V Bearing is built with a full complement of chrome steel rollers, offering high load capacity for combined radial and axial forces.
Its dynamic radial load rating reaches 1,113,750 lbf, making it suitable for heavy-duty industrial applications.
The open design allows for easy lubrication with grease or oil, ensuring smooth operation in various conditions.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.
Structural Advantages of NCF 29/800 V Bearing
NCF 29/800 V Bearing features a single-row cylindrical roller design, optimised for space-saving installations.
The chrome steel construction enhances durability and resistance to wear under heavy loads.
Its precise bore and outer diameter tolerances ensure a secure fit in demanding applications.
The absence of a cage allows for maximum roller count, increasing load capacity.
Why Choose NCF 29/800 V Bearing for Heavy-Duty Applications?
NCF 29/800 V Bearing’s full complement design provides superior load distribution across all rollers.
With a static radial load capacity of 2,700,000 lbf, it handles extreme pressures without deformation.
The chrome steel material maintains performance in temperatures from -30° to 110°C.
Its open structure simplifies maintenance and relubrication processes.
Industrial Uses of NCF 29/800 V Bearing
NCF 29/800 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
What Makes NCF 29/800 V Bearing a Preferred Choice?
In wind turbine applications, NCF 29/800 V Bearing provides reliable performance due to its ability to withstand combined loads and harsh weather conditions. Its open design allows for easy lubrication, extending service life.
Built for Heavy-Duty Use: NCF 29/800 V Bearing
NCF 29/800 V Bearing excels in mining equipment, where its robust construction and high static radial load capacity are essential. The large bore size makes it suitable for heavy shafts commonly found in this industry.
Automotive vs Aerospace: Applications of NCF 29/800 V Bearing
While NCF 29/800 V Bearing is too large for most automotive uses, it finds its place in aerospace ground support equipment, such as aircraft tow tractors. Its high load capacity ensures smooth operation under heavy stress.
Key Fields for NCF 29/800 V Bearing
NCF 29/800 V Bearing is ideal for paper manufacturing machinery, where its precision and strength are crucial for consistent performance. The grease or oil lubrication options provide flexibility for different operating conditions.
