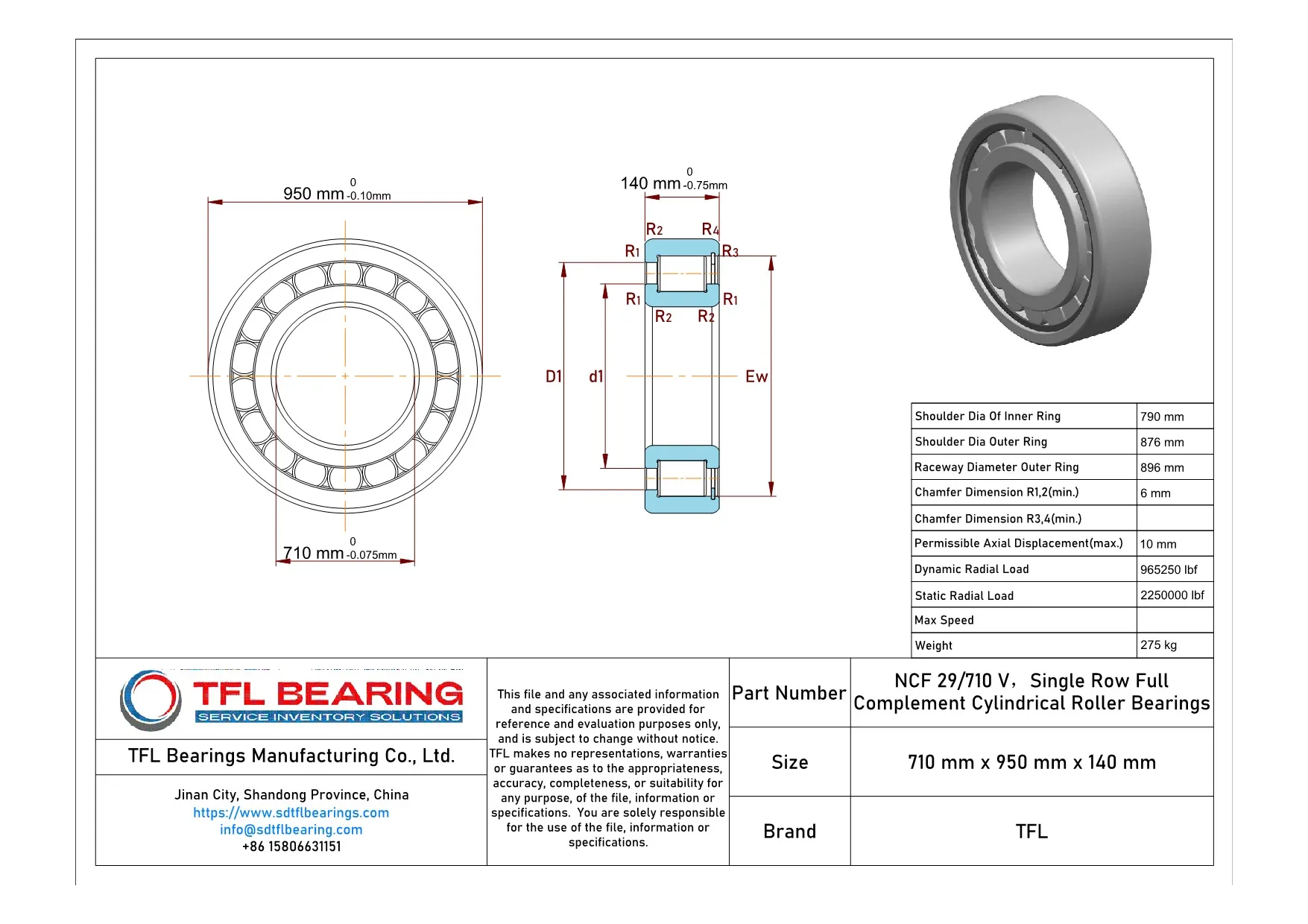

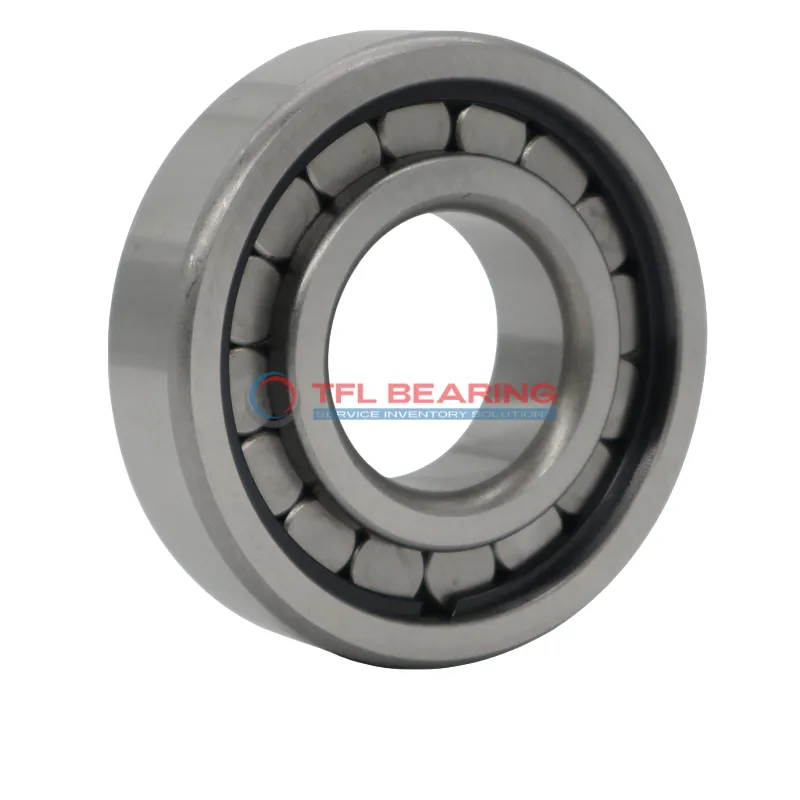

The NCF 29/710 V is a large single-row cylindrical roller bearing with a 710mm bore and 950mm outer diameter, built from sturdy chrome steel. It handles heavy combined loads, supporting up to 965,250 lbf dynamically and 2,250,000 lbf statically.
Its full-complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates smoothly in temperatures from -30°C to 110°C.
With a 140mm width and chamfered edges, it fits securely in industrial setups. Ideal for heavy machinery like rolling mills or large gearboxes where high radial and axial loads are present.
Weighing 275kg, it’s built for durability. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Performance Features of NCF 29/710 V Bearing
NCF 29/710 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 965,250 lbf, making it suitable for heavy-duty applications.
The full complement of rollers enhances load distribution, improving durability and performance.
With a permissible axial displacement of 10 mm, it accommodates slight misalignments during operation.
NCF 29/710 V Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth functioning.
The precise tolerances in bore and outer diameters ensure a secure fit in various applications.
Weighing 275 kg, it is robust yet designed for reliable performance in demanding conditions.
Industrial Uses of NCF 29/710 V Bearing
NCF 29/710 V Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
What Makes NCF 29/710 V Bearing a Preferred Choice?
With its chrome steel construction, NCF 29/710 V Bearing offers durability in applications like wind turbine gearboxes, where reliability is key. The absence of a cage means more rollers can be fitted, boosting load capacity without compromising performance.
Built for Heavy-Duty Use: NCF 29/710 V Bearing
NCF 29/710 V Bearing excels in mining equipment, supporting massive loads in crushers and conveyors. Its metric sizing ensures compatibility with European-designed machinery, making it a versatile option for industrial settings.
Automotive vs Aerospace: Applications of NCF 29/710 V Bearing
In automotive testing rigs, NCF 29/710 V Bearing handles combined loads with ease, thanks to its robust design. While less common in aerospace, it’s valued in ground support equipment for its reliability under stress.
Key Fields for NCF 29/710 V Bearing
NCF 29/710 V Bearing is ideal for paper manufacturing machines, where its high static load capacity ensures smooth operation. The grease or oil lubrication options make it adaptable to different environmental conditions.
