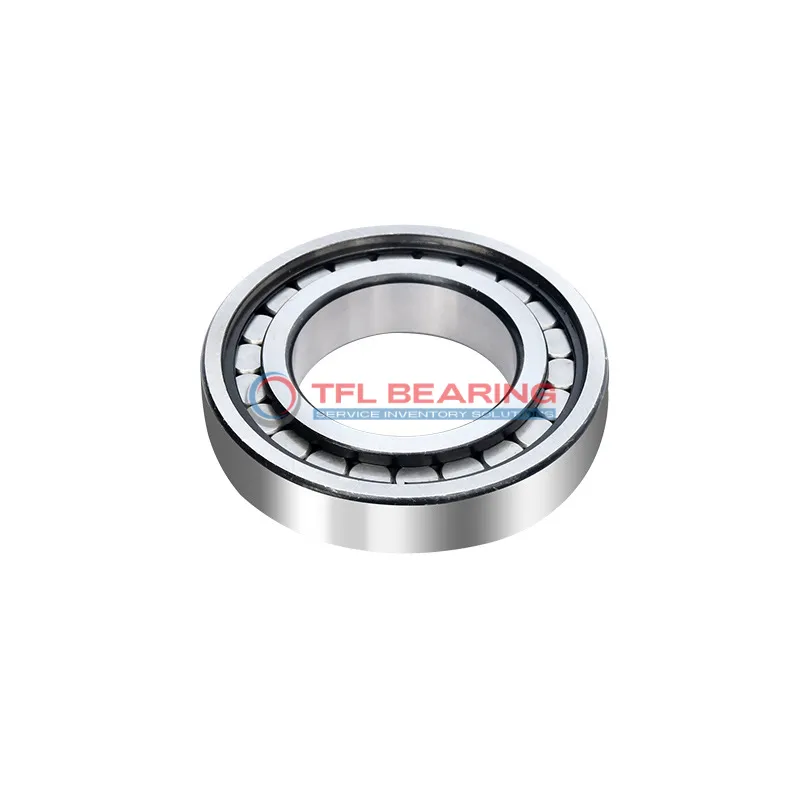

The NCF 28/950 V is a large single-row cylindrical roller bearing with a 950mm bore and 1150mm outer diameter, built for heavy-duty applications. Made from chrome steel, it handles combined loads up to 767,250 lbf and operates in temperatures from -30°C to 110°C.
Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing permits axial displacement up to 12mm, accommodating slight misalignments.
This model is interchangeable with SKF bearings, ideal for industrial machinery like large gearboxes or rolling mills. Weighing 240kg, it’s built to last in demanding environments while meeting RoHS and REACH standards.
"*" indicates required fields
Performance Features of NCF 28/950 V Bearing
NCF 28/950 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 767,250 lbf, making it suitable for heavy-duty applications.
The full complement of rollers enhances load distribution, improving durability and performance.
With a width of 118 mm, it provides stability in various industrial settings.
NCF 28/950 V Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth operation.

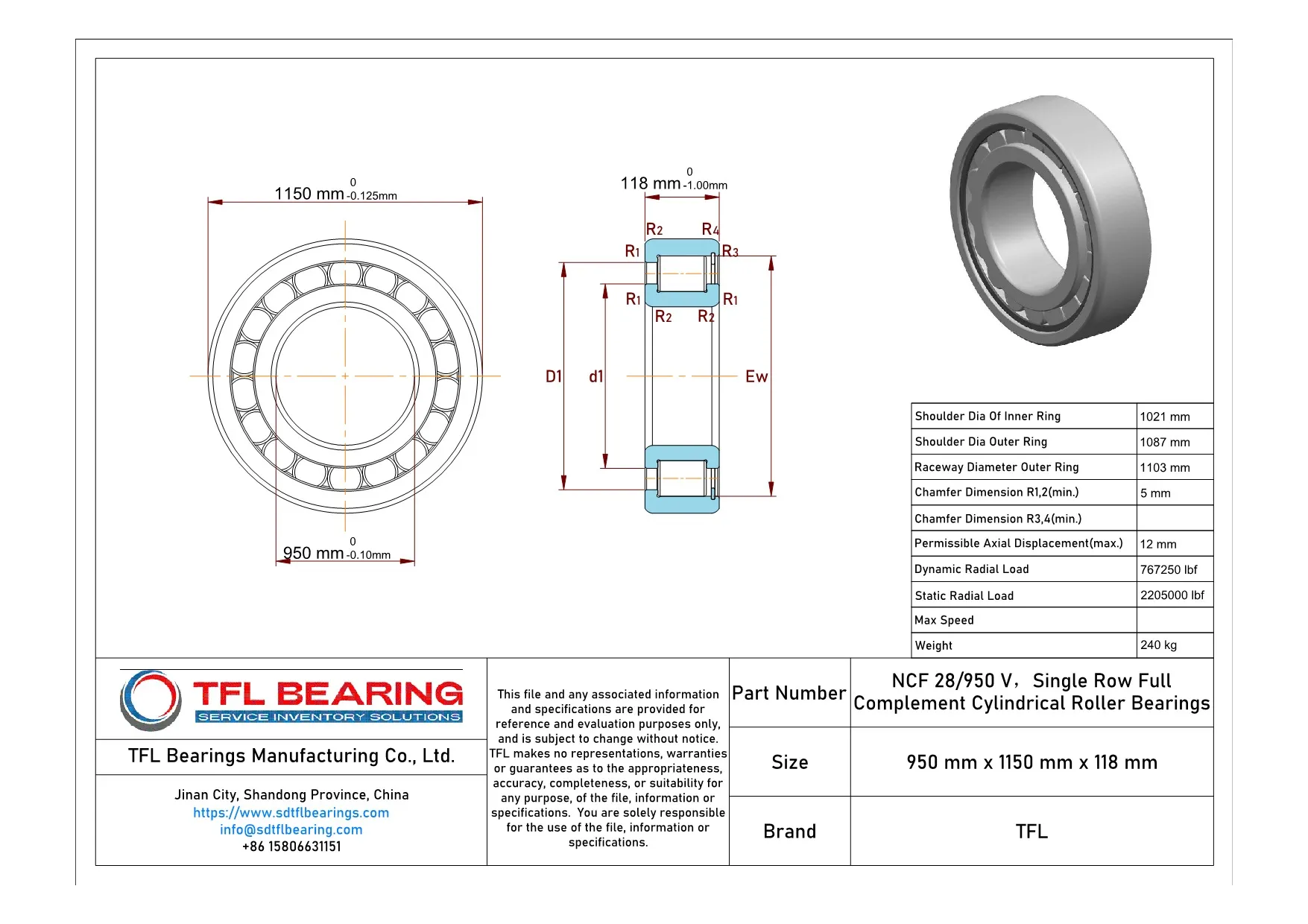

The bearing’s chamfer dimensions and shoulder diameters are precision-engineered for optimal fit.
This design reduces stress concentrations, extending the service life of the bearing.
Industrial Uses of NCF 28/950 V Bearing
NCF 28/950 V Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
What Makes NCF 28/950 V Bearing a Preferred Choice?
In wind turbine applications, NCF 28/950 V Bearing supports the main shaft, providing reliable performance under combined loads. Its open design allows for easy lubrication, extending service life in harsh conditions.
Built for Heavy-Duty Use: NCF 28/950 V Bearing
NCF 28/950 V Bearing excels in mining equipment, where its large bore and robust construction withstand extreme loads. The absence of a cage maximizes roller count, enhancing load capacity and reliability.
Automotive vs Aerospace: Applications of NCF 28/950 V Bearing
While NCF 28/950 V Bearing is too large for most automotive uses, it finds its place in aerospace ground support equipment, handling heavy loads with precision. Its metric sizing ensures compatibility with international standards.
Key Fields for NCF 28/950 V Bearing
NCF 28/950 V Bearing is ideal for steel production machinery, where its high static radial load capacity ensures stability. The grease or oil lubrication options make it adaptable to various operational needs.
