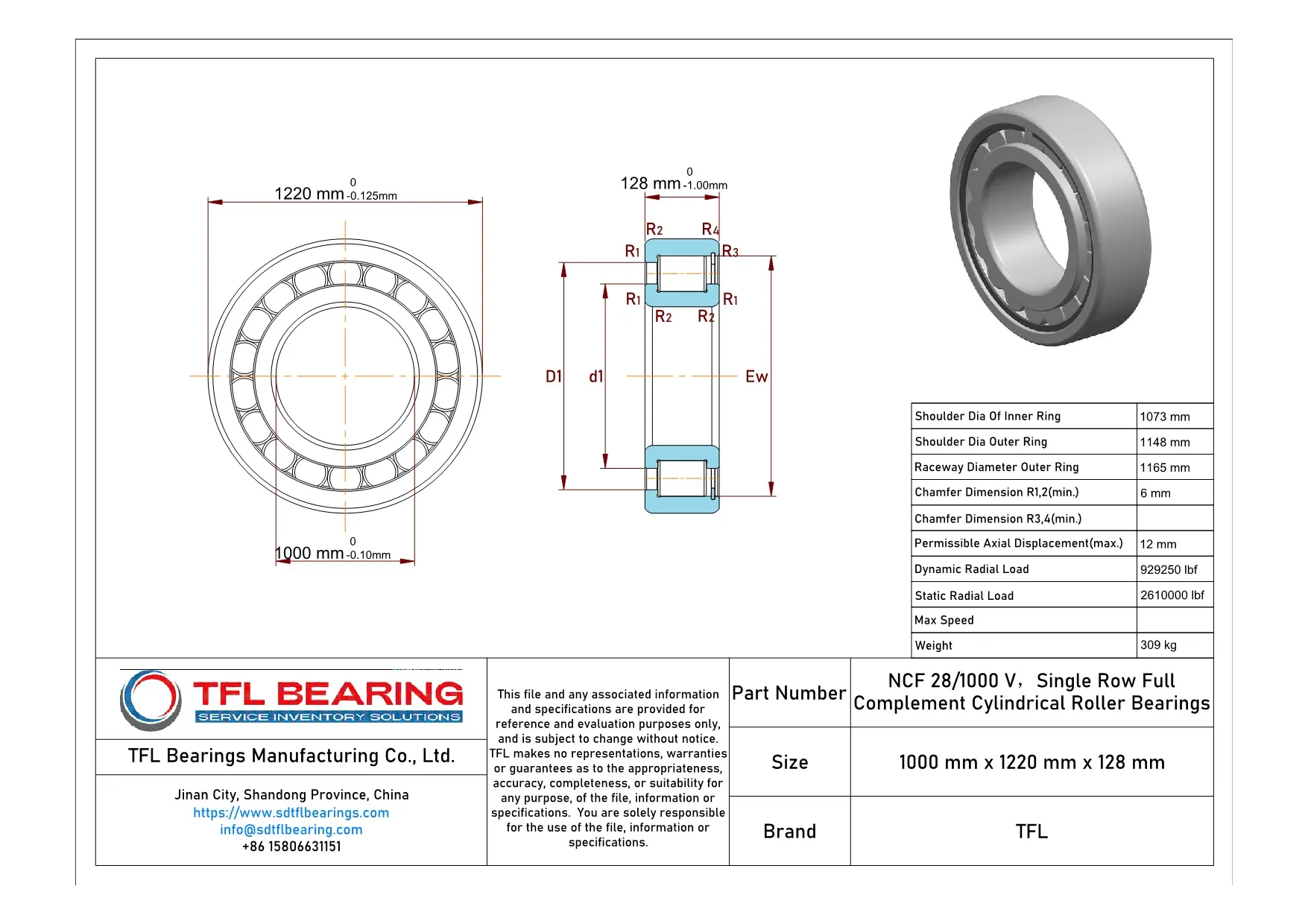

The NCF 28/1000 V is a large single-row cylindrical roller bearing with a 1000mm bore and 1220mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 929,250 lbf and operates in temperatures from -30°C to 110°C.
Its full complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing permits axial displacement up to 12mm, offering flexibility in demanding setups.
This heavy-duty model weighs 309kg and is interchangeable with SKF bearings. Ideal for industrial applications like large gearboxes or heavy machinery where high radial loads are present.
Compliant with RoHS and REACH standards, it’s a reliable choice for engineers needing robust performance in challenging environments.
"*" indicates required fields
Structural Advantages of NCF 28/1000 V Bearing
NCF 28/1000 V Bearing features a full complement of cylindrical rollers, enhancing its load-carrying capacity without a cage.
This design allows for higher radial load handling, with a dynamic radial load capacity of 929,250 lbf.
The chrome steel construction of NCF 28/1000 V Bearing ensures durability and resistance to wear in demanding conditions.
Its open seal type facilitates easy lubrication with grease or oil, maintaining smooth operation.
NCF 28/1000 V Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for various industrial applications.
The precise tolerances in bore and outer diameters ensure a secure fit and reliable performance.
With a weight of 309 kg, NCF 28/1000 V Bearing is robust yet engineered for combined load directions.
Its permissible axial displacement of 12 mm accommodates slight misalignments during operation.
Industrial Uses of NCF 28/1000 V Bearing
NCF 28/1000 V Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.
Where Is NCF 28/1000 V Bearing Used?
In wind turbines, NCF 28/1000 V Bearing supports the main shaft, providing stability under combined loads. Its large bore size and metric measurements make it ideal for renewable energy applications.
Built for Heavy-Duty Use: NCF 28/1000 V Bearing
NCF 28/1000 V Bearing excels in mining equipment, such as crushers and conveyors, where its robust design withstands extreme conditions. The open seal type allows for easy lubrication, extending service life.
Automotive vs Aerospace: Applications of NCF 28/1000 V Bearing
While NCF 28/1000 V Bearing is too large for most automotive uses, it’s perfect for aerospace ground support equipment. Its high static radial load capacity ensures reliability in heavy lifting applications.
Practical Applications of NCF 28/1000 V Bearing
NCF 28/1000 V Bearing is a go-to choice for paper manufacturing machines, where its precision and strength handle continuous operation. The grease or oil lubrication options adapt to various operational needs.
