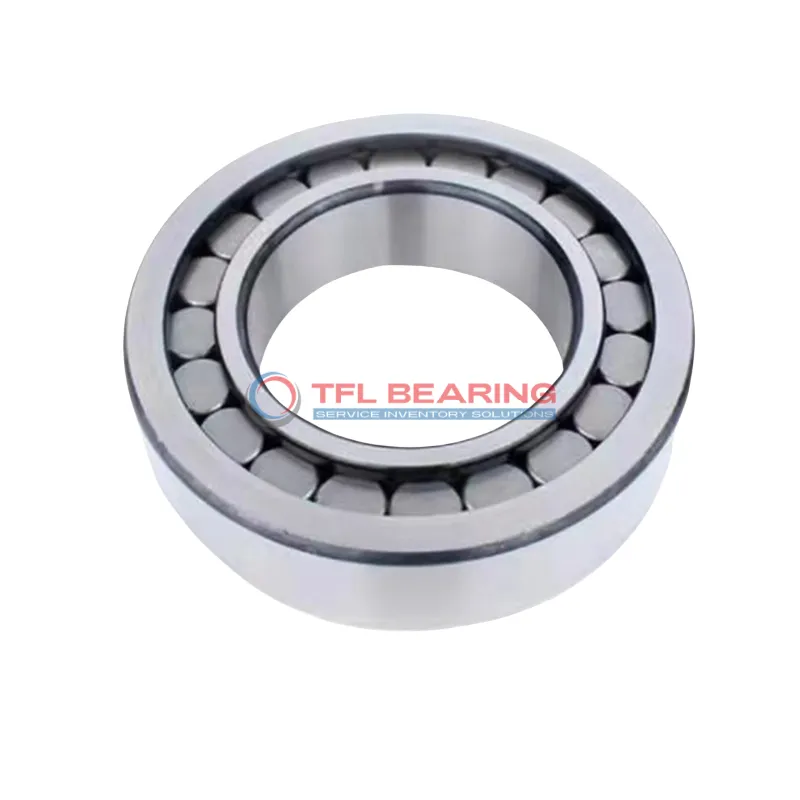

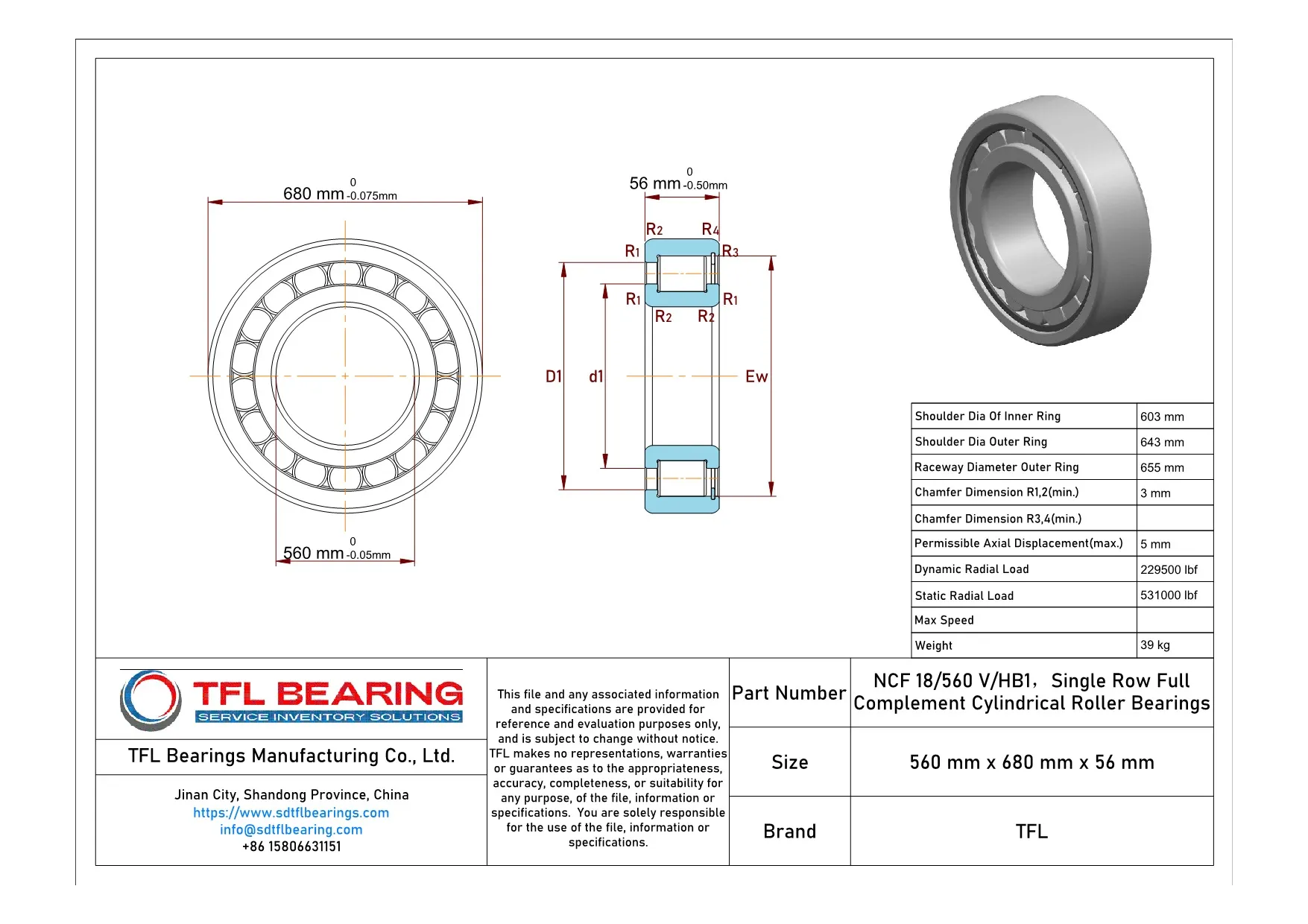

The NCF 18/560 V/HB1 is a single row full complement cylindrical roller bearing with a 560mm bore and 680mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 229500 lbf and works well in temperatures from -30°C to 110°C.
Its full complement design (no cage) allows for higher load capacity, while the open seal type simplifies maintenance. The bearing can be lubricated with grease or oil, offering flexibility for different setups.
With a width of 56mm, it’s compact for its size and fits applications where space is limited. The inner ring design ensures stability under heavy radial and axial loads.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery, industrial gearboxes, or large equipment where durability and high load capacity are key.
Weighing 39kg, it’s robust yet manageable for installation. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of NCF 18/560 V/HB1 Bearing
NCF 18/560 V/HB1 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 229,500 lbf, making it suitable for heavy-duty applications.
The full complement design eliminates the need for a cage, allowing for maximum roller count and load distribution.
This enhances durability and reduces wear, even under extreme conditions.
With a permissible axial displacement of 5 mm, NCF 18/560 V/HB1 Bearing accommodates slight misalignments.
Its open seal type simplifies lubrication, whether using grease or oil.
Operating within a temperature range of -30° to 110°C, NCF 18/560 V/HB1 Bearing performs reliably in various environments.
The precise tolerances ensure smooth operation and long service life.
Industrial Uses of NCF 18/560 V/HB1 Bearing
NCF 18/560 V/HB1 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.
Where Is NCF 18/560 V/HB1 Bearing Used?
In wind turbines, NCF 18/560 V/HB1 Bearing supports the main shaft, providing stability under combined loads. Its open design allows for easy lubrication, which is essential for long-term performance in remote locations.
Built for Heavy-Duty Use: NCF 18/560 V/HB1 Bearing
NCF 18/560 V/HB1 Bearing excels in mining equipment, such as crushers and conveyors, where its robust design withstands extreme conditions. The absence of a cage allows for more rollers, enhancing load capacity.
Automotive vs Aerospace: Applications of NCF 18/560 V/HB1 Bearing
While NCF 18/560 V/HB1 Bearing is too large for most automotive uses, it’s ideal for aerospace ground support equipment like aircraft tugs. Its high static radial load capacity ensures reliability in heavy lifting applications.
Practical Applications of NCF 18/560 V/HB1 Bearing
NCF 18/560 V/HB1 Bearing is a go-to choice for marine propulsion systems, where its grease or oil lubrication options adapt to various operating conditions. The wide temperature range makes it suitable for both cold and warm climates.
